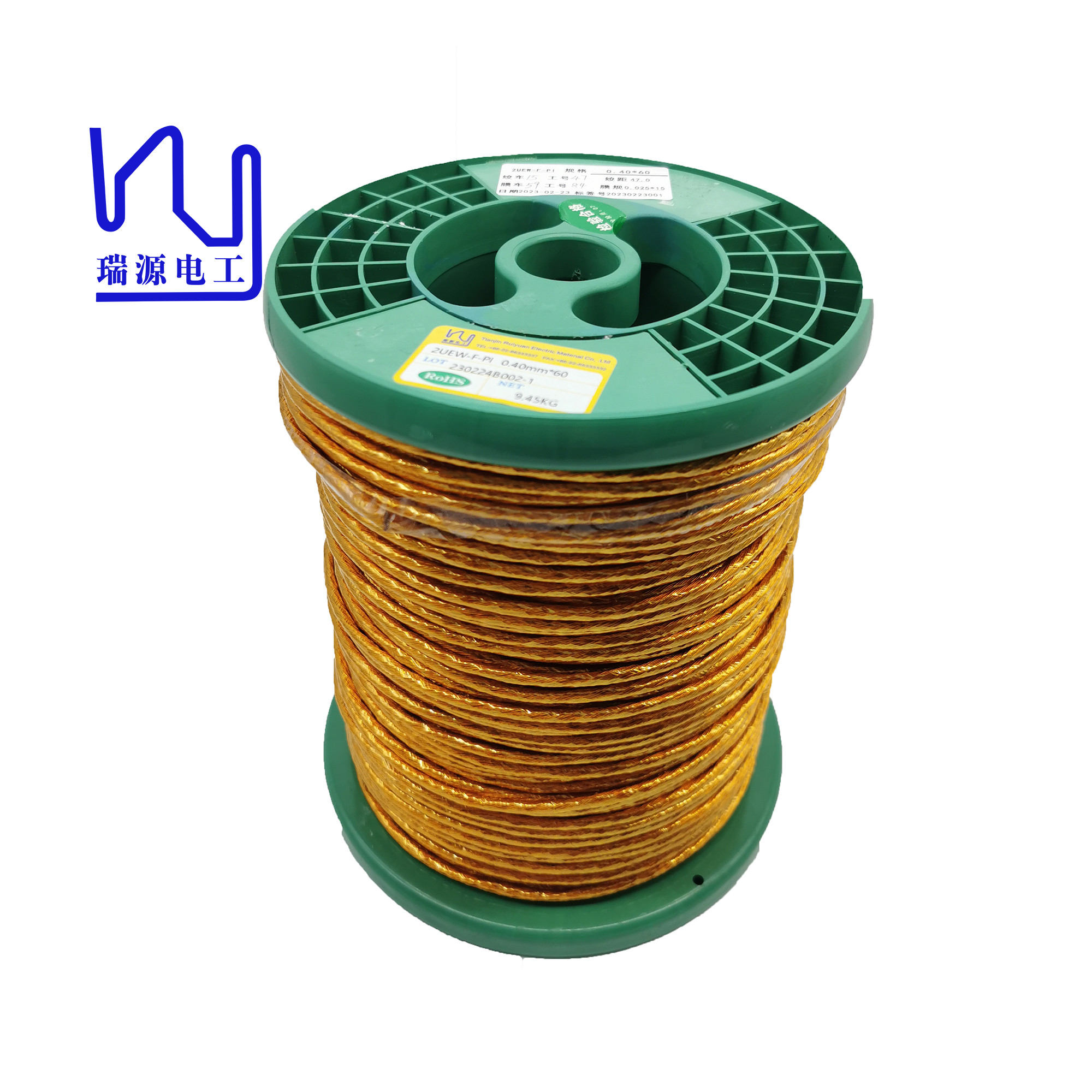

0.4mm 0.5mm Pi Taped Copper Wire With Enamel For Transformer / Motor

0.4mm 0.5mm Pi Taped Copper Wire With Enamel For Transformer / Motor
0.4mm 0.5mm Pi Taped Copper Wire With Enamel For Transformer / Motor
0.4mm 0.5mm Pi Taped Copper Wire With Enamel For Transformer / Motor
Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: Copper litz wire
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Get Best Price Contact Now
Detail Information
Name: Custom 0.4mm 0.5mm PI Taped Copper Litz Wire For Transformer/motor Certification: ISO9001/ISO14001/UL/SGS
Diameter: 0.4mm Cover Material: PI
Conductor: Copper Insulation: Enamel
Rated Temperature: 155 Key Word: Custom 0.4mm 0.5mm PI Taped Copper Litz Wire For Transformer/motor
No. Of Strands: 60
Highlight:

0.5mm copper wire with enamel

,

0.4 mm copper wire with enamel

,

pi taped awg enameled copper wire

Product Description

Custom 0.4mm 0.5mm PI taped copper litz wire for transformer/motor



Taped litz wire has excellent insulation performance, wear resistance and high temperature resistance, and has been widely used in the electronics industry.



Taped litz wire is a kind of wire made of enamelled round copper wire after twisting, and then wrapped with a layer of special material-polyimide film. It is mainly used for electrical connection or signal transmission between the internal or external contacts of electronic components.



Test report for litz wire served with tape Spec: 2UEW-F-PI 0.4mm*60

Characteristics

Technical requests

Test Results

Outer diameter of single wire(mm)

0.422-0.439

0.428-0.438

Conductor diameter(mm)

0.40±0.005

0.397-0.399

Overall dimension(mm)

Min.4.74

4.21-4.51

No. Of strands

60

60

Pitch(mm)

47±3

√

Maximum Resistance(Ω/m 20℃)

0.002415

0.00227

Dielectric strength(V)

Min.6000

13500

Tape(overlap %)

Min.50

53

Name

Custom 0.4mm 0.5mm PI taped copper litz wire for transformer/motor

Key word

Mylar litz wire

Insulationh

Enamel, polyster cover

Thermal rating

155degree

Diameter of the enameled copper wire

0.05mm

Number of strands

30

Type

Custom 0.4mm 0.5mm PI taped copper litz wire for transformer/motor

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

0.4mm 0.5mm Pi Taped Copper Wire With Enamel For Transformer / Motor 0
0.4mm 0.5mm Pi Taped Copper Wire With Enamel For Transformer / Motor 1
0.4mm 0.5mm Pi Taped Copper Wire With Enamel For Transformer / Motor 2
0.4mm 0.5mm Pi Taped Copper Wire With Enamel For Transformer / Motor 3

0.4mm 0.5mm Pi Taped Copper Wire With Enamel For Transformer / Motor 4
