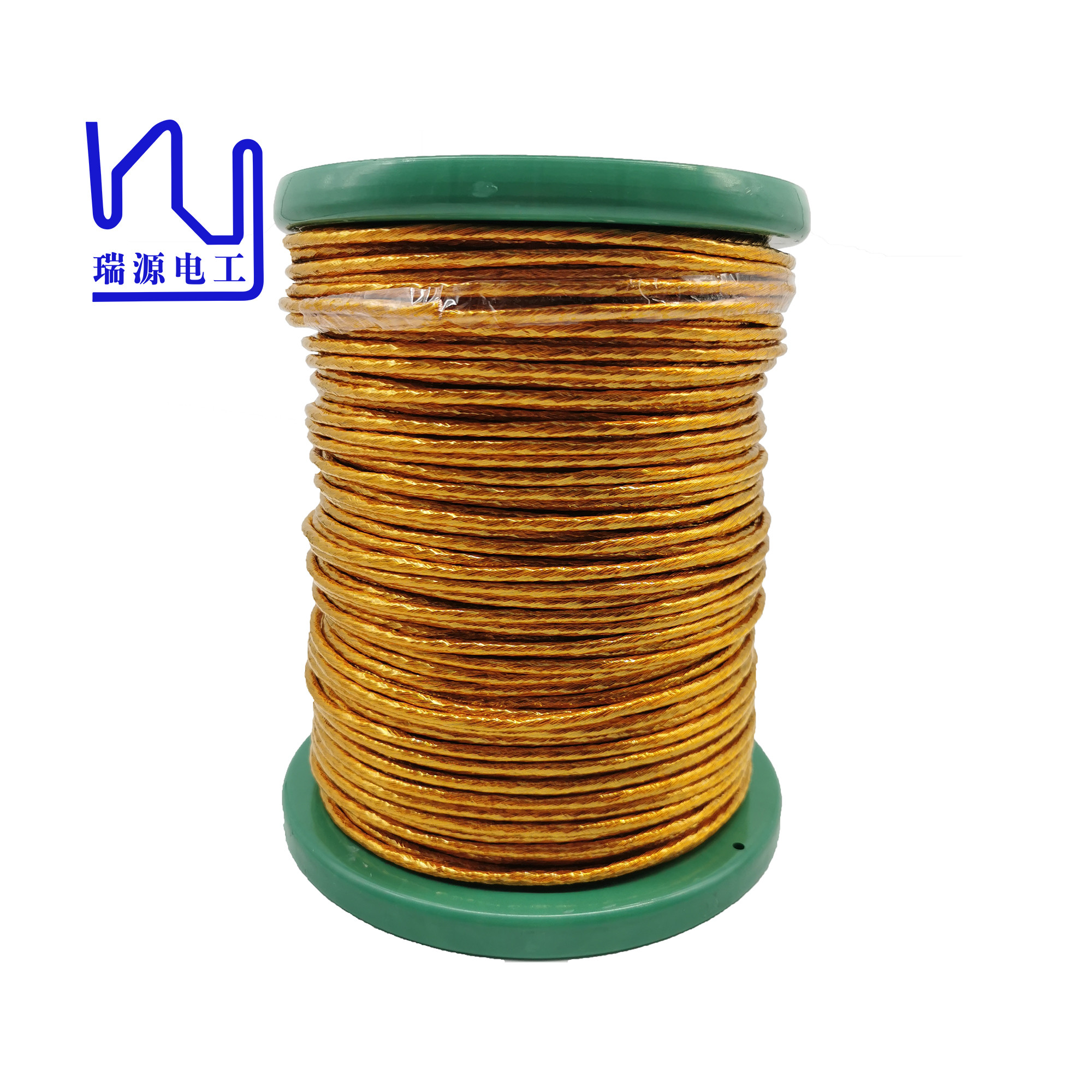

Name: High Frequency Taped Copper Litz Wire 60*0.4mm Polyimide Film Insulated
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Copper litz wire
Price: 24.06 USD
Availability: InStock

High Frequency Taped Copper Litz Wire 60*0.4mm Polyimide Film Insulated

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	High Frequency Taped Litz Wire 60*0.4mm Polyimide Film Copper Insulated Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.4mm	Cover Material:	PI
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155	Key Word:	High Frequency Taped Litz Wire 60*0.4mm Polyimide Film Copper Insulated Wire
No. Of Strands:	60
Highlight:	60x0.4 mm copper litz wire , polyimide film copper litz wire , insulated 0.4 mm copper wire

Product Description

High frequency taped litz wire 60*0.4mm polyimide film copper insulated wire

Taped litz wire is a kind of wire made of enamelled round copper wire after twisting, and then wrapped with a layer of special material-polyimide film. It is mainly used for electrical connection or signal transmission between the internal or external contacts of electronic components.

Test report for litz wire served with tape Spec: 2UEW-F-PI 0.4mm*60
Characteristics	Technical requests	Test Results
Outer diameter of single wire(mm)	0.422-0.439	0.428-0.438
Conductor diameter(mm)	0.40±0.005	0.397-0.399
Overall dimension(mm)	Min.4.74	4.21-4.51
No. Of strands	60	60
Pitch(mm)	47±3	√
Maximum Resistance(Ω/m 20℃)	0.002415	0.00227
Dielectric strength(V)	Min.6000	13500
Tape(overlap %)	Min.50	53

Name	High frequency taped litz wire 60*0.4mm polyimide film copper insulated wire
Key word	Mylar litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.4mm
Number of strands	60
Type	High frequency taped litz wire 60*0.4mm polyimide film copper insulated wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

High Frequency Taped Copper Litz Wire 60*0.4mm Polyimide Film Insulated 0
