Detail Information

Name:	Electrical Vehicle Use 2UEW-F-PI 1700 Strands High Breakdown Voltage Mylar Taped Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.05mm	Cover Material:	PI
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	180	Key Word:	Electrical Vehicle Use 2UEW-F-PI 1700 Strands High Breakdown Voltage Mylar Taped Litz Wire
No. Of Strands:	1740
Highlight:	0.05 mm enamel coil wire , 20 gauge enamel coil wire , litz 20 gauge enameled copper wire

Product Description

Electrical Vehicle Use 2UEW-F-PI 1700 strands High Breakdown Voltage Mylar Taped Litz Wire

Due to the wide application of film-covered wires and the huge market demand, many companies have started to put them into production, but not all film-covered wires are of good quality.

Therefore, when purchasing film-covered wires, consumers must choose high-quality brands to ensure product reliability and service life. In short, film-covered wire is a high-performance wire widely used in modern electronic products, and its stability and reliability are recognized as excellent quality in the industry. Choosing film-covered wire will provide long-term and stable use guarantee for your products

Characteristics	Technical requests	Test Results
Outer diameter of single wire(mm)	0.056-0.069	0.058-0.062
Conductor diameter(mm)	0.05±0.003	0.048-0.050
Width(mm)	3.3-3.48
Thickness(mm)	2.14-2.26
No. Of strands	1740	1740
Pitch(mm)	60±3	√
Maximum Resistance(Ω/m 20℃)	0.005885	0.005335
Dielectric strength(V)	6000	13500
Solderability	390±5℃, 12s	√
Tape(overlap %)	Min.50	54

Name	Electrical Vehicle Use 2UEW-F-PI 1700 strands High Breakdown Voltage Mylar Taped Litz Wire
Key word	Mylar litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.05mm
Number of strands	1740
Type	Electrical Vehicle Use 2UEW-F-PI 1700 strands High Breakdown Voltage Mylar Taped Litz Wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Mylar Taped Litz Enamel Coil Wire 20 Gauge 0.05 mm 0

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

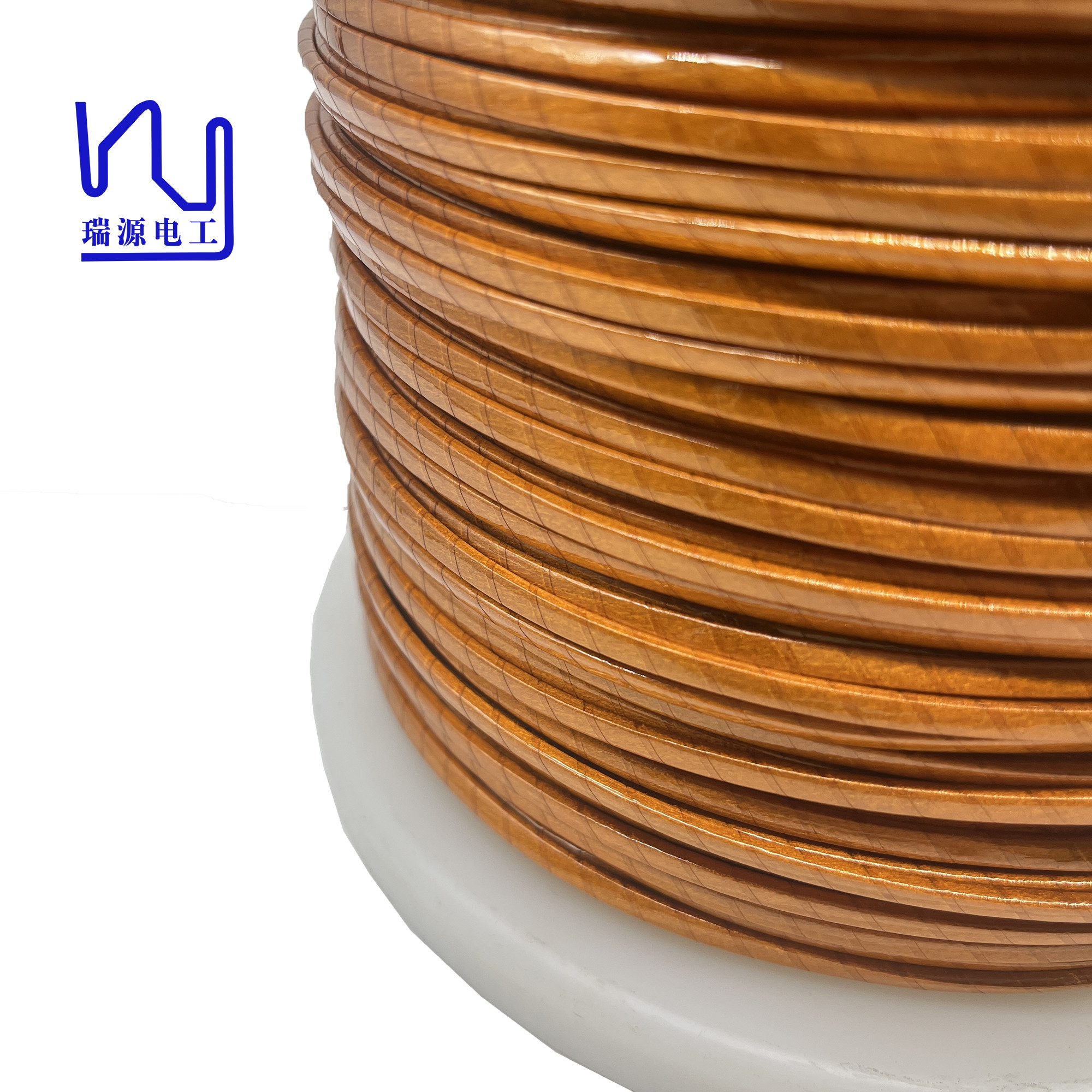

Mylar Taped Litz Enamel Coil Wire 20 Gauge 0.05 mm

0.05 mm enamel coil wire

20 gauge enamel coil wire

litz 20 gauge enameled copper wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
