| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | Custom Multi Strands Copper Standed Wire PI Taped Copper Litz Wire |
|---|---|---|---|
| Diameter: | 0.05mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 180 | Key Word: | Custom Multi Strands Copper Standed Wire PI Taped Copper Litz Wire |
| No. Of Strands: | 1740 | ||
| High Light: | 0.05mm multi strand copper wire,0.05mm copper litz wire,pi taped multi strand copper wire |
||

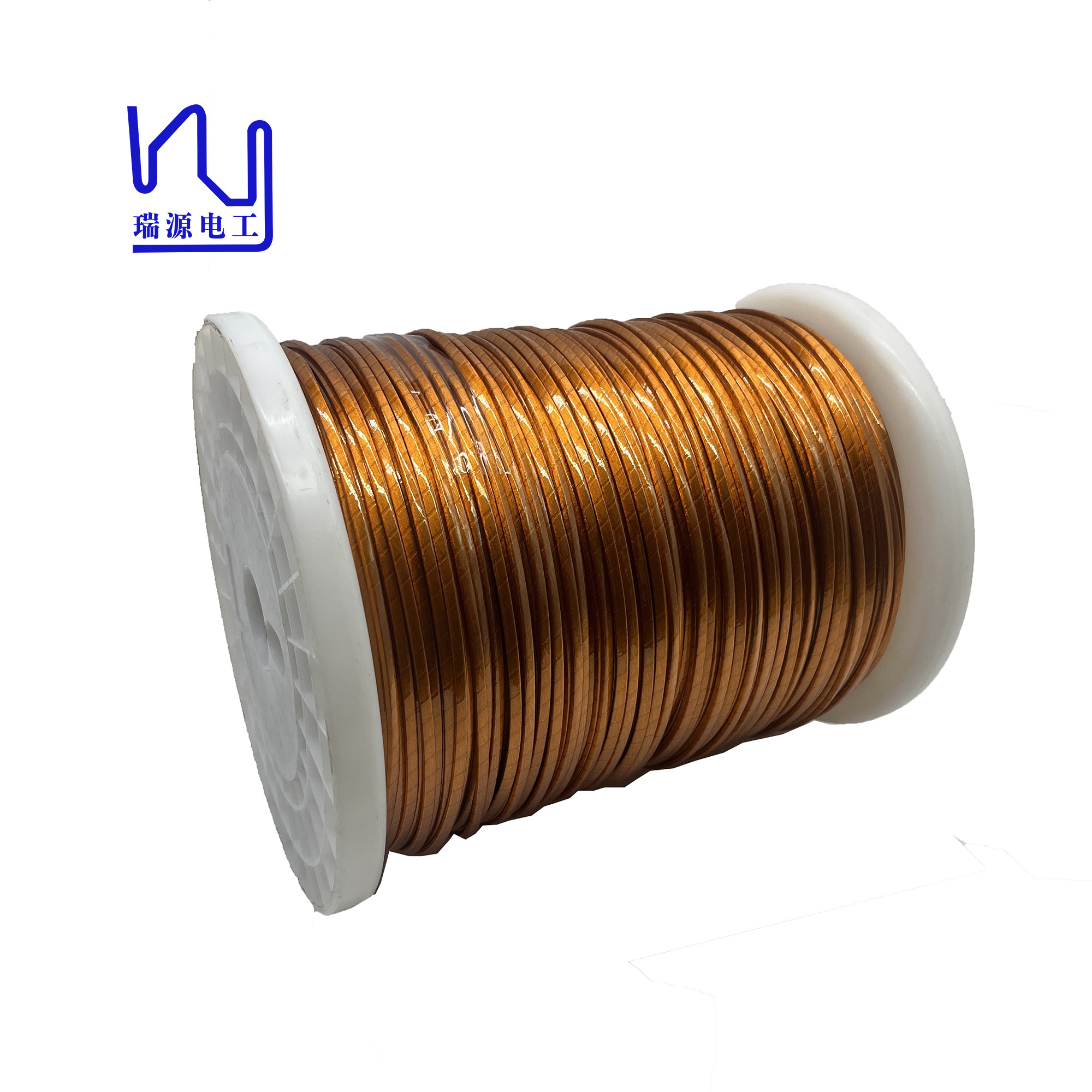

Custom multi strands copper standed wire PI taped copper litz wire
profiled litz wire is an excellent wire product with excellent electrical properties and reliable mechanical properties.
We support customization, and can provide customers with support and guarantee in the whole process from design to manufacturing.
Characteristics | Technical requests | Test Results |
Outer diameter of single wire(mm) | 0.056-0.069 | 0.058-0.062 |
Conductor diameter(mm) | 0.05±0.003 | 0.048-0.050 |
Width(mm) | 3.3-3.48 | |
Thickness(mm) | 2.14-2.26 | |
No. Of strands | 1740 | 1740 |
Pitch(mm) | 60±3 | √ |
Maximum Resistance(Ω/m 20℃) | 0.005885 | 0.005335 |
Dielectric strength(V) | 6000 | 13500 |
Solderability | 390±5℃, 12s | √ |
Tape(overlap %) | Min.50 | 54 |
Name | Custom multi strands copper standed wire PI taped copper litz wire |
Key word | Mylar litz wire |
Insulationh | Enamel, polyster cover |
Thermal rating | 155degree |
Diameter of the enameled copper wire | 0.05mm |
Number of strands | 1740 |
Type | Custom multi strands copper standed wire PI taped copper litz wire |
