High Voltage Profiled Litz Magnet Wire Pi Film Copper Rectangular Stranded Wire

High Voltage Profiled Litz Magnet Wire Pi Film Copper Rectangular Stranded Wire
High Voltage Profiled Litz Magnet Wire Pi Film Copper Rectangular Stranded Wire
High Voltage Profiled Litz Magnet Wire Pi Film Copper Rectangular Stranded Wire
Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: Copper litz wire
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Get Best Price Contact Now
Detail Information
Name: High Voltage Profiled Litz Wire PI Film Copper Rectangular Stranded Wire Certification: ISO9001/ISO14001/UL/SGS
Diameter: 0.05mm Cover Material: PI
Conductor: Copper Insulation: Enamel
Rated Temperature: 180 Key Word: High Voltage Profiled Litz Wire PI Film Copper Rectangular Stranded Wire
No. Of Strands: 1740
Highlight:

high voltage litz magnet wire

,

enameled litz magnet wire

Product Description

High voltage Profiled Litz Wire PI Film Copper Rectangular Stranded Wire

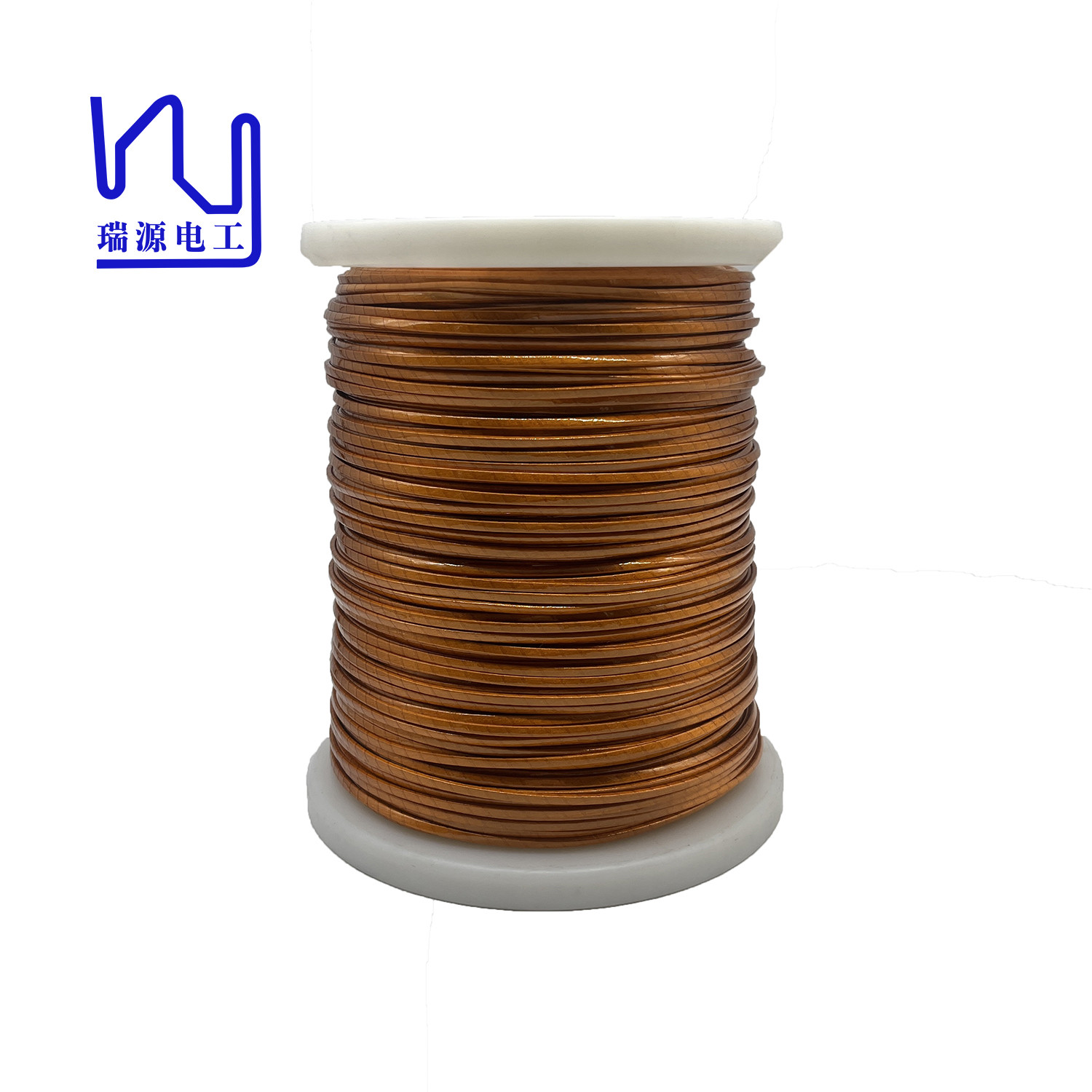

Profiled litz wire is a high quality product that is widely used in electronics. Its production process is exquisite. The single wire is made of 0.05mm enameled copper wire, which is twisted together by 1740 strands and covered with polyimide film. The overall dimension is 3.36mm in width and 2.08mm in thickness.



Characteristics Technical requests Test Results
Outer diameter of single wire(mm) 0.056-0.069 0.058-0.062
Conductor diameter(mm) 0.05±0.003 0.048-0.050
Width(mm) 3.3-3.48
Thickness(mm) 2.14-2.26
No. Of strands 1740 1740
Pitch(mm) 60±3 √
Maximum Resistance(Ω/m 20℃) 0.005885 0.005335
Dielectric strength(V) 6000 13500
Solderability 390±5℃, 12s √
Tape(overlap %) Min.50 54



Name

High voltage Profiled Litz Wire PI Film Copper Rectangular Stranded Wire

Key word

Mylar litz wire

Insulationh

Enamel, polyster cover

Thermal rating

155degree

Diameter of the enameled copper wire

0.05mm

Number of strands

 1740

Type

High voltage Profiled Litz Wire PI Film Copper Rectangular Stranded Wire
