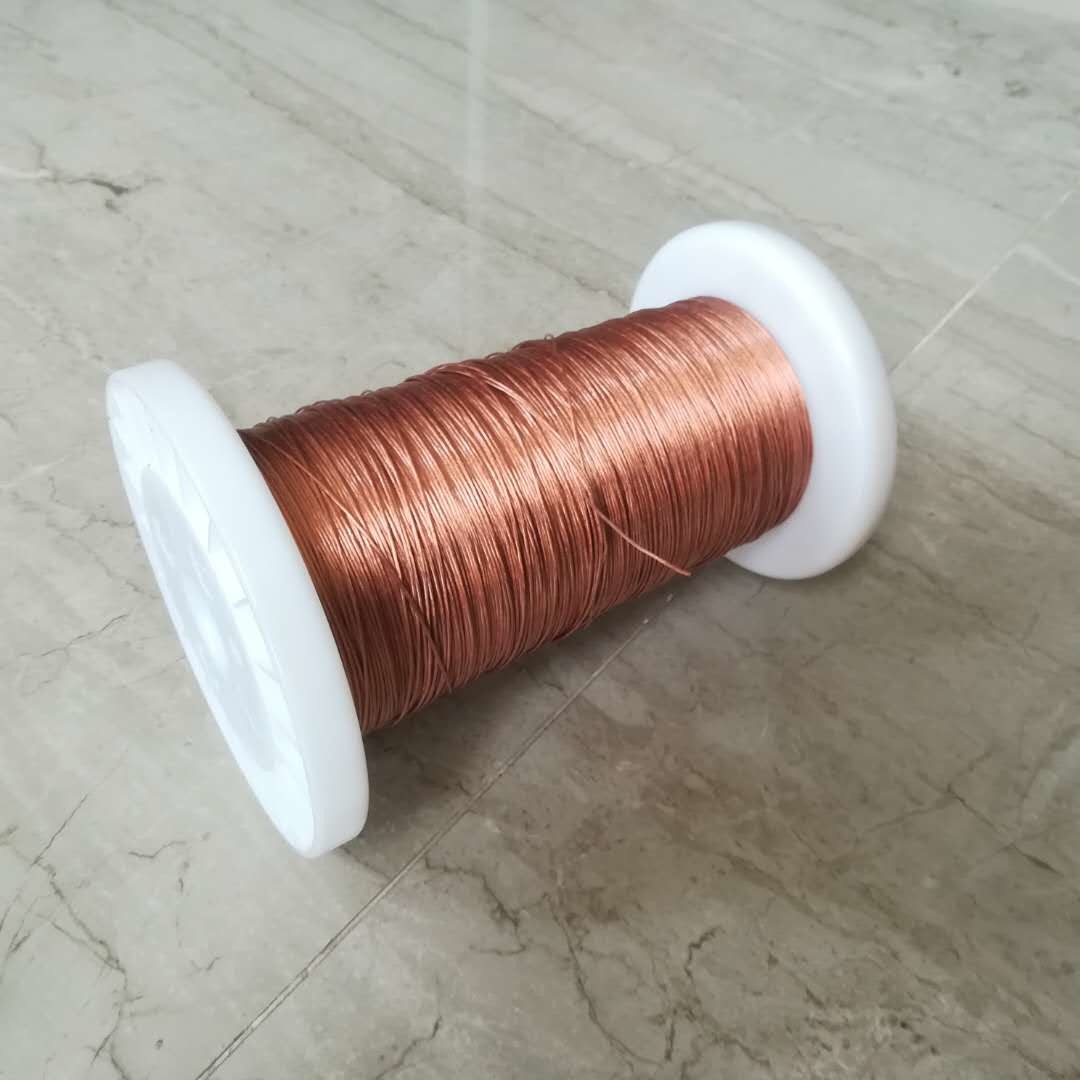

Name: Diameter Custom 0.1mm Copper Litz Wire High Frequency Stranded
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Copper litz wire
Price: 24.06 USD
Availability: InStock

Diameter Custom 0.1mm Copper Litz Wire High Frequency Stranded

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	Custom 0.1mm High Frequency Copper Stranded Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.1mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	Custom 0.1mm High Frequency Copper Stranded Litz Wire
No. Of Strands:	2-8000
Highlight:	stranded copper litz wire , high frequency copper litz wire , 0.1mm solderable enamelled copper wire

Product Description

Custom 0.1mm high frequency copper stranded litz wire

Enameled stranded wire is also called Litz wire. It is a high-frequency electromagnetic wire that is twisted together by a number of enameled single wires, according to a certain structure and a specific laying distance.

Name	Custom 0.1mm high frequency copper stranded litz wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.18mm
Number of strands	4
Key word	Custom 0.1mm high frequency copper stranded litz wire

single wire diameter (mm)	0.03-1.00
number of strands	2-8000
MaximumOutside Diameter(mm)	12
Insulation class	class130/class155/class180
Film type	Polyurethane/Polyurethane composite paint
Film thickness	0UEW/1UEW/2UEW/3UEW
Twisted	Single twist/multiple twist
Pressure resistance	＞1200
Stranding direction	Forward/ Reverse
lay length	4-110mm
Color	copper/red
Reel Specifications	PT-4/PT-10/PT-15

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Diameter Custom 0.1mm Copper Litz Wire High Frequency Stranded 0

Diameter Custom 0.1mm Copper Litz Wire High Frequency Stranded 1

Diameter Custom 0.1mm Copper Litz Wire High Frequency Stranded 2

Diameter Custom 0.1mm Copper Litz Wire High Frequency Stranded 3
