| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | Custom Multi- Strands Solderable Copper Litz Wire For Motor |
|---|---|---|---|
| Diameter: | 0.18mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom Multi- Strands Solderable Copper Litz Wire For Motor |
| No. Of Strands: | 4 | ||
| High Light: | multi strands copper litz wire,motor copper litz wire,custom solderable enamelled copper wire |
||

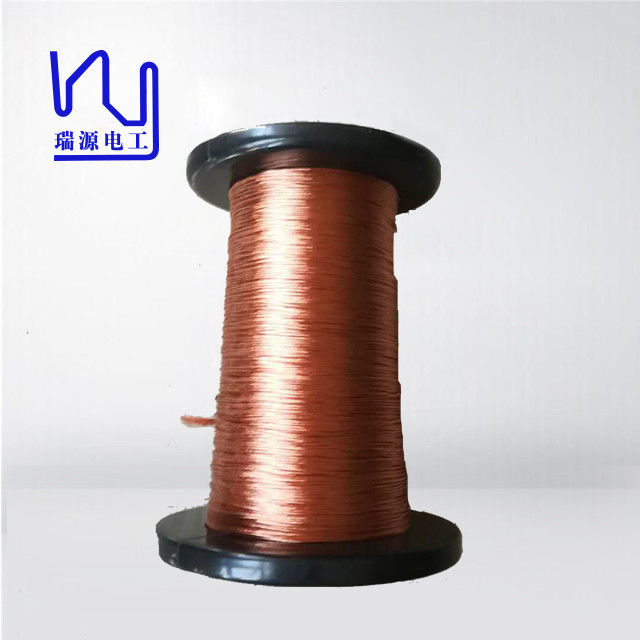

Custom Multi- Strands Solderable Copper litz wire For Motor
The unique twist pattern of strands places each strand almost equally on the inside and outside of the wire, resulting in equal flux linkage and reactance for each strand. This results in an even distribution of current throughout the conductor. The resistance ratios (AC to DC) then approach unity, which is especially desirable in high-Q circuit applications.
Our products have passed multiple certifications: ISO9001/ISO14001/IATF16949/UL/ROHS/REACH/VDE(F703)
|
Name |
Custom Multi- Strands Solderable Copper litz wire For Motor |
|
Key word |
Copper litz wire |
|
Insulationh |
Enamel, polyster cover |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.18mm |
|
Number of strands |
4 |
|
Key word |
Custom Multi- Strands Solderable Copper litz wire For Motor |
| single wire diameter (mm) | 0.18mm |
| number of strands | 4 |
| Maximum Outside Diameter(mm) | 0.49mm |
| Insulation class | class130/class155/class180 |
| Film type | Polyurethane/Polyurethane composite paint |
| Film thickness | 0UEW/1UEW/2UEW/3UEW |
| Pressure resistance | ＞1600V |
| Stranding direction | Forward/ Reverse |
| lay length | 14±2 |
| Color | copper/red |
| Reel Specifications | PT-4/PT-10/PT-15 |
| Twisted | Single twist/multiple twist |
