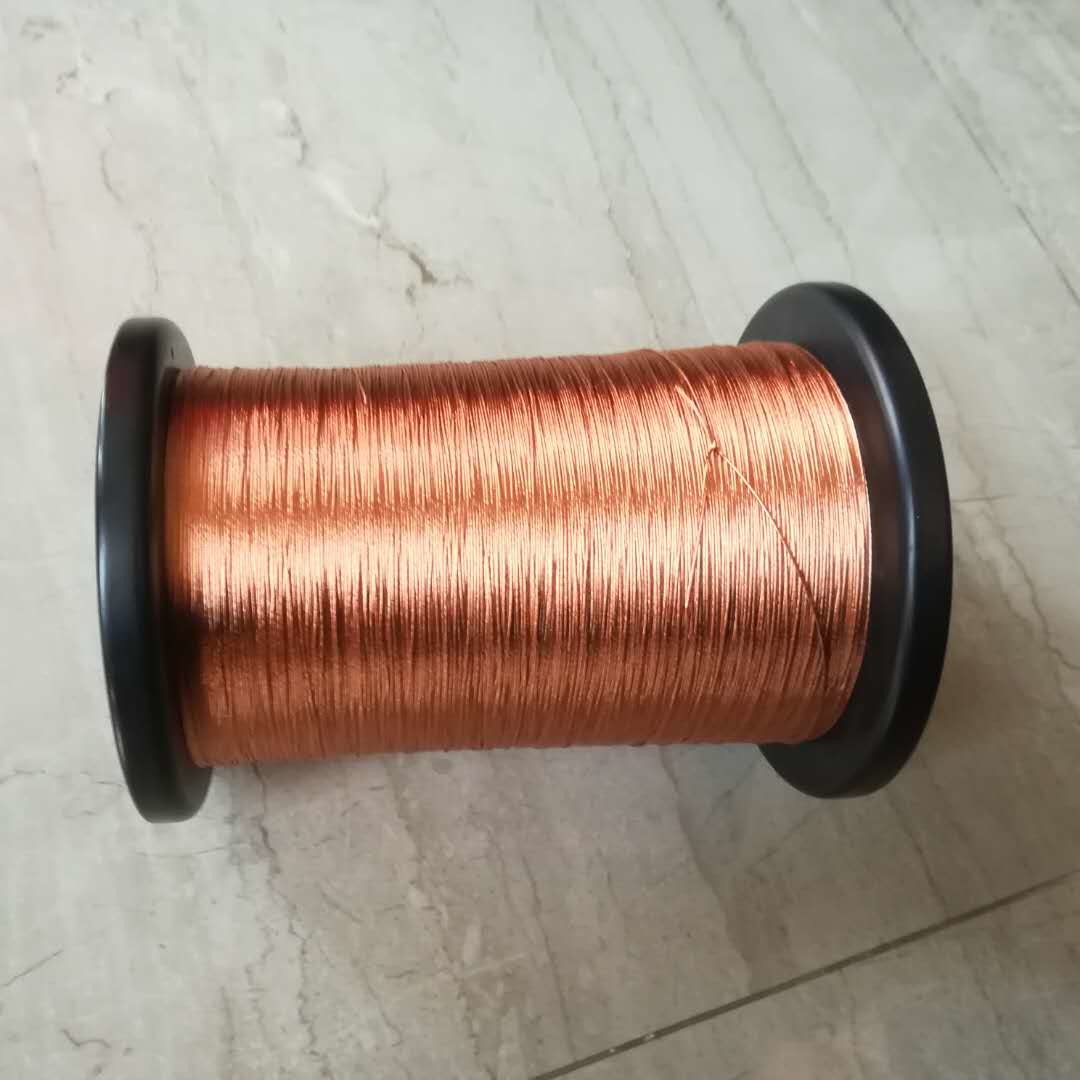

Super Thin Insulated Magnet Wire High Frequency 0.06mm Enamel Twist Solderable

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Model Number: Copper litz wire
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Certification: ISO9001/ISO14001/UL/SGS Name: Super Thin High Frequency 0.06mm Enamel Insulated Twist Wire Copper Litz Wire
Diameter: 0.06mm Standard: GB/T5013.3/IEC60245-3:1994
Conductor: Copper Insulation: Enamel
Rated Temperature: 155/180 Key Word: Super Thin High Frequency 0.06mm Enamel Insulated Twist Wire Copper Litz Wire
No. Of Strands: 7
High Light:

super thin insulated magnet wire

,

high frequency insulated magnet wire

,

0.06mm solderable wire


Product Description

 Super thin high frequency 0.06mm enamel insulated twist wire Copper litz wire



This customized product not only reduces the cost of customers, but also solves the problem of excessive current consumption of customers

Our products have passed multiple certifications: ISO9001/ISO14001/IATF16949/UL/ROHS/REACH/VDE(F703)

This customized product not only reduces the cost of customers, but also solves the problem of excessive current consumption of customers

Name

Super thin high frequency 0.06mm enamel insulated twist wire Copper litz wire

Key word

Copper litz wire

Insulationh

Enamel, polyster cover

Thermal rating

155degree

Diameter of the enameled copper wire

0.1mm

Number of strands

30

Key word

Super thin high frequency 0.06mm enamel insulated twist wire Copper litz wire



single wire diameter (mm) 0.06mm
number of strands 7
MaximumOutside Diameter(mm) 0.25mm
Insulation class class130/class155/class180
Film type Polyurethane/Polyurethane composite paint
Film thickness 0UEW/1UEW/2UEW/3UEW
Twisted Single twist/multiple twist
Pressure resistance >950V
Stranding direction Forward/ Reverse
lay length 14±2
Color copper/red
Reel Specifications PT-4/PT-10/PT-15



Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Super Thin Insulated Magnet Wire High Frequency 0.06mm Enamel Twist Solderable 0

Super Thin Insulated Magnet Wire High Frequency 0.06mm Enamel Twist Solderable 1

Super Thin Insulated Magnet Wire High Frequency 0.06mm Enamel Twist Solderable 2

Super Thin Insulated Magnet Wire High Frequency 0.06mm Enamel Twist Solderable 3
