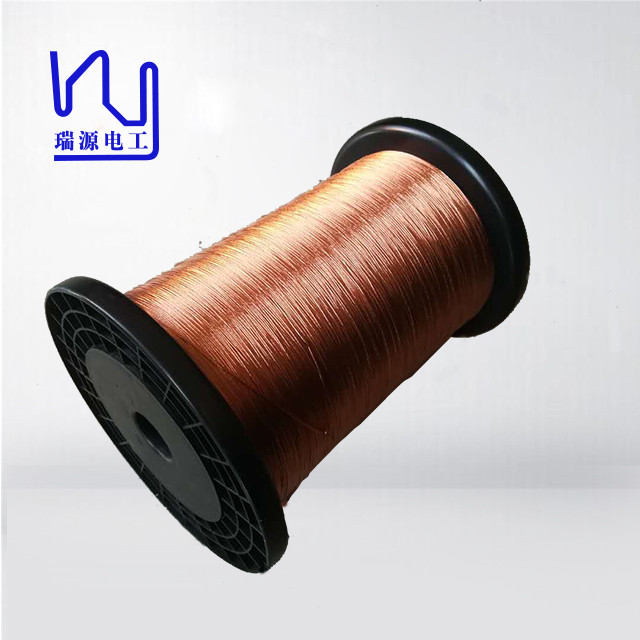

Enameled Copper Litz Wire 2uewf 0.06mm*7 Stranded Winding

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Model Number: Copper litz wire
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Certification: ISO9001/ISO14001/UL/SGS Name: 2UEWF 0.06mm*7 Stranded Copper Litz Wire
Diameter: 0.06mm Standard: GB/T5013.3/IEC60245-3:1994
Conductor: Copper Insulation: Enamel
Rated Temperature: 155/180 Key Word: 2UEWF 0.06mm*7 Stranded Copper Litz Wire
No. Of Strands: 7
High Light:

enameled copper litz wire

,

0.06mm copper litz wire

,

litz winding wire of copper


Product Description

 2UEWF 0.06mm*7 Stranded Copper litz wire

This design balances the flux linkage and reactance of the individual strands so that the current is evenly distributed throughout the conductor. Then, the resistance ratios (AC vs. DC) tend toconverge.



Custom stranded wire requires the engineer using the stranded wire knows the operating frequency and RMS current required for the application. Since the main benefit of Litz conductors is to reduce AC losses, the primary consideration for any Litz design is the operating frequency. Operating frequency not only affects the actual Litz structure, but is also used to determine individual wire gauges.

Name

2UEWF 0.06mm*7 Stranded Copper litz wire

Key word

Copper litz wire

Insulationh

Enamel, polyster cover

Thermal rating

155degree

Diameter of the enameled copper wire

0.1mm

Number of strands

30

Key word

2UEWF 0.06mm*7 Stranded Copper litz wire



single wire diameter (mm) 0.06mm
number of strands 7
MaximumOutside Diameter(mm) 0.25mm
Insulation class class130/class155/class180
Film type Polyurethane/Polyurethane composite paint
Film thickness 0UEW/1UEW/2UEW/3UEW
Twisted Single twist/multiple twist
Pressure resistance >950V
Stranding direction Forward/ Reverse
lay length 14±2
Color copper/red
Reel Specifications PT-4/PT-10/PT-15



Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Enameled Copper Litz Wire 2uewf 0.06mm*7 Stranded Winding 0

Enameled Copper Litz Wire 2uewf 0.06mm*7 Stranded Winding 1

Enameled Copper Litz Wire 2uewf 0.06mm*7 Stranded Winding 2

Enameled Copper Litz Wire 2uewf 0.06mm*7 Stranded Winding 3
