| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2UEWF 0.10mm*30 Stranded Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 2UEWF 0.10mm*30 Stranded Copper Litz Wire |
| No. Of Strands: | 30 | ||
| Highlight: | enamel coated triple insulated litz wire,0.10mm triple insulated litz wire,0.10mm enamel insulated copper wire |
||

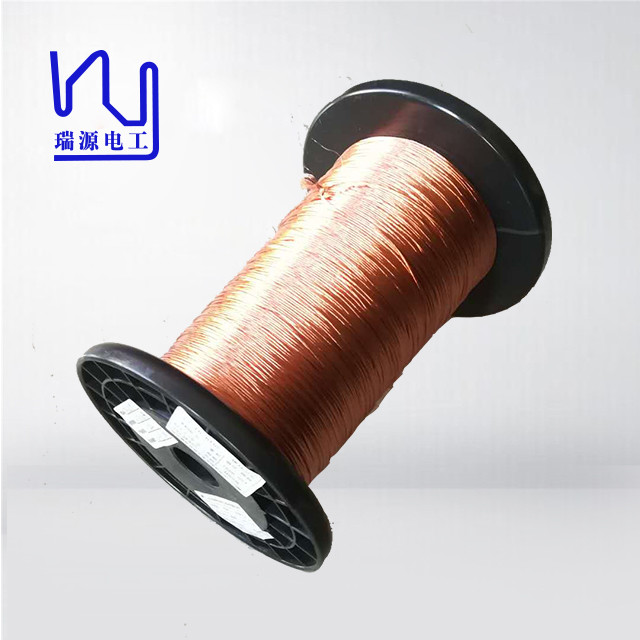

2UEWF 0.10mm*30 Stranded copper litz wire
Stranded wire, generally made by twisting multiple strands of fine enameled wires insulated from each other, is used for high-frequency transformers, high-frequency inductors or high-frequency circuits, etc.
Customized Product Introduction
Stranded wire made by twisting 0.10mm enameled wire as a single wire is our star flagship product. We have many customers ordering this product. We can customize 0.10mm*2 strands until 8000 strands.
|
Name |
2UEWF 0.10mm*30 Stranded copper litz wire |
|
Key word |
Copper litz wire |
|
Insulationh |
Enamel, polyster cover |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.1mm |
|
Number of strands |
30 |
|
Key word |
2UEWF 0.10mm*30 Stranded copper litz wire |
| single wire diameter (mm) | 0.10mm |
| number of strands | 30 |
| Maximum Outside Diameter(mm) | 0.79mm |
| Insulation class | class130/class155/class180 |
| Film type | Polyurethane/Polyurethane composite paint |
| Film thickness | 0UEW/1UEW/2UEW/3UEW |
| Twisted | Single twist/multiple twist |
| Pressure resistance | >1100V |
| Stranding direction | Forward/ Reverse |
| lay length | 14±2 |
| Color | copper/red |
| Reel Specifications | PT-4/PT-10/PT-15 |
![]()
![]()
![]()
![]()
