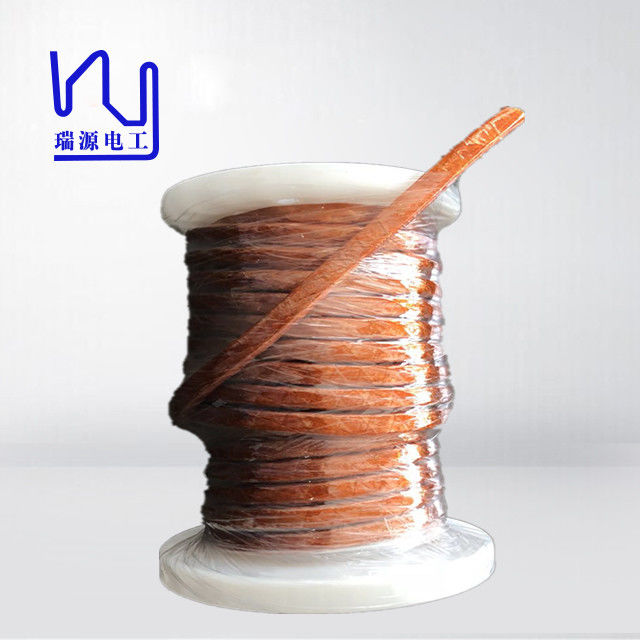

38 Awg High Voltage Profiled Copper Litz Wire Pi Film Taped Stranded Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: Copper litz wire
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Name: 38 AWG High Voltage Profiled Litz Wire PI Film Taped Stranded Wire Certification: ISO9001/ISO14001/UL/SGS
Diameter: 0.4mm Cover Material: PET
Conductor: Copper Insulation: Enamel
Rated Temperature: 155/180 Key Word: 38 AWG High Voltage Profiled Litz Wire PI Film Taped Stranded Wire
No. Of Strands: 281
High Light:

38 awg copper litz wire

,

profiled copper litz wire

,

high voltage wire litz


Product Description

0.10*851mm Taped Litz Wire Copper Insulated Stranded RF Transformers



The taped litz wire is used for 5G base station power supply, electric vehicle charging pile, induction charging, inverter welding machine, automotive electronics, ultrasonic equipment, induction heating equipment etc.

Name

38 AWG High voltage profiled litz wire PI film taped stranded wire

Key word

Mylar litz wire

Insulationh

Enamel, polyster cover

Thermal rating

155degree

Diameter of the enameled copper wire

0.1mm

Number of strands

381

Type

38 AWG High voltage profiled litz wire PI film taped stranded wire



Description
Taped Litz Wire -PI 0.10*851
Conductor diameter(mm)
0.10
Conductor diameter tolerance (mm)
±0.003
Maximal overall diameter (mm)
5.06
Thermal Class
155
Strand number
851
Pitch(mm)
97
Stranding direction
S
Insulation Layer
PI
Material specs(mm*mm or D)
0025*15
Times of Wrapping
1
Overlap(%)
76
Wrapping direction
Z
Max resistance (Ω/m at20℃)
0.00279
Min breakdown voltage
6000

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

38 Awg High Voltage Profiled Copper Litz Wire Pi Film Taped Stranded Wire 0

38 Awg High Voltage Profiled Copper Litz Wire Pi Film Taped Stranded Wire 1

38 Awg High Voltage Profiled Copper Litz Wire Pi Film Taped Stranded Wire 2

38 Awg High Voltage Profiled Copper Litz Wire Pi Film Taped Stranded Wire 3



38 Awg High Voltage Profiled Copper Litz Wire Pi Film Taped Stranded Wire 4
