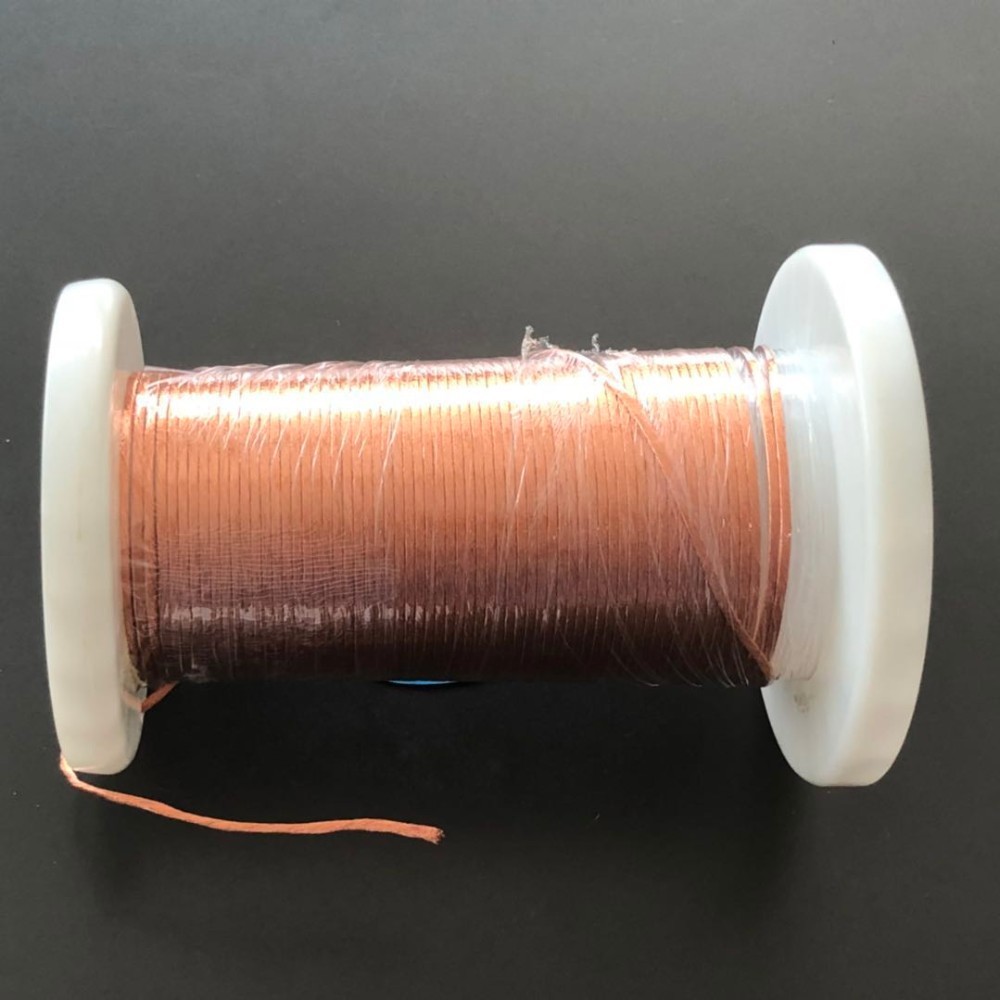

0.10*851mm Taped Litz Magnet Wire Copper Insulated Stranded Rf Transformers

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: Copper litz wire
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Name: 0.10*851mm Taped Litz Wire Copper Insulated Stranded RF TransformersTaped Litz Wire Certification: ISO9001/ISO14001/UL/SGS
Diameter: 0.4mm Cover Material: PET
Conductor: Copper Insulation: Enamel
Rated Temperature: 155/180 Key Word: 0.10*851mm Taped Litz Wire Copper Insulated Stranded RF Transformers
No. Of Strands: 2000
High Light:

taped litz magnet wire

,

0.10mm litz magnet wire

,

taped wire litz


Product Description

0.10*851mm Taped Litz Wire Copper Insulated Stranded RF Transformers



PI film is the best insulated film in the world in the insulation catagrey.The thermal rating of PI film is up to 220 degrees, the overlap ratio of the taped lit wire can reach up to 75%, and the breakdown voltage is above 7000V. This taped litz wire has good pressure resistance and good adhesion of the insulating layer.

Name

0.10*851mm Taped Litz Wire Copper Insulated Stranded RF Transformers

Key word

Mylar litz wire

Insulationh

Enamel, polyster cover

Thermal rating

155degree

Diameter of the enameled copper wire

0.1mm

Number of strands

381

Type

0.10*851mm Taped Litz Wire Copper Insulated Stranded RF Transformers



Description
Taped Litz Wire -PI 0.10*851
Conductor diameter(mm)
0.10
Conductor diameter tolerance (mm)
±0.003
Maximal overall diameter (mm)
5.06
Thermal Class
155
Strand number
851
Pitch(mm)
97
Stranding direction
S
Insulation Layer
PI
Material specs(mm*mm or D)
0025*15
Times of Wrapping
1
Overlap(%)
76
Wrapping direction
Z
Max resistance (Ω/m at20℃)
0.00279
Min breakdown voltage
6000

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
