Name: High Frequency Copper Litz Wire Multi Strands Enameled
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Copper litz wire
Price: 24.06 USD
Availability: InStock

Detail Information

Name:	High Frequency Multi Strands Enameled Stranded Wire Mylar Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.4mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	High Frequency Multi Strands Enameled Stranded Wire Mylar Litz Wire
No. Of Strands:	45
Highlight:	high frequency copper litz wire , multi strands copper litz wire , enameled mylar wire

Product Description

High Frequency Multi strands Enameled Stranded Wire Mylar Litz Wire

Product range:

The range of the number of strands: 2 to 36000 strands (different specifications, according to the cross-sectional area)

Finished outer diameter range: 0.1～10mm

Cross-sectional area: up to 50mm²

Enameled single wire (nominal diameter of conductor): 0.020～0.50mm

Type of enameled single wire: all varieties of enameled wire

Number of twists: 10～1200Ts/m, corresponding twist distance: 100～0.83mm

Twist direction: "S" or "Z", S=clockwise, Z=counterclockwise

Features:

◆ Single lines can be arranged in color order without confusion.

◆ High elastic wire can be added in the middle of the stranded wire, and the tensile strength is high.

◆ All self-produced enameled single wires are used, with reliable product quality and guaranteed delivery.

Test report: 0.4mm x 15 x 3(5 x2)	Standard	Test result
Conductor diameter(mm)	0.40±0.005	0.396-0.400
Single wire diameter(mm)	0.417-0.439	0.427-0.432
Width(mm)	5	5.02-5.18
Thickness(mm)	2	1.97-2.07
No. of strand	45	45
Max resistance(Ω/m at20℃)	Max. 0.003149	0.00308
Mini breakdown voltage(V)	Min.6000	11800

Name	High Frequency Multi strands Enameled Stranded Wire Mylar Litz Wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.4mm
Number of strands	45
Type	High Frequency Multi strands Enameled Stranded Wire Mylar Litz Wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

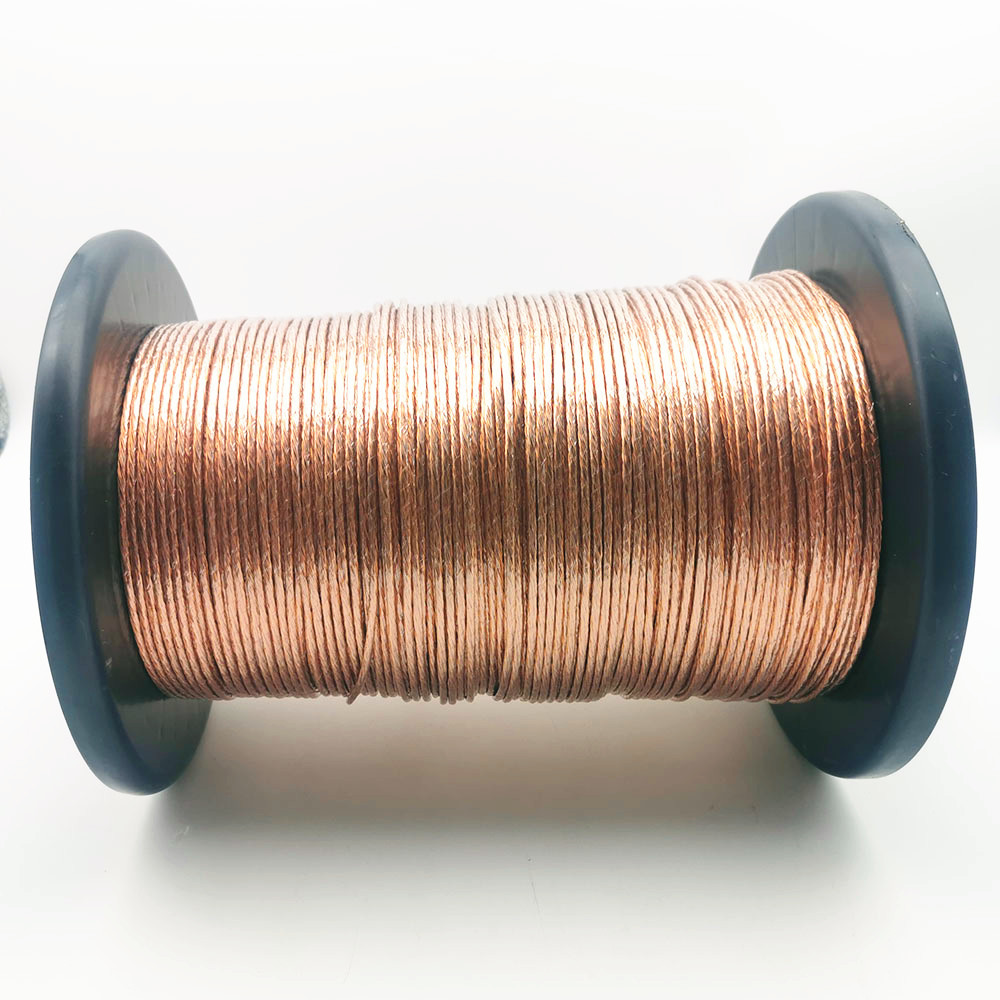

High Frequency Copper Litz Wire Multi Strands Enameled 0

High Frequency Copper Litz Wire Multi Strands Enameled 1

High Frequency Copper Litz Wire Multi Strands Enameled 2

High Frequency Copper Litz Wire Multi Strands Enameled 3

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
