| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.1mm*35 High Frequency Twisted Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 0.1mm*35 High Frequency Twisted Copper Litz Wire |
| No. Of Strands: | 35 | ||
| Highlight: | 0.1 mm copper litz wire,twisted copper litz wire,litz wire 0.1 mm |
||

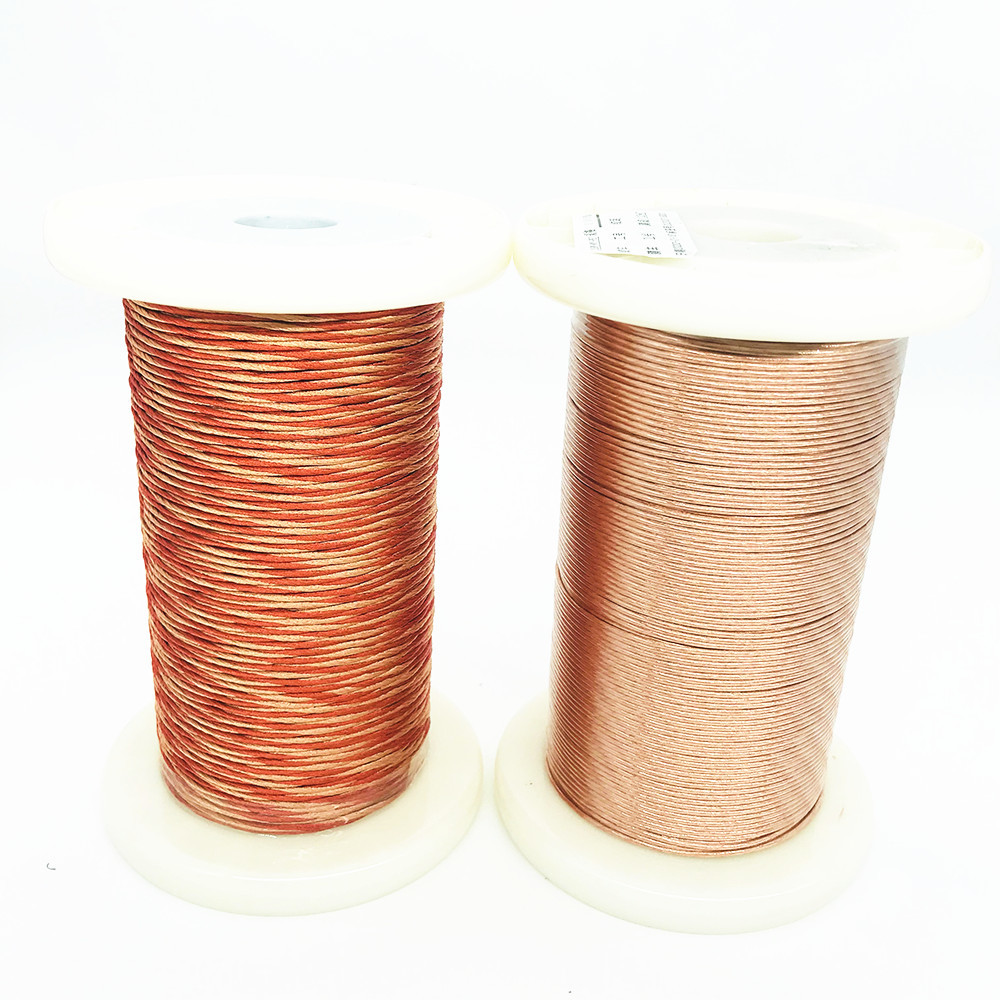

0.1mm*35 High Frequency Twisted Copper Litz Wire
Stranded litz wire is realized by twisting single wire around the stranded wire shaft with equal angular velocity and uniform forward movement of the stranded wire. Commonly used are copper and aluminum. Copper and aluminum wires can be twisted into conductors and cells of various cross-sections and different types of wires and cables. It is suitable for occasions where the operating frequency is high and the skin effect and proximity effect loss of single-strand wires are too large. The use of stranded wires can reduce the operating temperature. Compared with single-stranded wires of the same cross-sectional area, stranded wires have higher mechanical properties and flexibility.
|
Name |
0.1mm*35 High Frequency Twisted Copper Litz Wire |
|
Key word |
Copper litz wire |
|
Insulationh |
Enamel, polyster cover |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.1mm |
|
Number of strands |
35 |
|
Type |
0.1mm*35 High Frequency Twisted Copper Litz Wire |
