Product Name: | Customized Stranded Copper Enameled Wire CTC High Frequency Litz Wire | Thermal Rating: | 180 |
---|---|---|---|
Insulation Material: | UEW | Size: | 0.2mm |
Conductor Material: | Copper | Key Word: | Customized Stranded Copper Enameled Wire CTC High Frequency Litz Wire |
High Light: | 0.2mm copper enameled wire,customized stranded copper enameled wire,0.2mm litz wire |

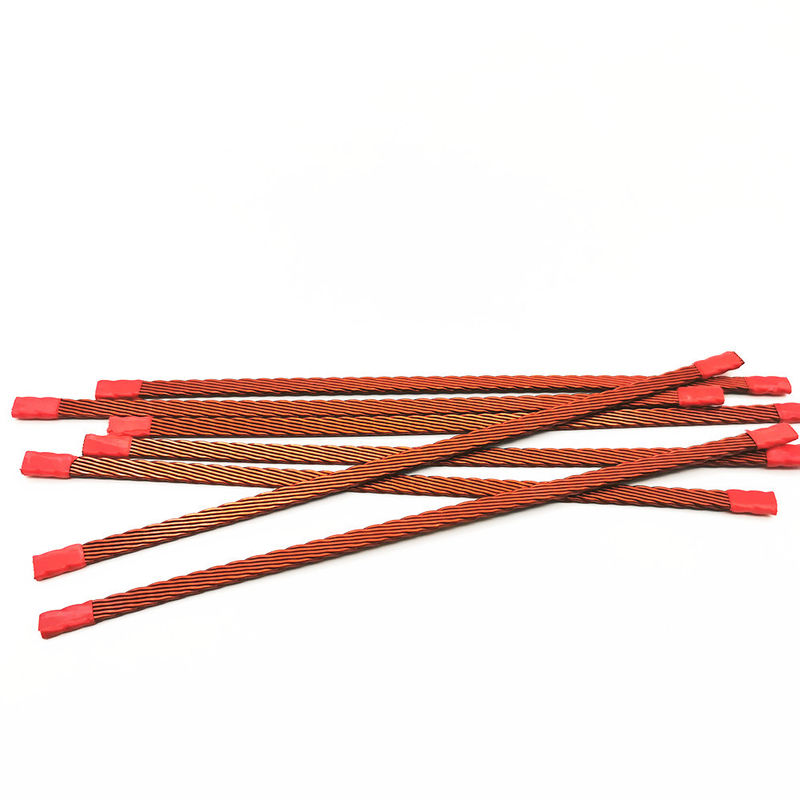

Customized Stranded Copper Enameled Wire CTC High Frequency Litz Wire
Compared with ordinary flat wires, transposed conductors have many advantages, and at the same time, due to the relatively small size, the manufacturing cost of transformers is reduced.
1. The loss of discrete field is reduced due to the use of multiple single wires of small cross-section instead of a flat wire of large cross-section.
2. Compared with multiple parallel self-insulated single wires, since the transposed conductor is an enameled single wire, the thickness of the paint film is much thinner than that of the previous paper insulation, but the withstand voltage is several times that of the paper insulation. The insulation thickness of the common paper insulation is relatively thin, so the volume of the winding is obviously reduced, and the utilization rate of space is effectively improved.
3. Due to the transposition between single wires, the windings have high mechanical strength.
4. Because the insulation thickness is relatively thin, it has high heat dissipation.
5. Due to the thin paint film and insulation thickness, it has better heat dissipation, so it has high thermal stability.
6. Due to the reduction of manual transposition, the winding winding process becomes simple and the processing time of the winding is shortened. For the transposed wire, winding one turn of the transposed wire is equivalent to winding multiple turns of a single parallel flat wire.
Product name |
Customized Stranded Copper Enameled Wire CTC High Frequency Litz Wire |
Condcutor material |
Copper |
Insulation |
Enamel |
Application |
High power transformer/new energy vehicles |
Key word |
Customized Stranded Copper Enameled Wire CTC High Frequency Litz Wire |
