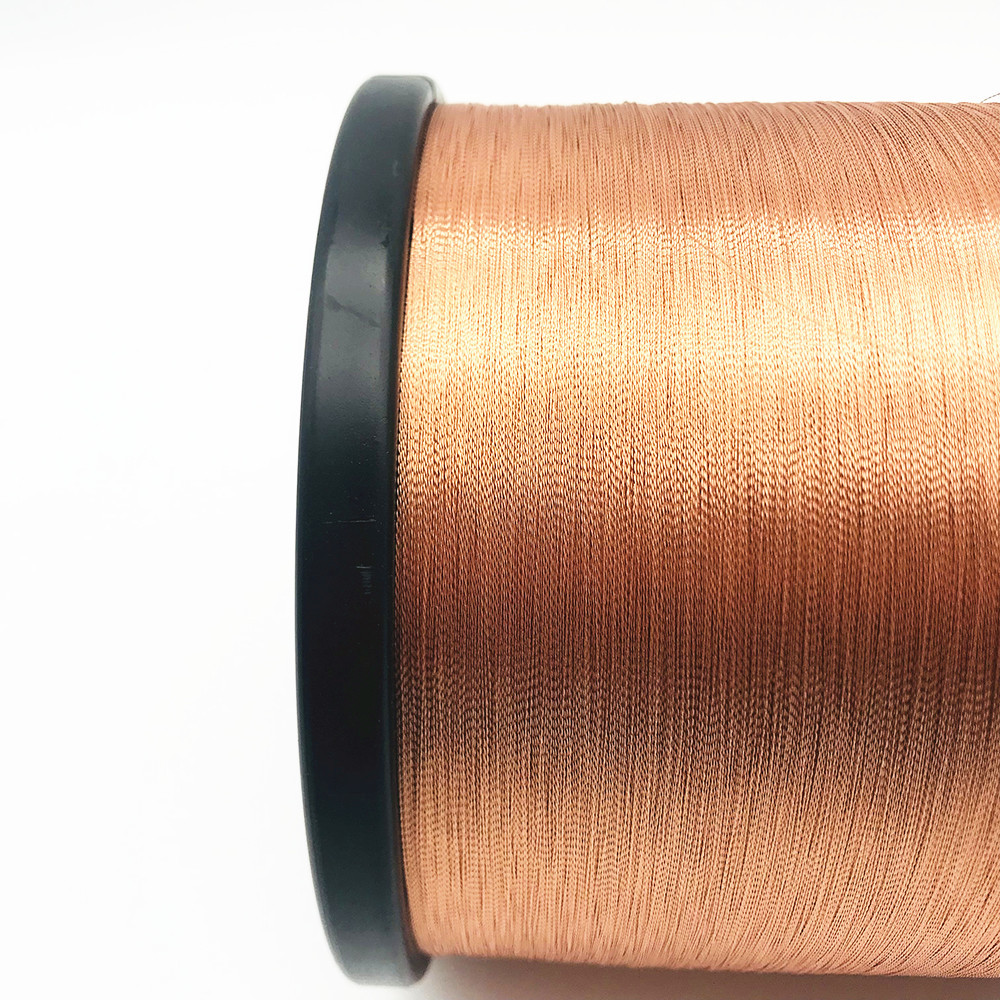

Name: Magnet 0.1mm*2 Copper Litz Wire Stranded Enameled For Winding
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Copper litz wire
Price: 24.06 USD
Availability: InStock

Magnet 0.1mm*2 Copper Litz Wire Stranded Enameled For Winding

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	0.1mm*2 Litz Wire Stranded Enameled Copper Wire For Winding	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.1mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	Copper Litz Wire
No. Of Strands:	2
Highlight:	enameled copper litz wire , winding copper litz wire , 0.1mm magnet wire

Product Description

0.1mm*2 Litz Wire Stranded Enameled Copper Wire for Winding

Litz wire employs a stranded wire with individually insulated conductors (forming abundle). The strands must be insulated from each other

Name	0.1mm*2 Litz Wire Stranded Enameled Copper Wire for Winding
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.1mm
Number of strands	95
Type	litz wire

Characteristics	Technical requests	Test Results	Conclusion
Characteristics	Technical requests	Sample	Conclusion
Surface	Good	OK	OK
Breakdown Voltage	≥ 1.1 KV	2.4
Enamel Continuity	≤ 3 hole/6m	1
Outer diameter	0.107-0.125 mm	0.110-0.113
Inner diameter	0.1 mm±0.003	0.098-0.10mm
Conductor Resistance (20℃ Ω/Km)	≤1.191	1.101
Pitch	3.5±1 mm	OK
Solderability	390±5℃/ 4 s	OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Magnet 0.1mm*2 Copper Litz Wire Stranded Enameled For Winding 0

Magnet 0.1mm*2 Copper Litz Wire Stranded Enameled For Winding 1

Magnet 0.1mm*2 Copper Litz Wire Stranded Enameled For Winding 2

Magnet 0.1mm*2 Copper Litz Wire Stranded Enameled For Winding 3
