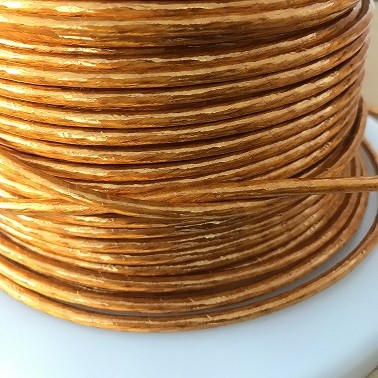

High Voltage Taped Copper Litz Cable Wire With Size 0.18mm X 1386

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	High Voltage Taped Litz Wire With Size 0.18 X 1386	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.18mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	Copper Litz Wire
No. Of Strands:	1386
Highlight:	0.18mm copper litz cable , high voltage copper litz cable , litz type enameled wire

Product Description

High voltage taped litz wire with size 0.18 x 1386

High Voltage taped litz wire can sustain the voltage over 9KV, that is greatly used in high voltage transformer.Litz wire is a type of specialized multistrand wire or cable used in electronics to carry alternating current (AC) at radio frequencies.

Name	High voltage taped litz wire with size 0.18mm x 1386
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.1mm
Number of strands	95
Type	Silk covered litz wire

	Characteristics	Technical requests	Test Results	Conclusion
1	Inner diameter	0.18±0.003 mm	0.18	OK
2	Thickness of coating	≥ 0.012mm	0.022	OK
3	Outer diameter	≤ 0.204 mm	0.202	OK
4	Twist direction	S/Z	Z	OK
5	Strands	1386	1386	OK
6	Twist No.	12±1 Ts/m	12	OK
7	Breakdown Voltage	≥6700V	9500V	OK
8	Conductor Resistance	≤ 0.521 Ω/km	0.49	OK
9	Solderability	YES	YES	OK
11	Overlapping Rate	33%/50%/60%	33%	OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

High Voltage Taped Copper Litz Cable Wire With Size 0.18mm X 1386 0

High Voltage Taped Copper Litz Cable Wire With Size 0.18mm X 1386 1

High Voltage Taped Copper Litz Cable Wire With Size 0.18mm X 1386 2

High Voltage Taped Copper Litz Cable Wire With Size 0.18mm X 1386 3
