| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Certification: | ISO9001/ISO14001/UL/SGS | Name: | 20-4332208 |
|---|---|---|---|
| Diameter: | 0.4mm | Cover Material: | PET |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Mylar Litz Wire |
| No. Of Strands: | 24 | ||
| High Light: | litz type enamel coated copper wire,mylar enamel coated copper wire,winding high frequency litz wire |
||

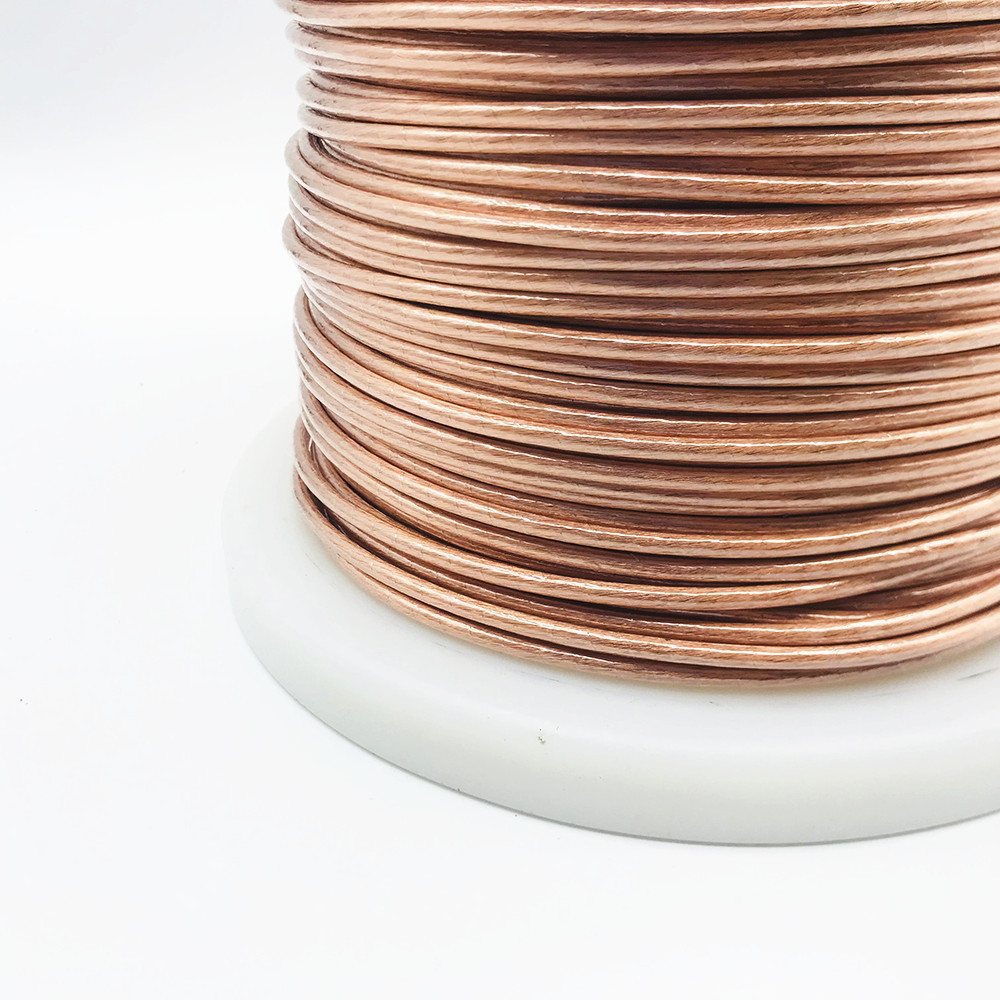

PET Mylar Stranded Copper Wire High Frequency Litz Wire For Winding
Taped high frequency litz wire constructions are mainly suitable for applications requiring high break down voltage. Taping improves the capability to withstand flexing and mechanical stress. Adhesive taped litz wire can be achieved by using thermally sealed or self adhesive tape. This ensures protection against re-opening during and after manufacturing processes and thus secures the compliance with defined creepage distance. Some tapes can be thermally sealed when used in conjunction with certain wire enamel types.
|
Name |
PET Mylar Stranded Copper Wire High Frequency Litz Wire For Winding |
|
Key word |
Mylar litz wire |
|
Insulationh |
Enamel, polyster cover |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.4mm |
|
Number of strands |
24 |
|
Type |
Mylar litz wire |
