Detail Information

Name:	42AWG Plain Enameled Copper Wire Purple Color For Old / Vintage Style Guitar Pickups	Color:	Brown
Certification:	ISO9001/ISO14001/UL/SGS	Diameter:	42AWG
Standard:	GB/T5013.3/IEC60245-3:1994	Conductor:	Copper
Insulation:	Plain Enamel	Rated Temperature:	155/180
Key Word:	Guitar Pickup Wire
Highlight:	iec awg 42 plain enamel wire , guitar awg 42 plain enamel wire , high temperature guitar pickup wire

Product Description

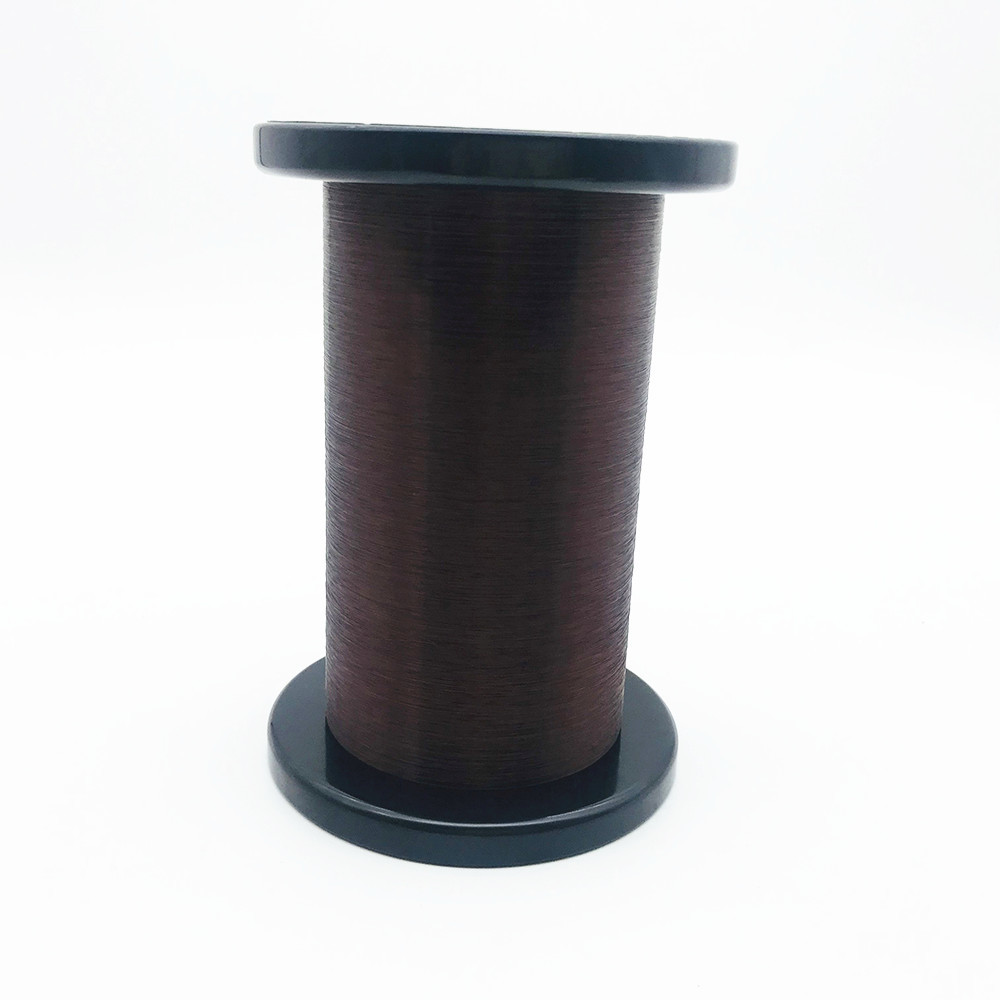

42AWG plain enameled copper wire purple color for old / vintage style guitar pickups

We supply some of the world’s guitar pickup craftsmen with wire custom made to order.

Our Pickup Wire started with an Italian customer several years ago, after a year of R&D, and half-year blind and device test in Italy, Canada, Australia. Since lauched into markets, Ruiyuan Pickup Wire won a good reputation and has been chosen by over 200 pickups clients from Europe, America, Asia, etc.

Popular insulation options

* Plain
* Poly
* Heavy formvar

Customized colors: only 20kg you can choose your exclusive color

Guitar pickup specialists

We mainly manufacture Plain, heavy Formvar insulation and poly insulation wire, for the

simple reason that they just sound best to our ears.

The thickness of the wire is usually measured in AWG, which stands for American Wire Gauge. In guitar pickups, 42 AWG is the one
that’s most commonly used. But wire-types measuring from 41 to 44 AWG are all being used in the construction of guitar pickups.

Plain enamel magnet wire is copper wire with a thin layer of insulation, and is used mainly in winding guitar pickup.The insulation is made from plain enamel, and protects the coiled with short circuiting.

Quantity: Round 1.5kg/spool, Carton

Name	AWG 42 Plain Enamel Copper Wire For Guitar Pickup
Key word	Enameled copper wire
Insulationh	Heavy formvar enamel
Diameter of the enameled copper wire	0.063mm
Type	Enameled copper wire

Tag:

Place of Origin:	China
Brand Name:	RVYUAN
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Guitar pickup wire

Minimum Order Quantity:	2kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
