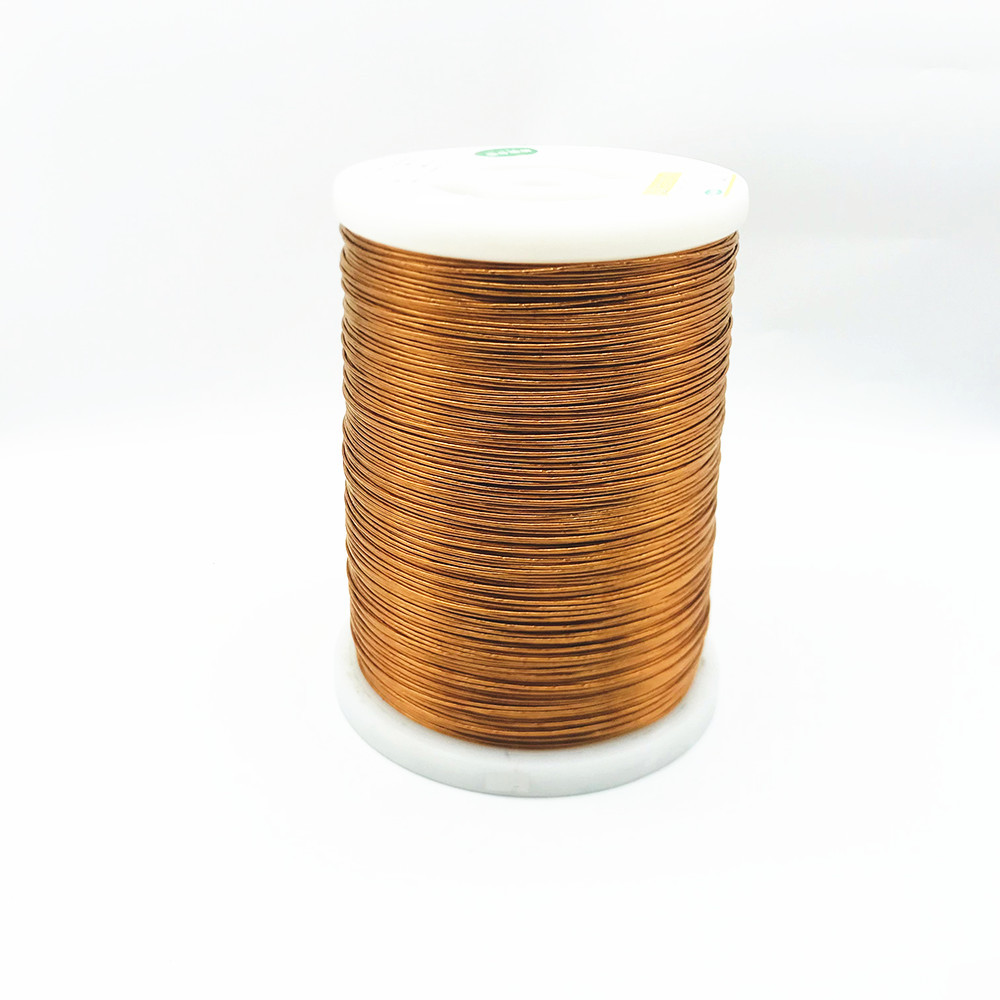

0.4mm X 24 Strands Litz Magnet Wire Stranded Insulated

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.4mm X 24
Minimum Order Quantity: 20Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 100Ton/week
Detail Information
Product Name: Taped Litz Wire Single Wire Diameter: 0.4mm
No. Of Strands: 24 Insulation: PET/PI Film
Breakdown Voltage: 4000v Thermal Grade: 155/180
High Light:

0.4mm litz magnet wire

,

24 strands litz magnet wire

,

stranded copper litz wire


Product Description



0.4mm x 24 Strands PET Taped Litz Wire High Frequency Enameled Copper Mylar Litz Wire



Possibilty to customize the litz wire according to your needs.



Taped high frequency litz wire constructions are mainly suitable for applications requiring a high break down voltage. Taping gives litz wire improved capability to withstand flexing and mechanical stress.



Application:

RF transformers RF Chokes High frequency inductors Medical equipment



Description
2UEW-F-PET 0.40*24
Conductor diameter(mm)
0.40
Conductor diameter tolerance (mm)
±0.005
Minimal insulation thickness(mm)
0.011
Maximal overall diameter (mm)
0.439
Thermal Class
155
Strand number
4*6
Pitch(mm)
22±3
40±3
Stranding direction
S
Insulation Layer
PET
Material specs(mm*mm or D)
0025*12
Times of Wrapping
1
Overlap(%)
50
Wrapping direction
Z
Max O. D(mm)
3.02
Max pin holes pc/6m
30
Max resistance (Ω/Km at20℃)
5.904
Min breakdown voltage
4000



0.4mm X 24 Strands Litz Magnet Wire Stranded Insulated 0
