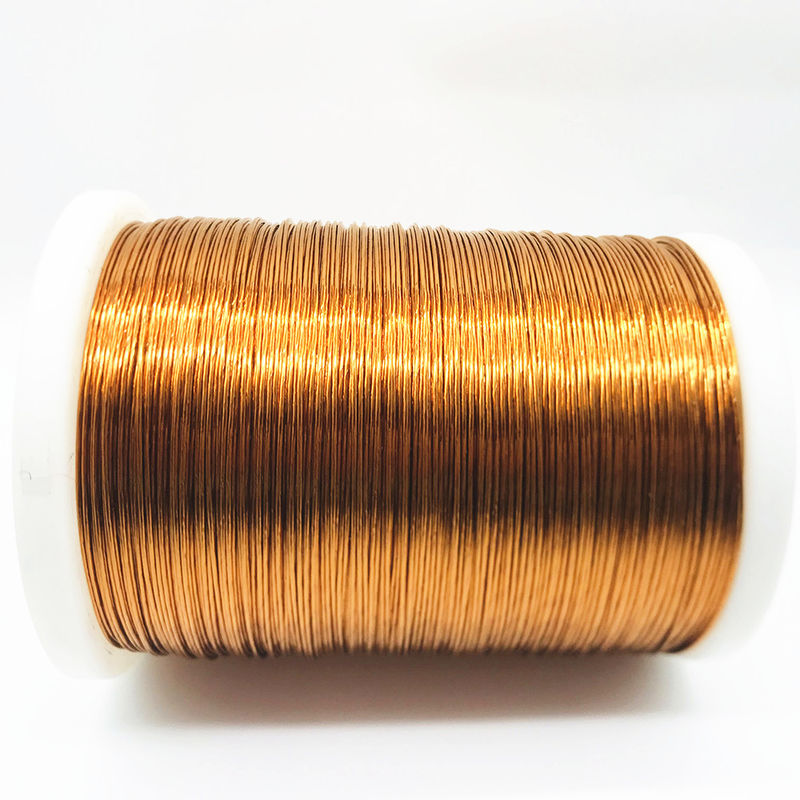

0.25mm * 36 Stranded Copper Litz Wire Pi Film Insulation

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.25mm * 36

Minimum Order Quantity:	20Kilogram/Kilograms
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	100Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Taped Litz Wire	Thermal Class:	130/155/180
Insulation:	PI Film	Overall Diameter:	2.86mm*1.2mm
No. Of Strands:	36	Conductor Diameter:	0.25mm
Highlight:	0.25mm copper litz wire , 36 stranded copper litz wire , pi film insulation copper litz cable

Product Description

0.25mm * 36 Stranded Copper Cable Taped Litz Wire

Litz wire employs a stranded wire with individually insulated conductors (forming abundle), served with polyester or nylon is characterized by an increase in mechanical performance and excellent dimensional stability.

Possibilty to customize the litz wire according to your needs.

Feature:

•Additional protection against mechanical stress • Excellent dimensional and physical stability • High flexibility • Splicing unnecessary • High thermal resistance • Compliance with air gap distances • Improved immersion


Application:
•RF transformers •RF Chokes •High frequency inductors •Medical equipment

			Product

			Profiled litz wire

			Specification

			0.25*12*3(2.86*1.2)

			Test result

			single wire overall diameter(mm)

			0.268-0.284

			0.273-0.278

			Single wire diameter(mm)

			0.25±0.004

			0.247-0.249

			Breakdown Voltage

			Min.2500V

			5000

			Conductor Resistance

			≤ 0.01028Ω/m

			0.01000
