0.1mm * 200 Polyester Film Copper Litz Cable Kapton Taped

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.1mm*200
Minimum Order Quantity: 20Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 100Ton/week
Detail Information
Product Name: Profiled Litz Wire Thermal Class: 155/180
Insulation: PI Film Overall Diameter: Min. 0.116mm
No. Of Strands: 200 Conductor Diameter: 0.1mm
High Light:

0.1mm copper litz cable

,

polyester film copper litz cable

,

kapton taped copper litz wire


Product Description

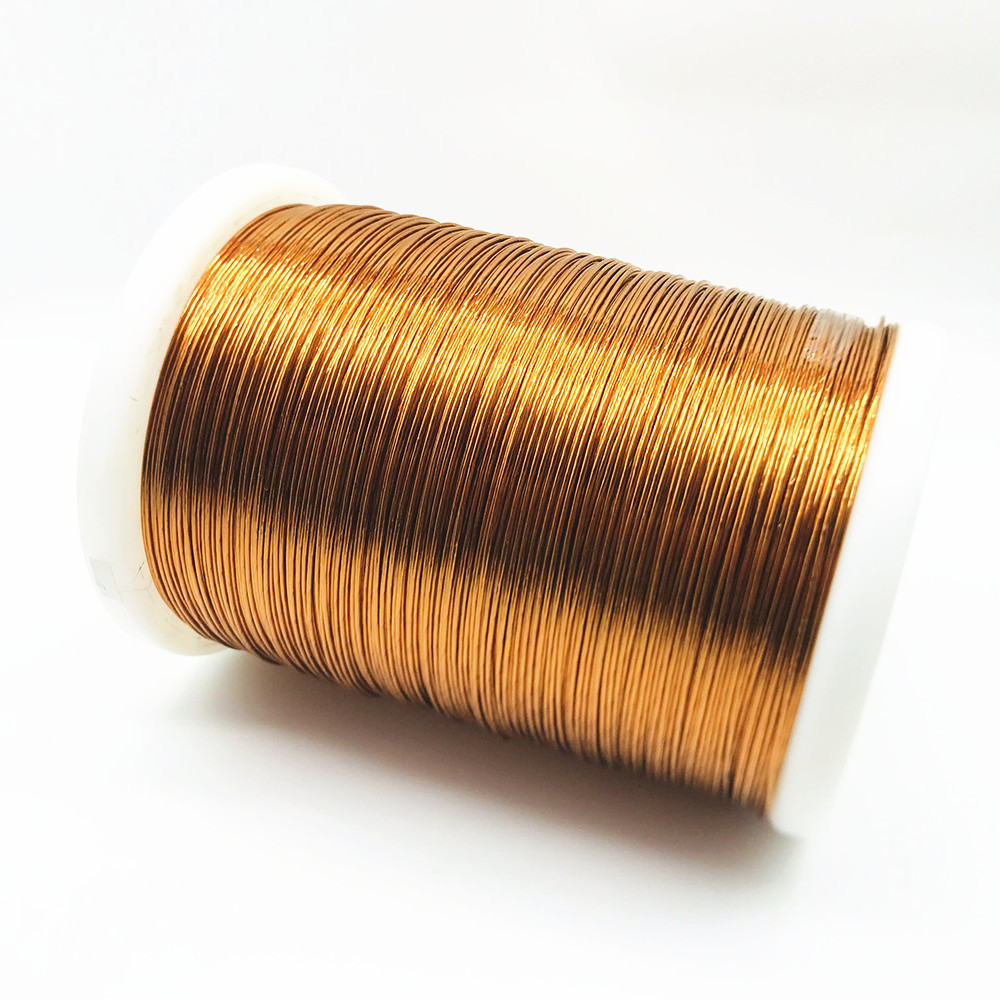

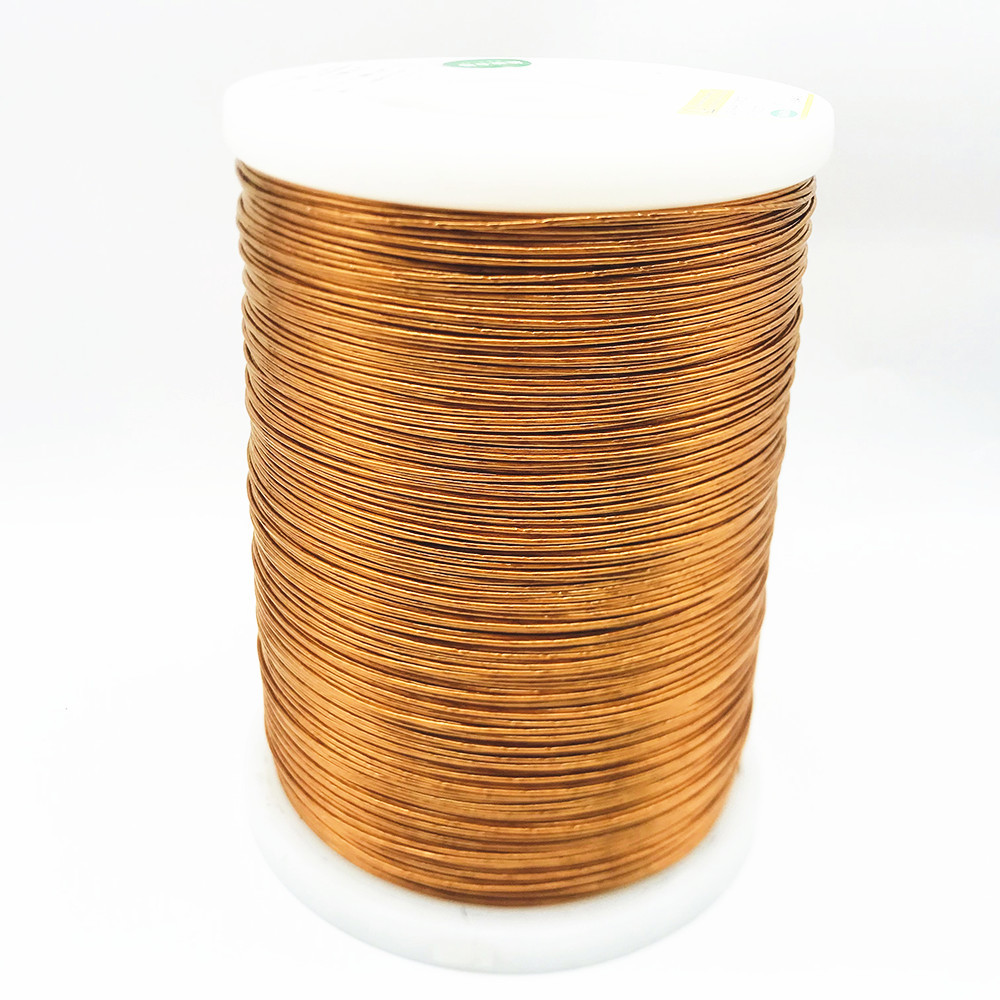

0.1mm*200 Polyester Film Litz Wire Kapton Taped Litz Wire



The size range we can make is 0.03-0.8mm, and NO.of strands is 2-4000. Sometimes customer need twist the wire with multiple twisting, we can make according to you request.



Test report: 0.10mm x 200strands, thermal grade 155
Item
Standard
Test result
Single wire diameter mm
0.10±0.003
0.098
Overall diameter
Min. 0.116mm
0.221
Mini breakdown voltage
1100kv
5000kv
Pitch
28mm
28mm
Overlap(%)
50%
yes



0.1mm * 200 Polyester Film Copper Litz Cable Kapton Taped 0
