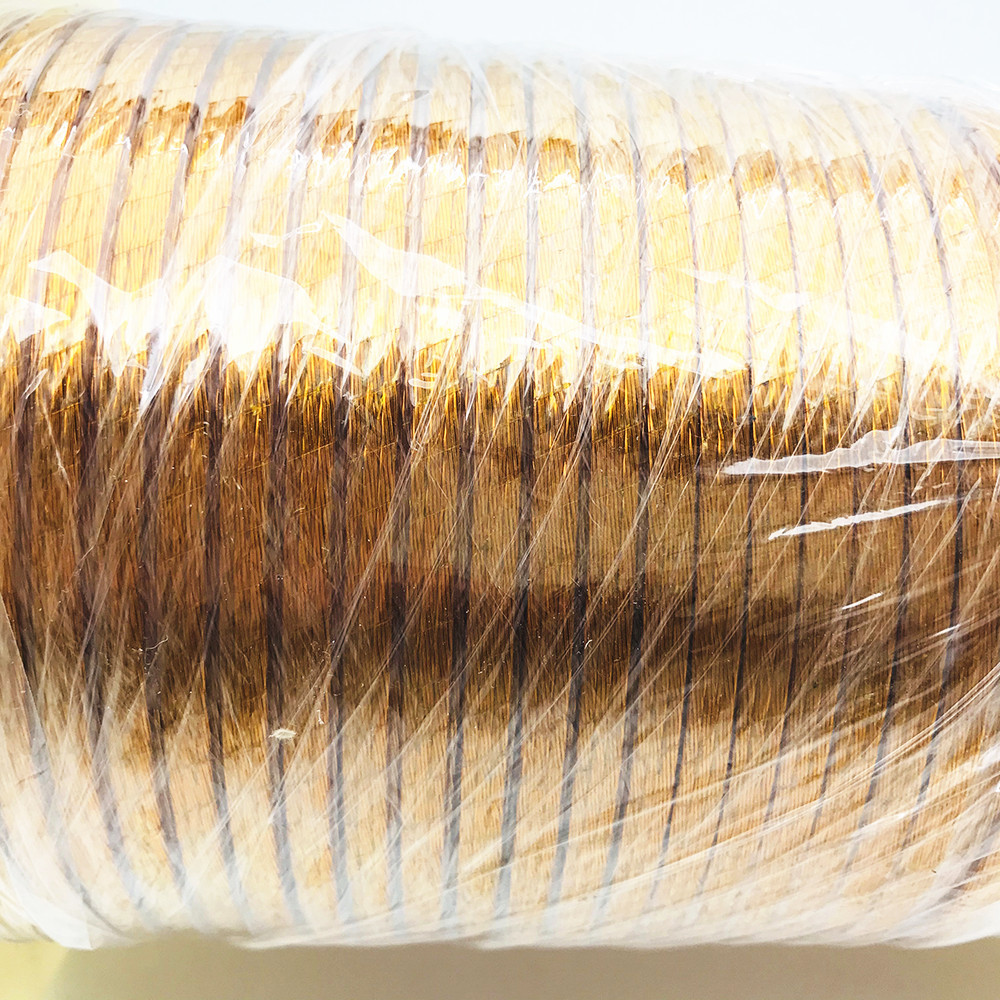

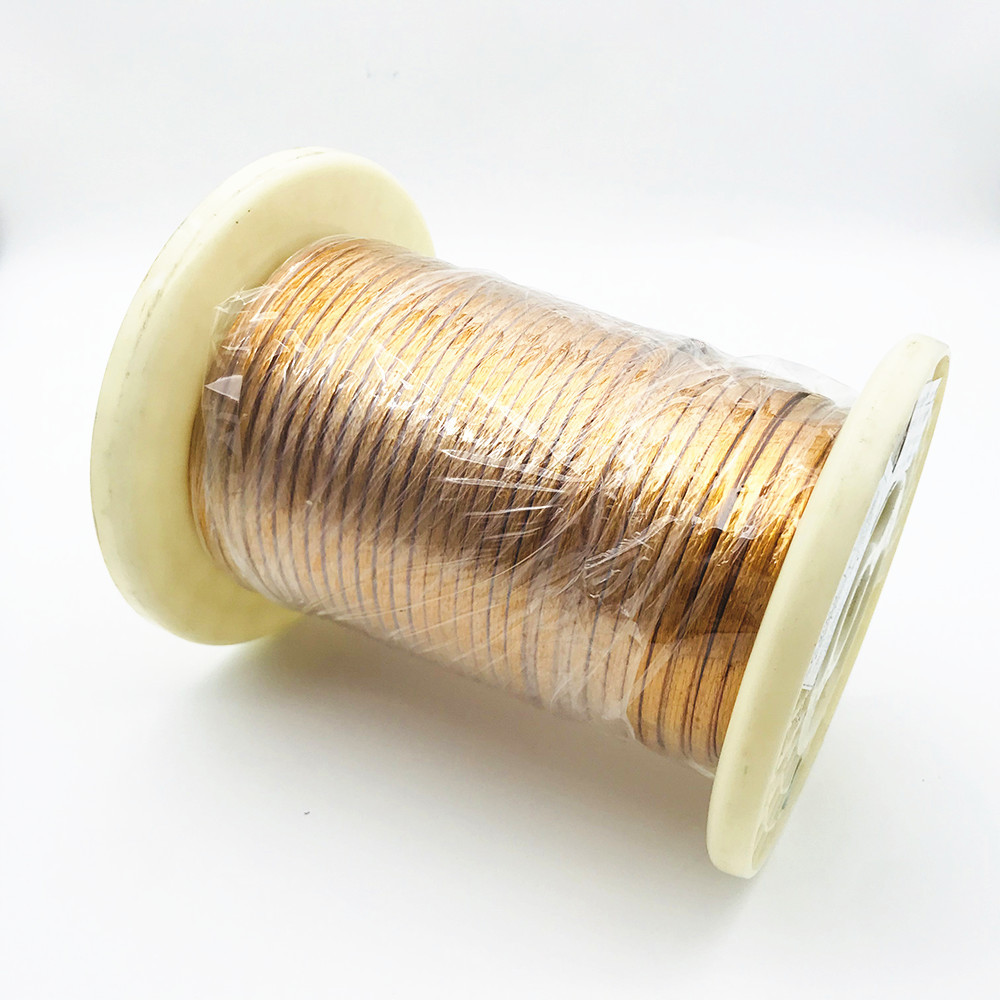

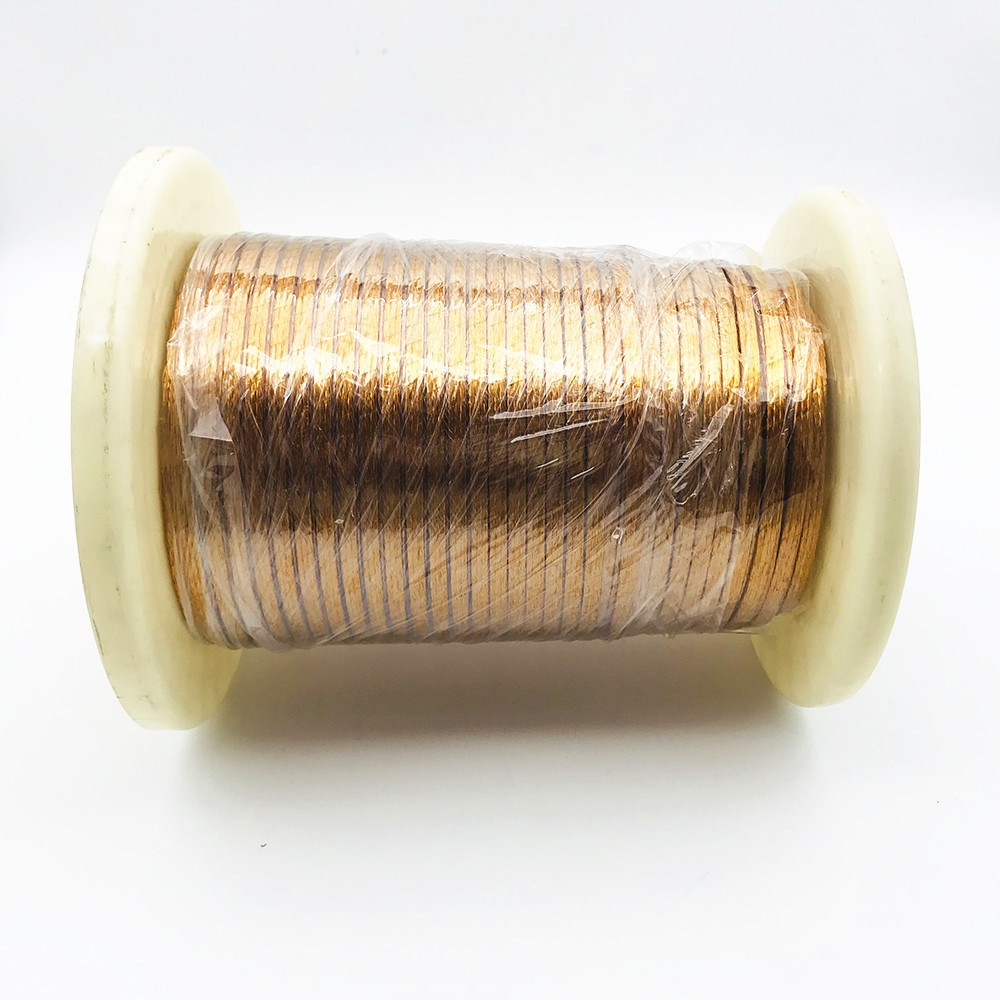

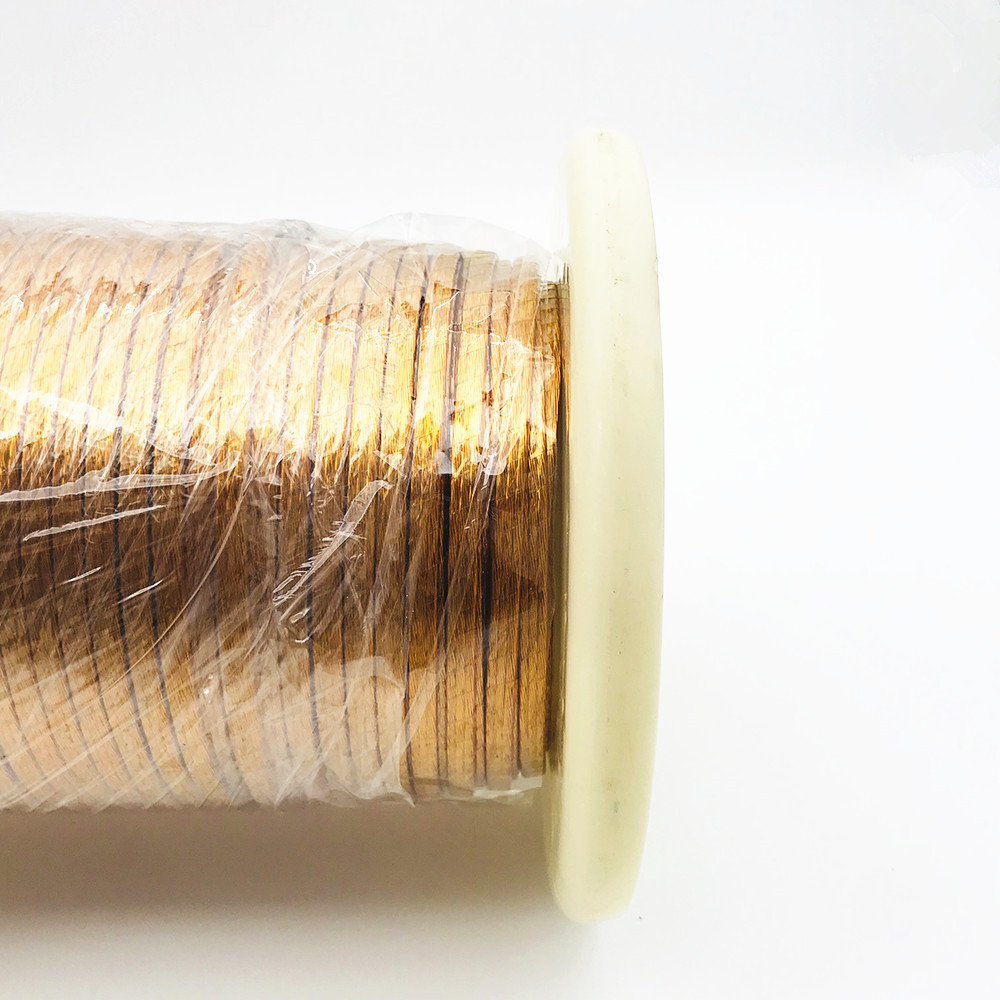

0.25mm * 36 180 Degree Stranded Copper Cable Mylar Film Profiled Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.25mm * 12 * 3

Minimum Order Quantity:	20Kilogram/Kilograms
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	100Ton/Month

Get Best Price Contact Now

Detail Information

Product Name:	Profiled Litz Wire	Thermal Class:	180
Insulation:	PI Film	Overall Diameter:	2.86mm*1.2mm
Strands:	36	Conductor Diameter:	0.25mm
Highlight:	0.25mm stranded copper cable , mylar stranded copper cable , 0.25mm stranded copper wire

Product Description

0.25mm * 36 180 Degree Stranded Copper Cable Mylar Film Profiled Litz Wire

Litz wire employs a stranded wire with individually insulated conductors (forming abundle), served with polyester or nylon is characterized by an increase in mechanical performance and excellent dimensional stability.

Possibilty to customize the litz wire according to your needs.

Product	Profiled litz wire
Specification	0.25123(2.86*1.2)	Test result
single wire overall diameter(mm)	0.268-0.284	0.273-0.278
Single wire diameter(mm)	0.25±0.004	0.247-0.249
Breakdown Voltage	Min.2500V	5000
Conductor Resistance	≤ 0.01028Ω/m	0.01000
