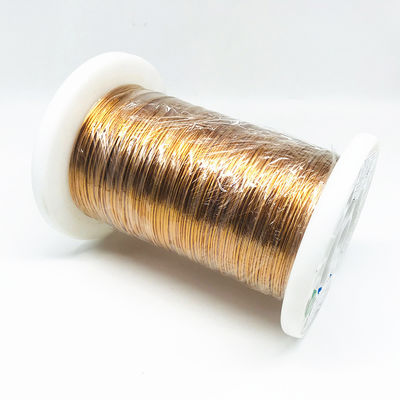

0.1mm X 200 6000v High Voltage Copper Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.1mm*200

Minimum Order Quantity:	20Kilogram/Kilograms
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	1Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Taped Litz Wire	Single Wire Diameter:	0.1mm
No. Of Strands:	200	Cover:	PI ( Overlap 50%)
Breakdown:	≥6000V
Highlight:	high voltage copper litz wire , 6000v copper litz wire , 6000v 0.1 mm copper wire

Product Description

0.1mm x 200 6000V High Voltage Taped Litz Wire Enameled Mylar Copper Wire

Taped high frequency litz wire constructions are mainly suitable for applications requiring a high break down voltage. Taping gives litz wire improved capability to withstand flexing and mechanical stress. Self-adhesive tape material increases protection against re-opening during and after manufacturing processes and thus secures the compliance with defined creepage distance.
Some tapes can be thermally sealed, when used in conjunction with certain wire enamel types.

Characteristics	Technical requests	Test Results
Inner diameter	0.100±0.003 mm	0.100
Thickness of coating	≥ 0.008mm	0.014
Outer diameter	≤ 0.117mm	0.114
Twist direction	S/Z	Z
Strands	200	200
Twist Pitch	34±3 mm	33.3
Breakdown Voltage	≥6000V	8000V
Conductor Resistance	≤ 12.01Ω/km	11.052
Solderability	YES	YES
Overlapping Rate	33%/50%/60%	50%
