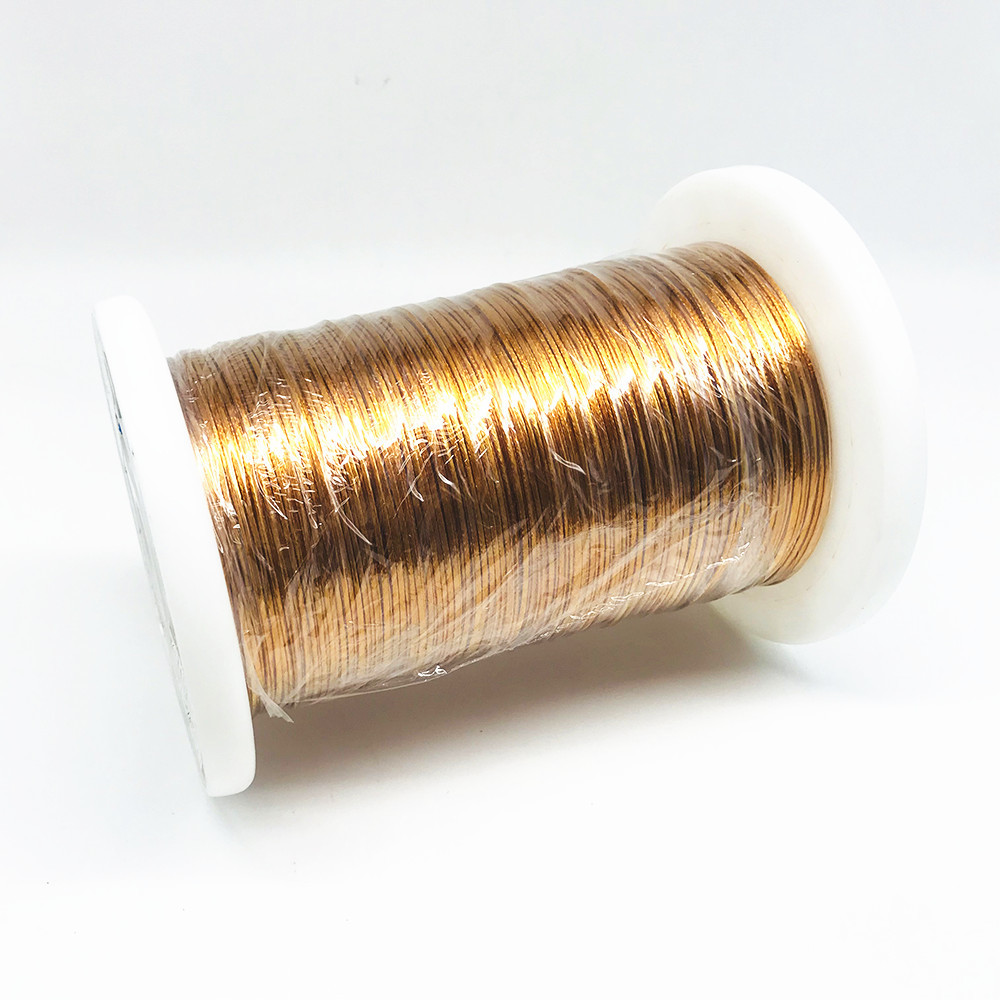

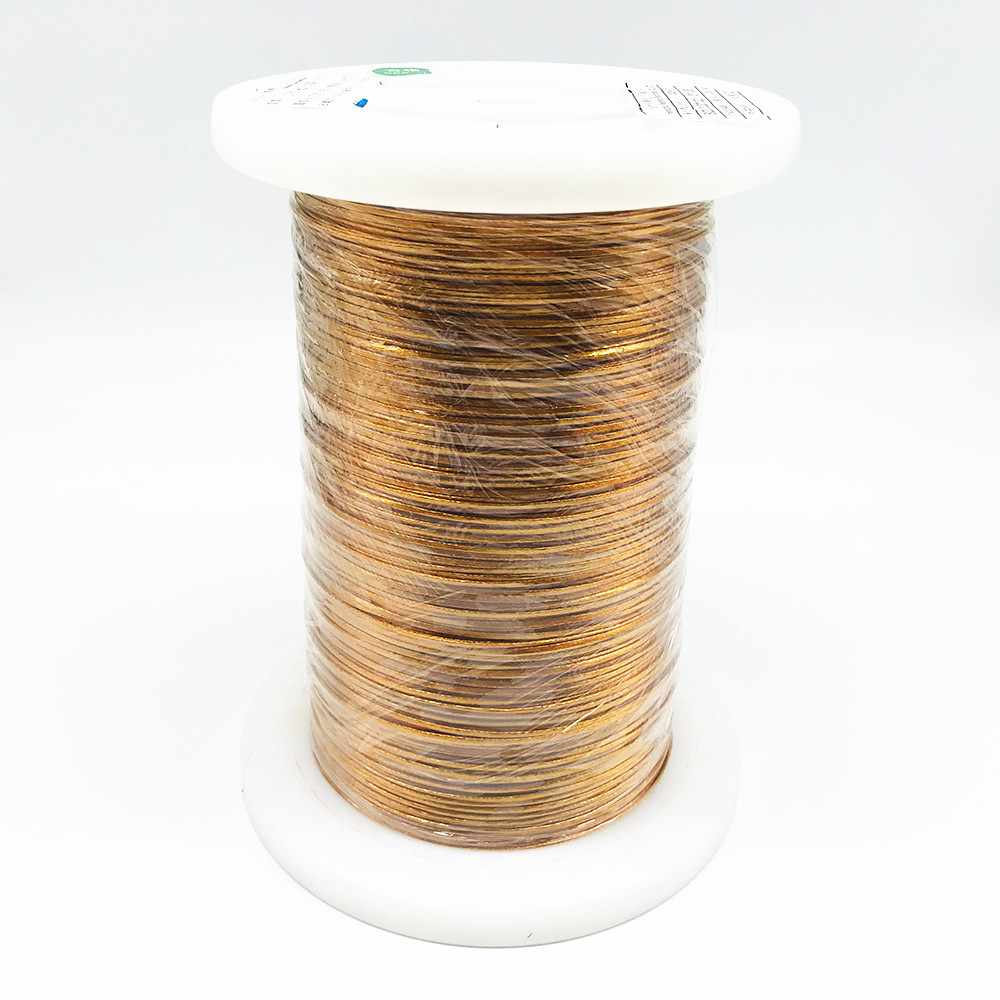

Pi Cover 0.2mm X 200 High Temperature Copper Litz Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.2x200
Minimum Order Quantity: 20Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 100Ton/week
Detail Information
Product Name: Taped Litz Wire Single Wire Diameter: 0.2mm
No. Of Strands: 200 Cover: PI ( Overlap 50%)
Breakdown: ≥6800V
High Light:

high temperature copper litz wire

,

0.2mm x 200 copper litz wire

,

litz 0.2 mm copper wire


Product Description

0.2mm x200 High Temperature Stranded Taped litz Wire Insulated Copper Mylar Litz Wire

Taped high frequency litz wire constructions are mainly suitable for applications requiring a high break down voltage. Taping gives litz wire improved capability to withstand flexing and mechanical stress. Self-adhesive tape material increases protection against re-opening during and after manufacturing processes and thus secures the compliance with defined creepage distance.
Some tapes can be thermally sealed, when used in conjunction with certain wire enamel types.



Characteristics
Technical requests
Test Results
Conclusion
Sample 1
Surface
Good
OK
OK
Breakdown Voltage
≥6800V
9160
OK
Pinhole Test
≤ 20 hole/6m
0
OK
Outer diameter
≤ 0.226 mm
0.221
OK
Inner diameter
0.2±0.003 mm
0.2
OK
Thickness of Mylar film(+0.002mm)
0.008 mm
0.009
OK
Overlapping Ratio
>33%
50%
OK
Direction
Bunch
Left
OK
OK
Film cover
Left
OK
OK
Conductor Resistance
≤ 2.913Ω/km
2.462
OK
Pitch
68±3 mm
70
OK



Pi Cover 0.2mm X 200 High Temperature Copper Litz Wire 0
