0.1mm X 851 Taped Mylar Wire For Transformer

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.1mm x 851
Minimum Order Quantity: 20Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 100Ton/week
Detail Information
Product Name: Taped Litz Wire Single Wire Diameter: 0.1mm
No. Of Strands: 851 Cover: PI ( Overlap 50%)
Breakdown: 6000V
High Light:

transformer mylar wire

,

mylar cable for transformer

,

mylar wire for transformer


Product Description

0.1mm x 851 Taped Litz Wire Enameled Copper Stranded Mylar Litz Wire For Transformer

Taped high frequency litz wire constructions are mainly suitable for applications requiring a high break down voltage. Taping gives litz wire improved capability to withstand flexing and mechanical stress. Self-adhesive tape material increases protection against re-opening during and after manufacturing processes and thus secures the compliance with defined creepage distance.
Some tapes can be thermally sealed, when used in conjunction with certain wire enamel types.



Description
Taped Litz Wire -PI 0.10*851
Conductor diameter(mm)
0.10
Conductor diameter tolerance (mm)
±0.003
Maximal overall diameter (mm)
5.06
Thermal Class
155
Strand number
851
Pitch(mm)
97
Stranding direction
S
Insulation Layer
PI
Material specs(mm*mm or D)
0025*15
Times of Wrapping
1
Overlap(%)
76
Wrapping direction
Z
Max resistance (Ω/m at20℃)
0.00279
Min breakdown voltage
6000

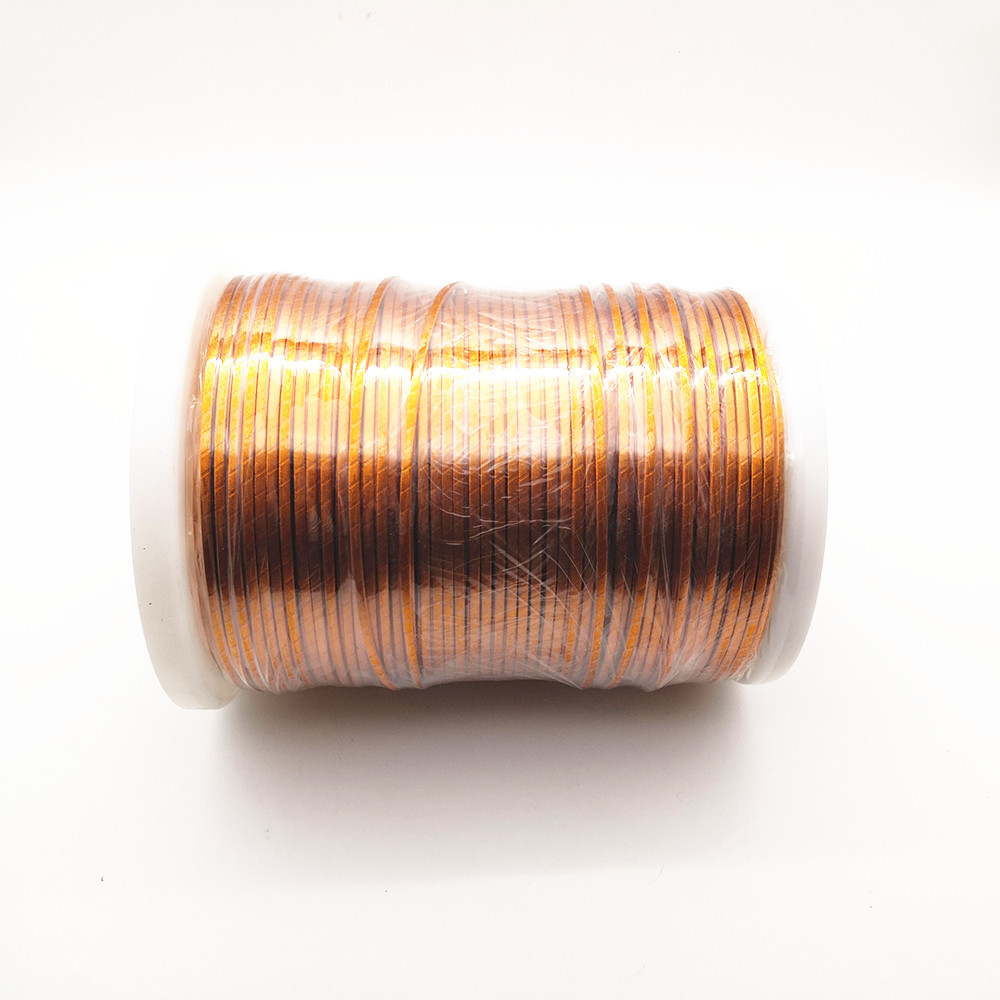

0.1mm X 851 Taped Mylar Wire For Transformer 0
