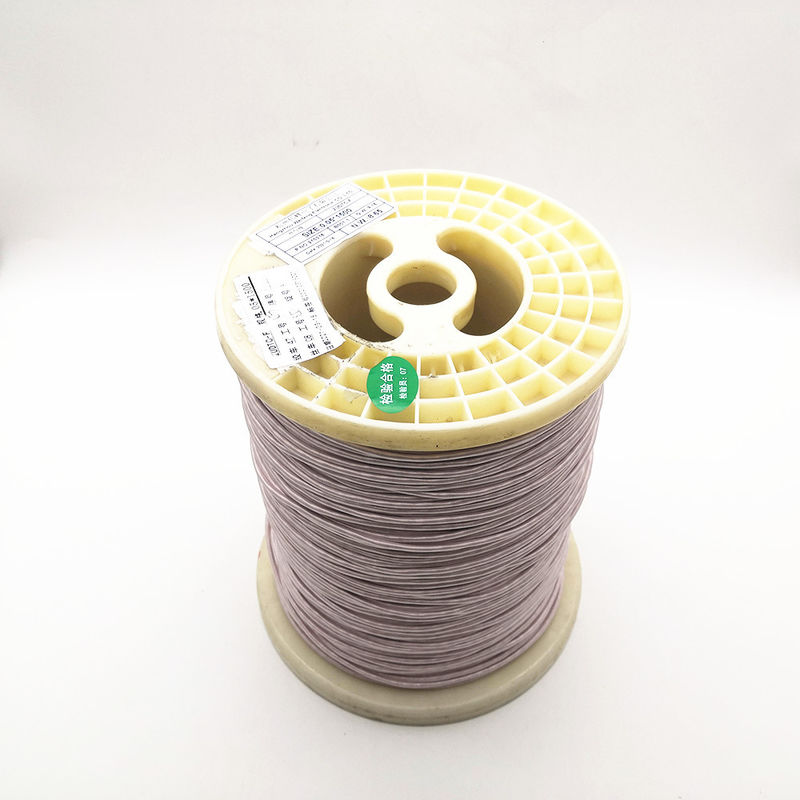

0.04mm * 420 1300V Enameled Stranded Copper Wire Silk Covered Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	Ruiyuan
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Model Number:	0.04mm * 420

Minimum Order Quantity:	20Kilogram/Kilograms
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	2-15 days
Payment Terms:	Negotiation
Supply Ability:	10Ton/week

Get Best Price Contact Now

Detail Information

Product Name:	Silk Covered Litz Wire	Single Wire Diameter:	0.04mm
No. Of Strands:	420	Breakdown Voltage:	1300v
Thermal Grade:	155	Jacket:	Nylon
Highlight:	1300v stranded copper wire , 1300v stranded copper wire , litz stranded copper wire

Product Description

1USTCF 0.04mm * 420 1300V High Frequency Enameled Stranded Copper Wire Silk Covered Litz Wire

Characteristics	Technical requests	Test Results
Conductor diameter(mm)	0.04±0.002	0.038	0.040
Overall conductor diameter(mm)	0.048-0.076	0.049	0.053
No. Of strands	420	√	√
Maximum outer diameter(mm)	2.17	1.17	1.23
Pitch(mm)	27±3		√
Maximum Resistance(Ω/m 20℃)	0.03731	0.0332	0.0331
Minimum Breakdown Voltage(V)	1100	2800	3100
Solderability	390±5℃, 9s	√	√
Pinhole(faults/6m)	Max. 41	6	4
