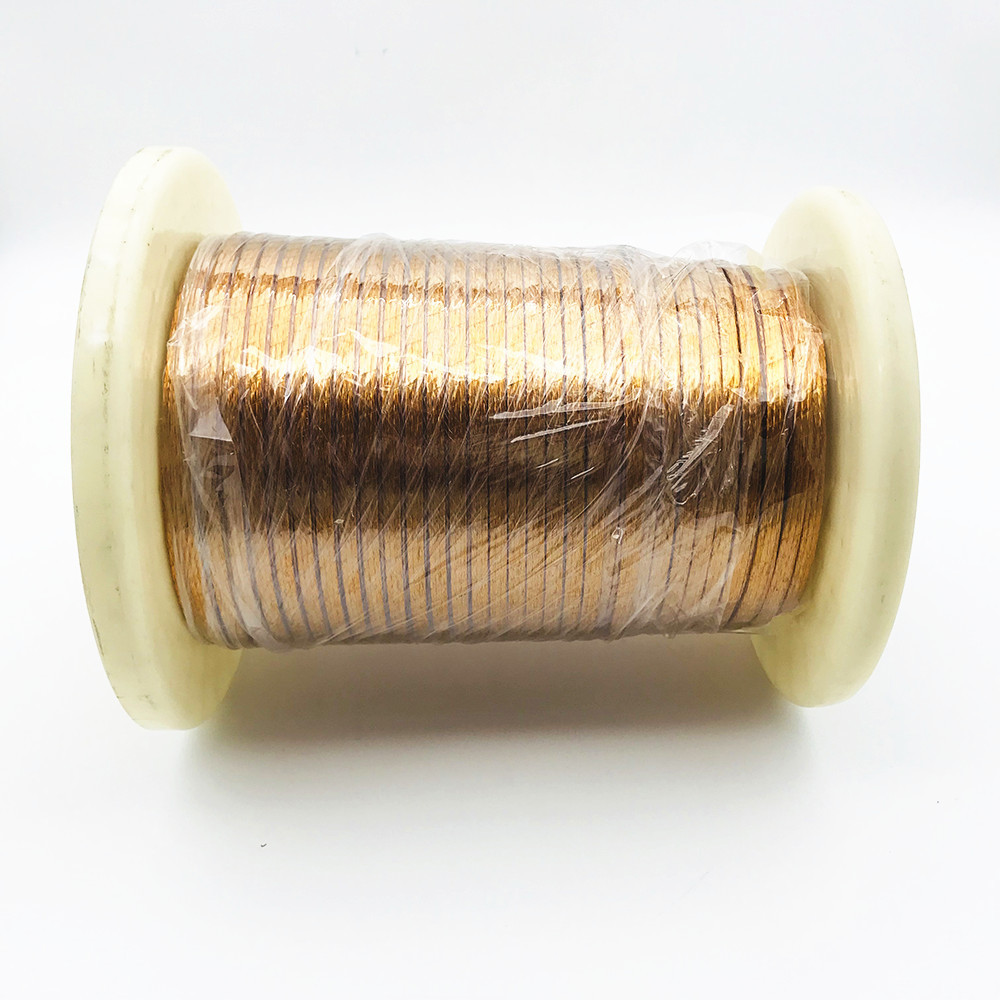

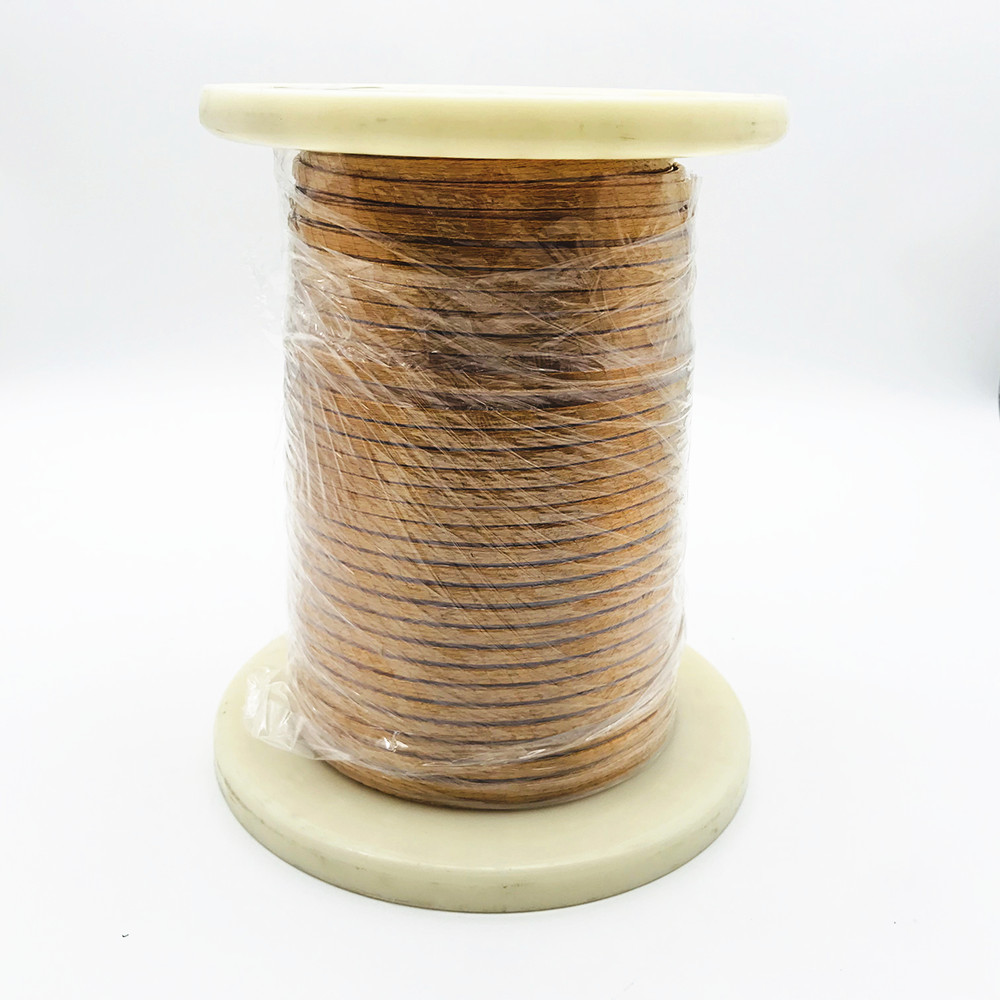

RoHS 0.4mm * 45 Strands Taped Copper Litz Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.4*45
Minimum Order Quantity: 10 Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 100Ton/week
Detail Information
Product Name: Profiled Litz Wire Single Wire Diameter: 0.4mm
No. Of Strands: 45 Stranding Method: 15*3
Overall Diameter: 5mm * 2mm Thermal Grade: 155
Voltage: Min. 6000V Cover: PI ( Overlap 51%)
High Light:

Taped Copper Litz Wire

,

0.4mm Copper Litz Wire

,

RoHS Copper Litz Wire


Product Description

0.4mm * 45 Strands Taped Litz Wire 5mm * 2mm Profiled Copper Litz Wire For Motor



The size range we can make is 0.03-0.8mm, and NO.of strands is 2-4000. Sometimes customer need twist the wire with multiple twisting, we can make according to you request.



  • Fast delivery within 5 days.
  • 2 years quality assurance.
  • Free reture.
  • Quick reply in 30 minitue.







Test report: 0.4mm x 15 x 3(5 x2)

Standard
       Test result
Conductor diameter(mm)
0.40±0.005
0.396-0.400
Single wire diameter(mm)
0.417-0.439
0.427-0.432
  Width(mm)       5    5.02-5.18
  Thickness(mm)       2    1.97-2.07
No. of strand
45
45
Max resistance(Ω/m at20℃)
Max. 0.003149
0.00308
Mini breakdown voltage(V)
Min.6000
11800
