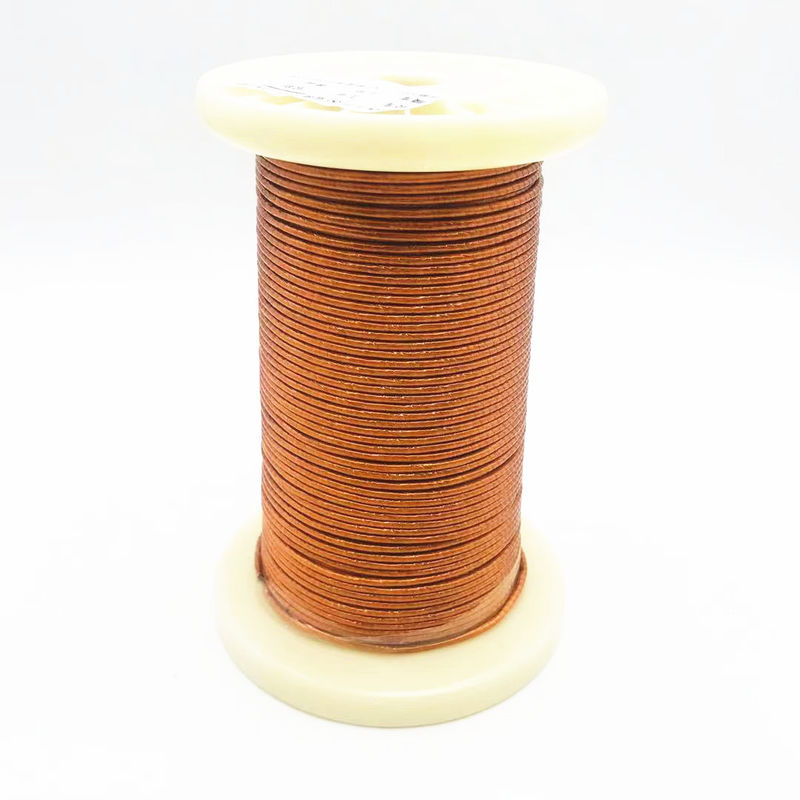

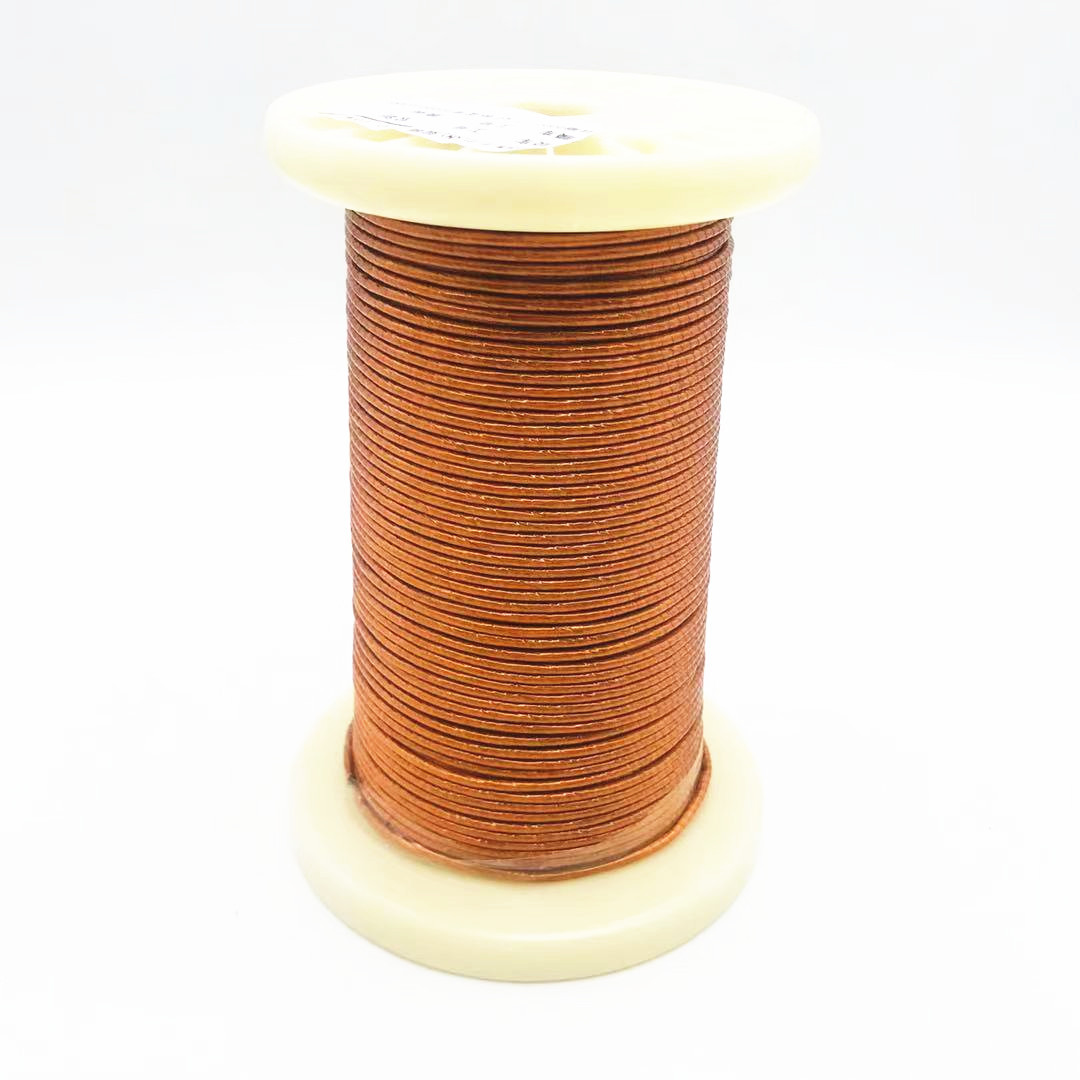

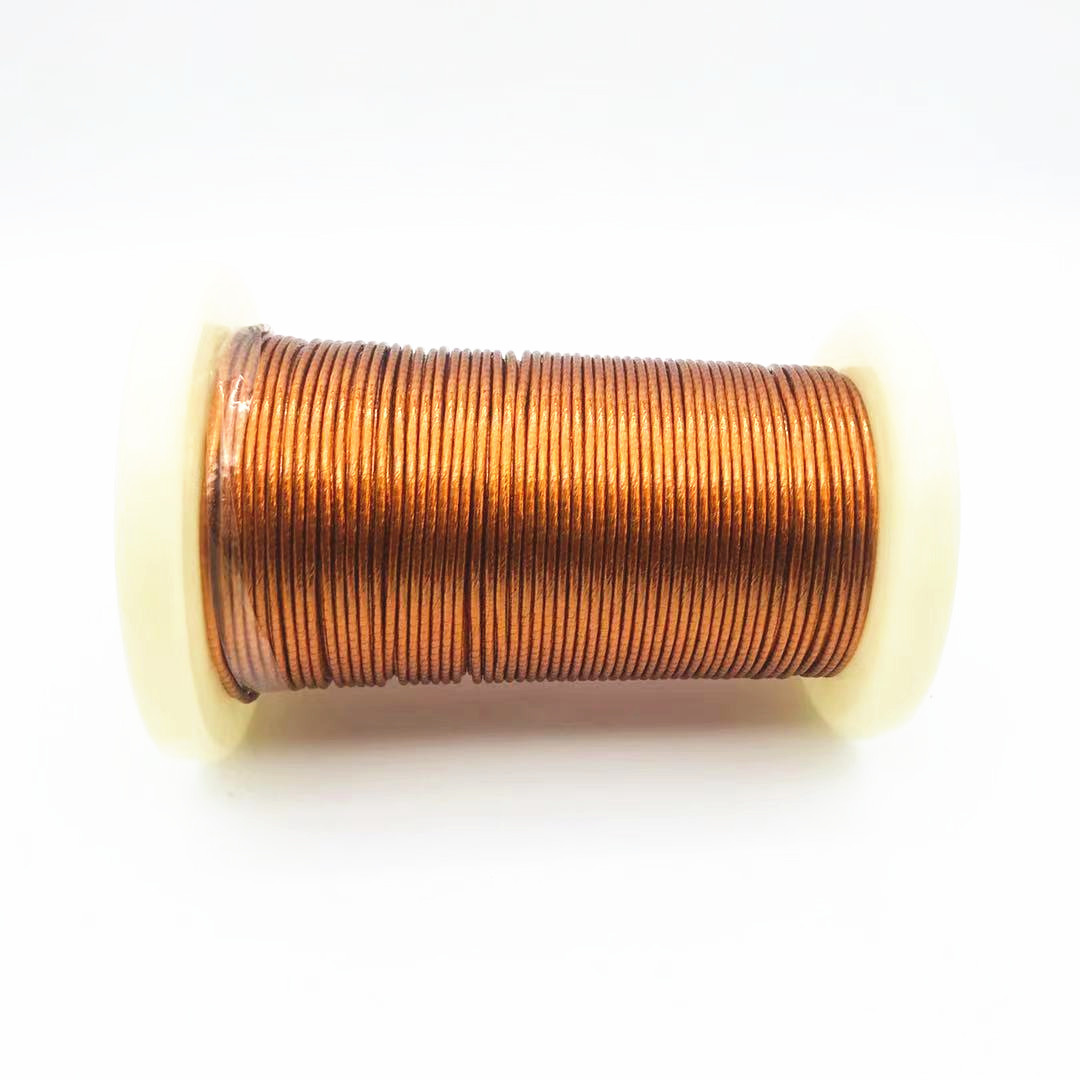

RoHS Awg38/1500 Mylar High Frequency Litz Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: AWG38/1500
Minimum Order Quantity: 20Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: Negotiation
Detail Information
High Light:

mylar high frequency litz wire

,

awg38 high frequency litz wire

,

awg38 mylar wire


Product Description

AWG38/1500 Mylar LLitz Wire Kapton Stranded Wire High Frequency Copper Taped Litz Wire



Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). Each thin conductor is less than a skin-depth, so an individual strand does not suffer an appreciable skin effect loss. The strands must be insulated from each other—otherwise all the wires in the bundle would short together, behave like a single large wire, and still have skin effect problems. Furthermore, the strands cannot occupy the same radial position in the bundle over long distances: the electromagnetic effects that cause the skin effect would still disrupt conduction. The weaving or twisting pattern of the wires in the bundle is designed so that the individual strands are on the outside of the bundle for a distance (where the EM field changes are smaller and the strand sees low resistance), and are inside for a distance (where the EM field changes are the strongest and the resistance is higher). If each strand has a comparable impedance, current is distributed equally among every strand within the cable. This allows the interior of the litz wire to contribute to the overall conductivity of the bundle.



Features:

1. Increased efficiency
2. Mitigation of skin and proximity effect
3. Minimum eddy current losses
4. Lowered operating temperatures
5. Reduced footprint of final product
6. Substantial weight reduction
7. Avoidance of "hot spots"





RoHS Awg38/1500 Mylar High Frequency Litz Wire 0







Test report: 0.10mm x 1500strands, thermal grade 155
Item
Standard
Test result
Single wire diameter mm
0.107-0.125
0.110-0.114
Conductor diameter
0.10±0.003
0.098-0.10
Max.O.D. mm
6.61
5.15-5.33
Max. Resistance Ω/m at20℃
0.001587
0.001462
Mini breakdown voltage
6000
12000
Pitch
/
110
Overlap(%)
/
55
