40AWG 0.08mm * 24 Strands Mylar Wire PET Coat For Motor

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.08mm * 24
Minimum Order Quantity: 20Kilogram/Kilograms
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: Negotiation
Detail Information
Product Name: Mylar Wire Single Wire Diameter: 0.1mm / AWG 38
No. Of Strands: 24 Thermal Grade: 155
Insulation Film: PET
High Light:

40AWG Mylar Wire

,

Motor Mylar Wire

,

PET Coat Mylar Wire


Product Description

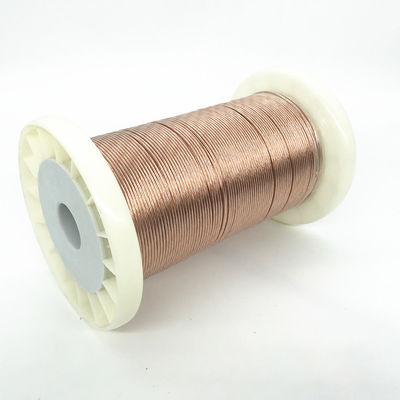

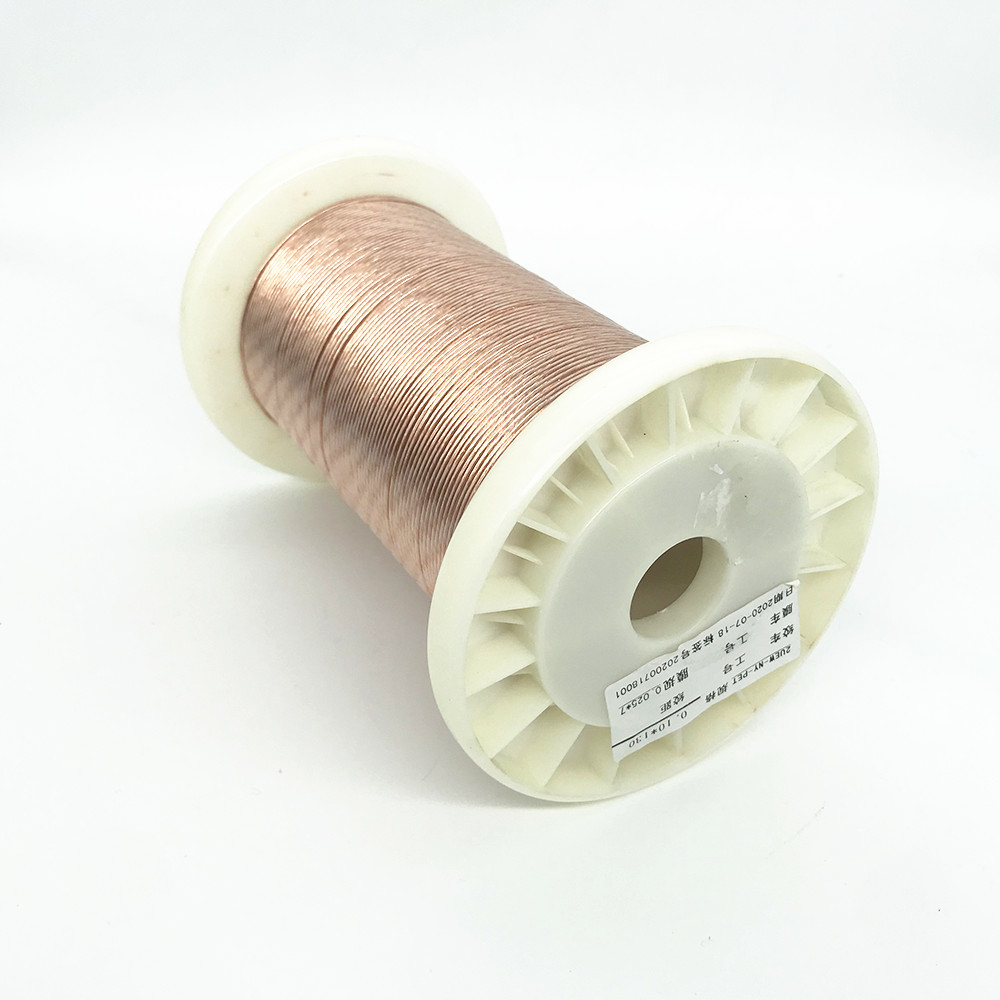

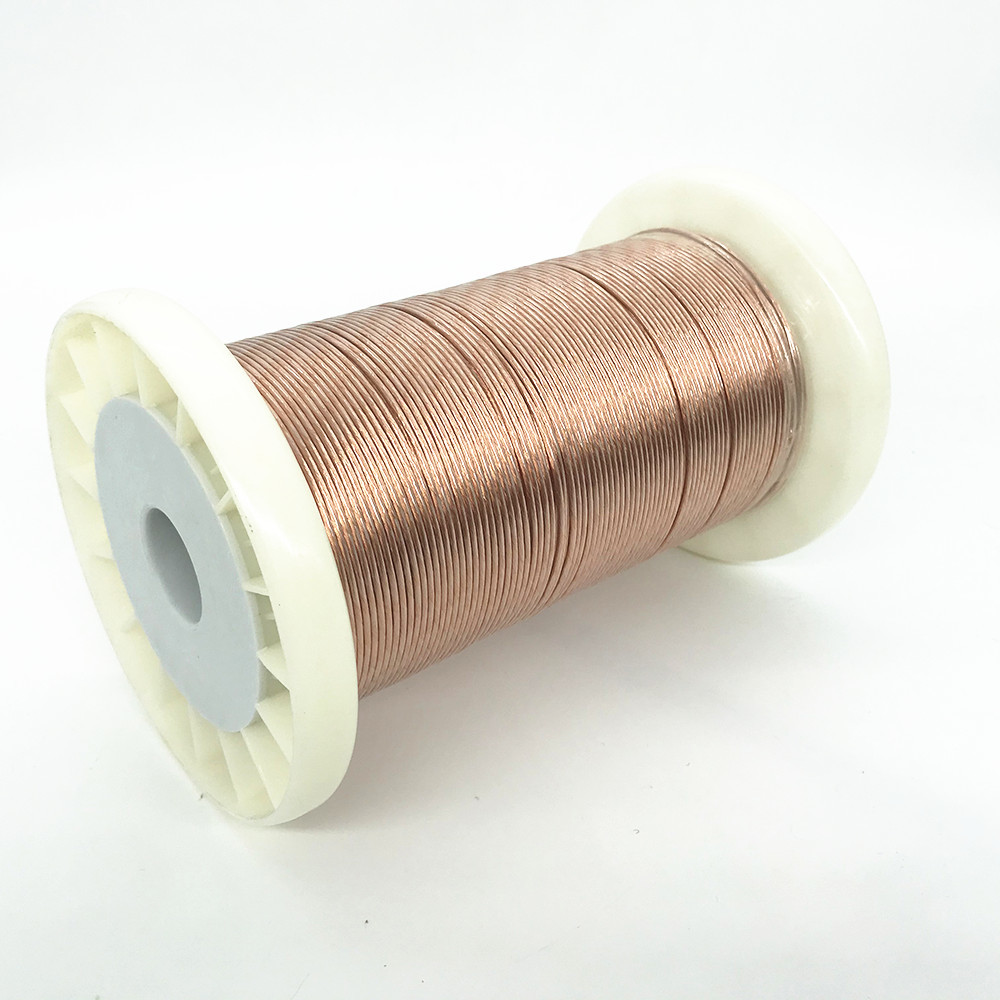

40AWG 0.08mm * 24 Strands Mylar Wire PET Coat Copper Litz Wire For Motor

Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). Each thin conductor is less than a skin-depth, so an individual strand does not suffer an appreciable skin effect loss. The strands must be insulated from each other—otherwise all the wires in the bundle would short together, behave like a single large wire, and still have skin effect problems.

Furthermore, the strands cannot occupy the same radial position in the bundle over long distances: the electromagnetic effects that cause the skin effect would still disrupt conduction. The weaving or twisting pattern of the wires in the bundle is designed so that the individual strands are on the outside of the bundle for a distance (where the EM field changes are smaller and the strand sees low resistance), and are inside for a distance (where the EM field changes are the strongest and the resistance is higher). If each strand has a comparable impedance, current is distributed equally among every strand within the cable. This allows the interior of the litz wire to contribute to the overall conductivity of the bundle.

40AWG 0.08mm * 24 Strands Mylar Wire PET Coat For Motor 0



Description

Conductor diameter*Strand number

0.08*24

Single wire



Conductor diameter(mm)0.080
Conductor diameter tolerance (mm)±0.003
Minimal insulation thickness(mm)0.005
Maximal overall diameter (mm)0.103
Thermal Class155





Strand Composition





Strand number24
Pitch(mm)20±3
Stranding directionS

Insulation layer



CategoryNylon
UL

/



Material specs(mm*mm or D)250+300
Times of Wrapping2
Overlap(%) or thickness(mm),min0.05
Wrapping directionS

Characteristics

Max O. D(mm)0.66
 Max pin holes 个/6m30
 Max resistance (Ω/Km at20℃)157.3
 Mini breakdown voltage (≧V )1100
 CertificateE229341
