0.1mm * 133 155 Grade Strands PET High Frequency Litz Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.1mm * 130
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product Name: Mylar Wire Single Wire Diameter: 0.1mm / AWG 38
Strands: 133 Thermal Grade: 155
Insulation Film: PET Conductor Material: Copper
High Light:

PET High Frequency Litz Wire

,

0.1mm High Frequency Litz Wire

,

AWG38 High Frequency Litz Wire


Product Description

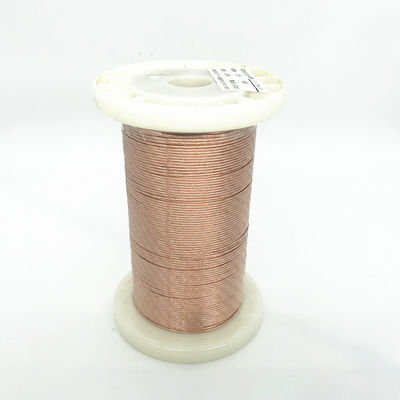

0.1mm * 133 155 Grade Strands PET Mylar Wire Stranded Copper Litz Wire



Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). Each thin conductor is less than a skin-depth, so an individual strand does not suffer an appreciable skin effect loss. The strands must be insulated from each other—otherwise all the wires in the bundle would short together, behave like a single large wire, and still have skin effect problems.



Furthermore, the strands cannot occupy the same radial position in the bundle over long distances: the electromagnetic effects that cause the skin effect would still disrupt conduction. The weaving or twisting pattern of the wires in the bundle is designed so that the individual strands are on the outside of the bundle for a distance (where the EM field changes are smaller and the strand sees low resistance), and are inside for a distance (where the EM field changes are the strongest and the resistance is higher). If each strand has a comparable impedance, current is distributed equally among every strand within the cable. This allows the interior of the litz wire to contribute to the overall conductivity of the bundle.





0.1mm * 133 155 Grade Strands PET High Frequency Litz Wire 0



  Description/conductor diameter*strand number 2UEW/155 0.10X133
Single wire Conductor diamter(mm) 0.100±0.003 mm 0.100mm
Minimal insulation thickness(mm) 0.008mm 0.013mm
Maximal overall diameter(mm) 0.117mm 0.113mm
Stranding direction S S
Strand number 133 133
Mini breakdown voltage(Ω/km 20℃) ≤18.06Ω/km 16.48Ω/km
