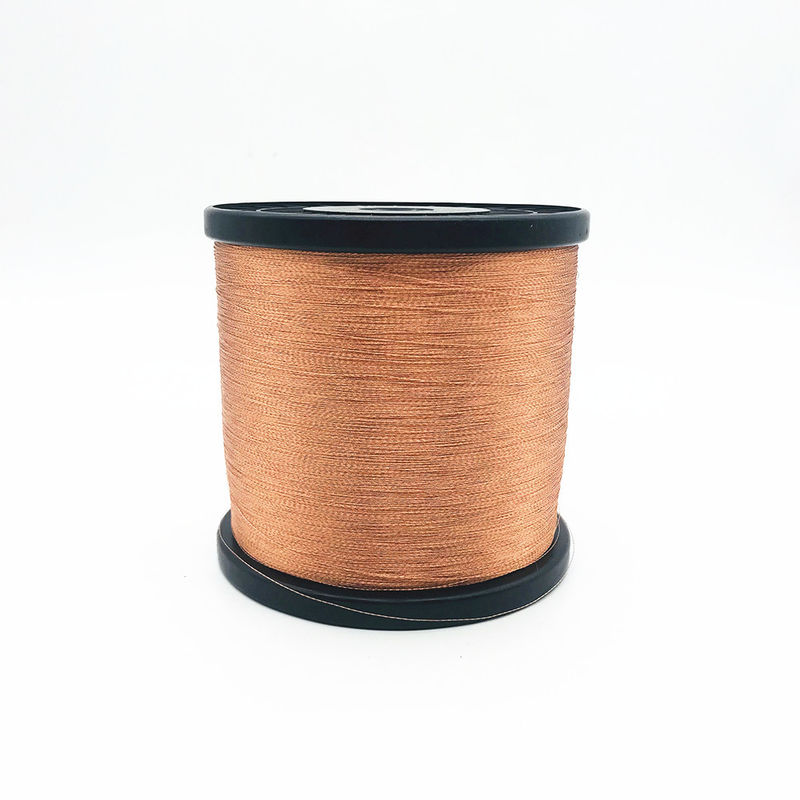

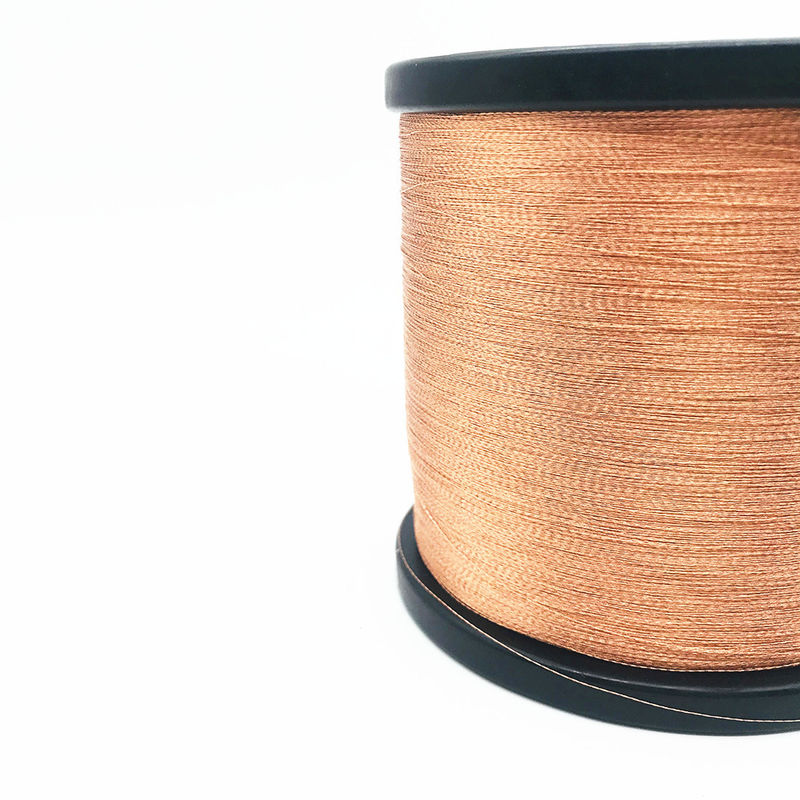

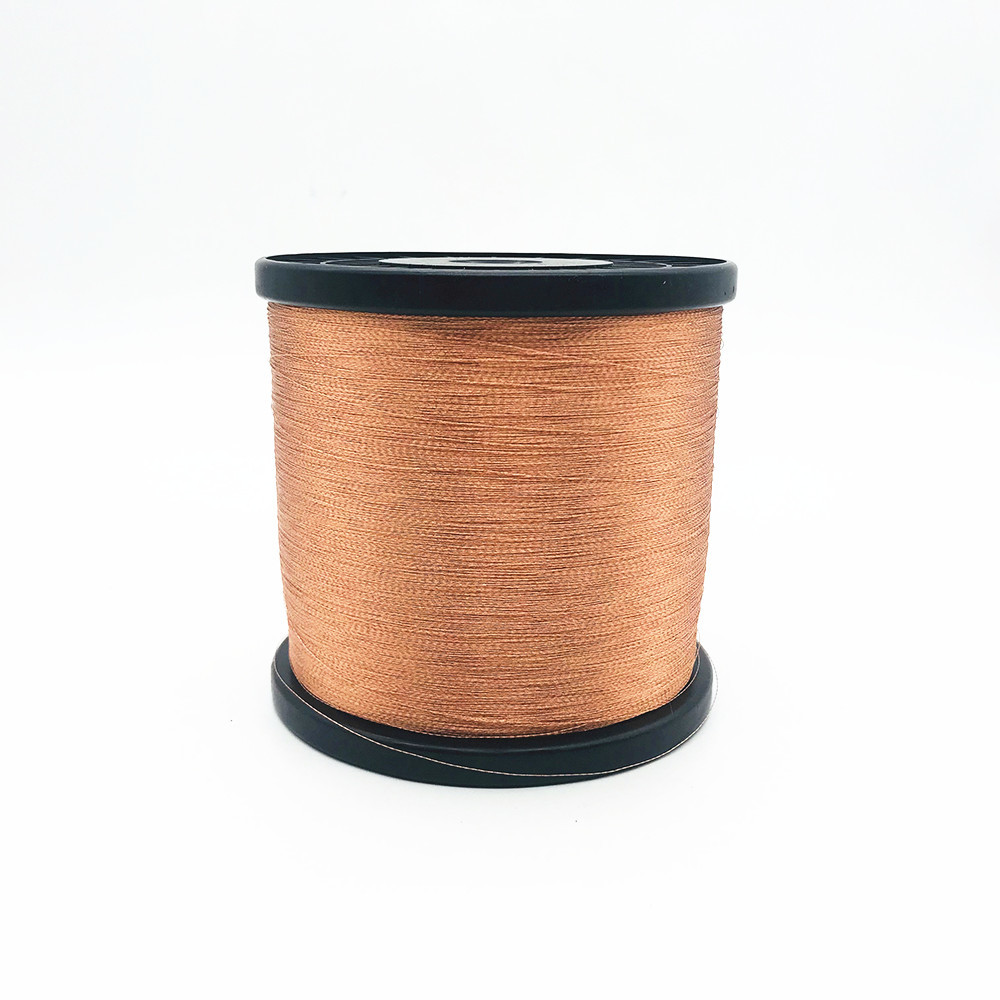

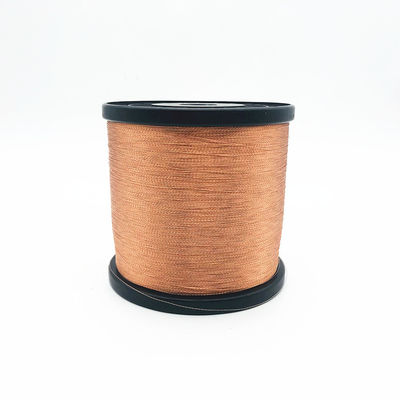

0.1mm Awg 38 Insulated Stranded Copper Litz Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.1*2
Minimum Order Quantity: 5kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product Name: Copper Litz Wire Single Wire Diameter: 0.1mm
Strands: 2 Voltage: ≥ 1.1 KV
Enamel Continuity: ≤ 3 Hole/6m Outer Diameter: 0.107-0.125 Mm
Inner Diameter: 0.1 Mm±0.003 Pitch: 3.5±1 Mm
High Light:

Insulated Stranded Copper Litz Wire

,

Awg 38 Copper Litz Wire

,

0.1mm Copper Litz Wire


Product Description

awg 38 0.1mm*2 Strands Copper Twisted Litz Wire Insulated Stranded Wire



Litz wire employs a stranded wire with individually insulated conductors (forming abundle). The strands must be insulated from each other.


We also manufacture silk covered litz wire, mylar wire, profiled litz wire.

0.1mm Awg 38 Insulated Stranded Copper Litz Wire 0





 Characteristics

Technical requests

Test Results

Conclusion

Sample

1

Surface

Good

OK

        OK

2 Breakdown Voltage ≥ 1.1 KV 2.4
3 Enamel Continuity ≤ 3 hole/6m 1
4 Outer diameter 0.107-0.125 mm 0.110-0.113
5 Inner diameter 0.1 mm±0.003 0.098-0.10mm
6 Conductor Resistance(20℃ Ω/Km) ≤1.191 1.101
7 Pitch 3.5±1 mm OK
8 Solderability 390±5℃/ 4 s OK
