| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.035mm |
| Minimum Order Quantity: | 10kgs |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Conductor Material: | Copper | Conductor Type: | Solid |
|---|---|---|---|
| Diameter: | 0.035mm | Thermal Class: | 155 |
| Insulation: | UEW | Port: | Tianjin |
| High Light: | Self Bonding Copper Coil Wire,0.035mm Copper Coil Wire,Class 155 Voice Coil Wire |
||

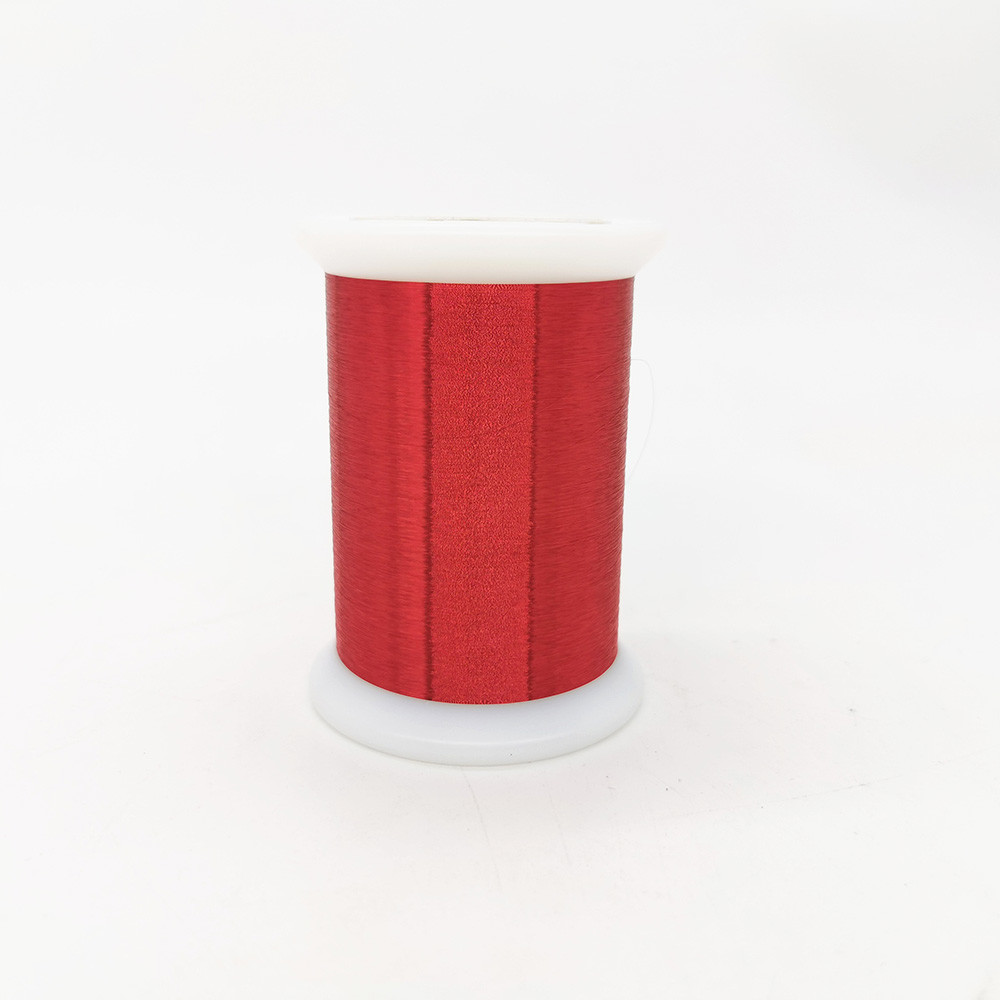

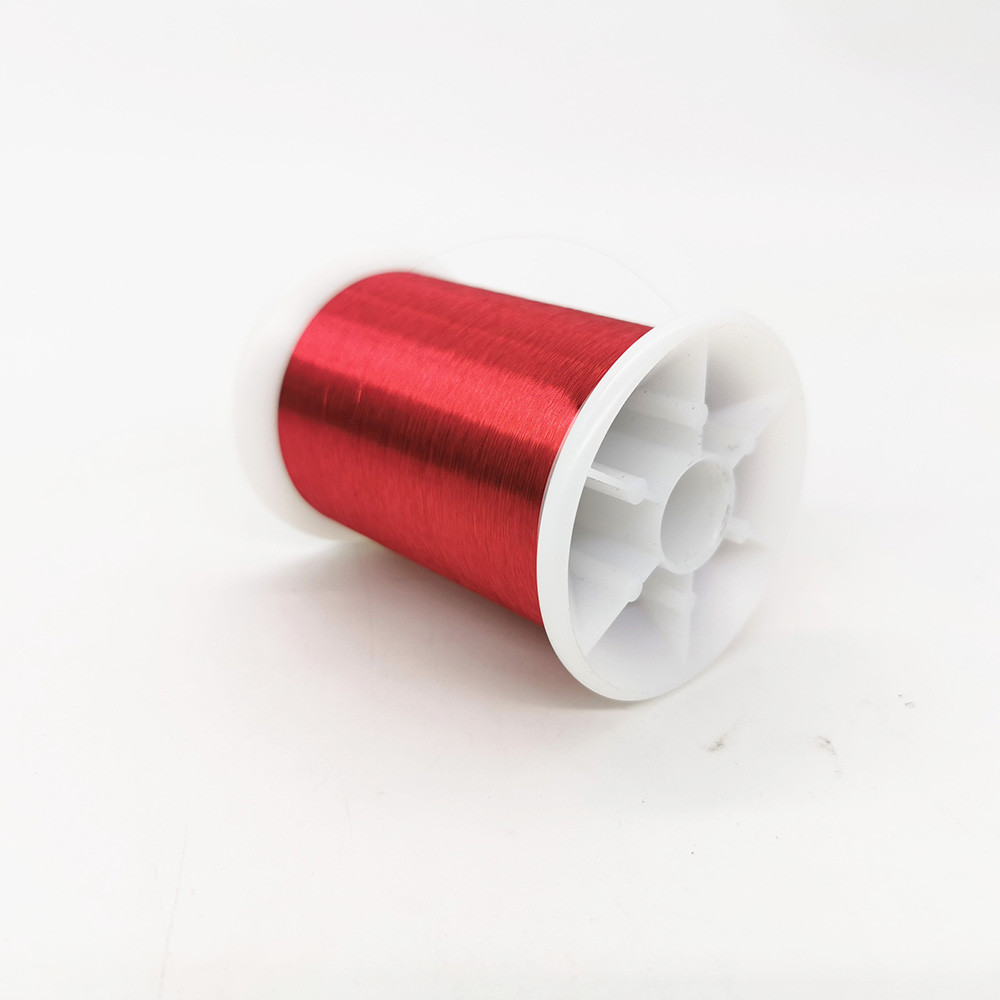

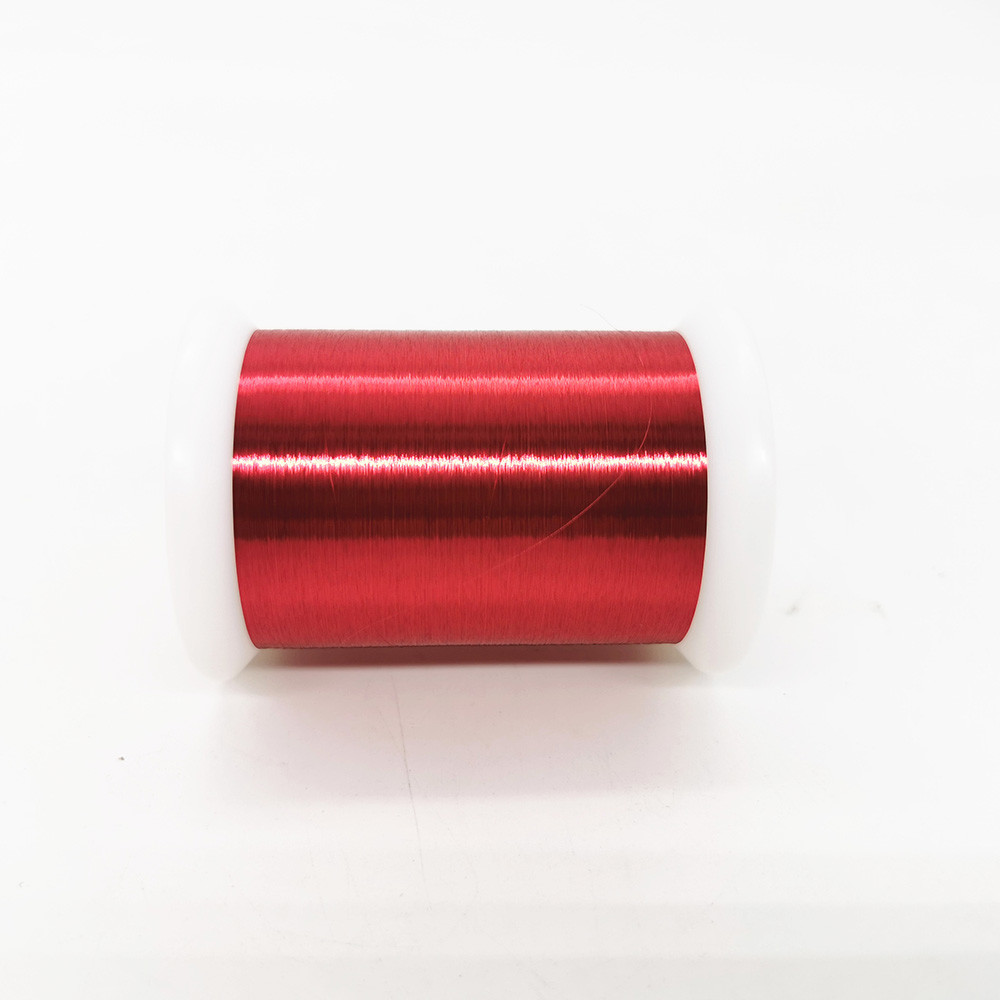

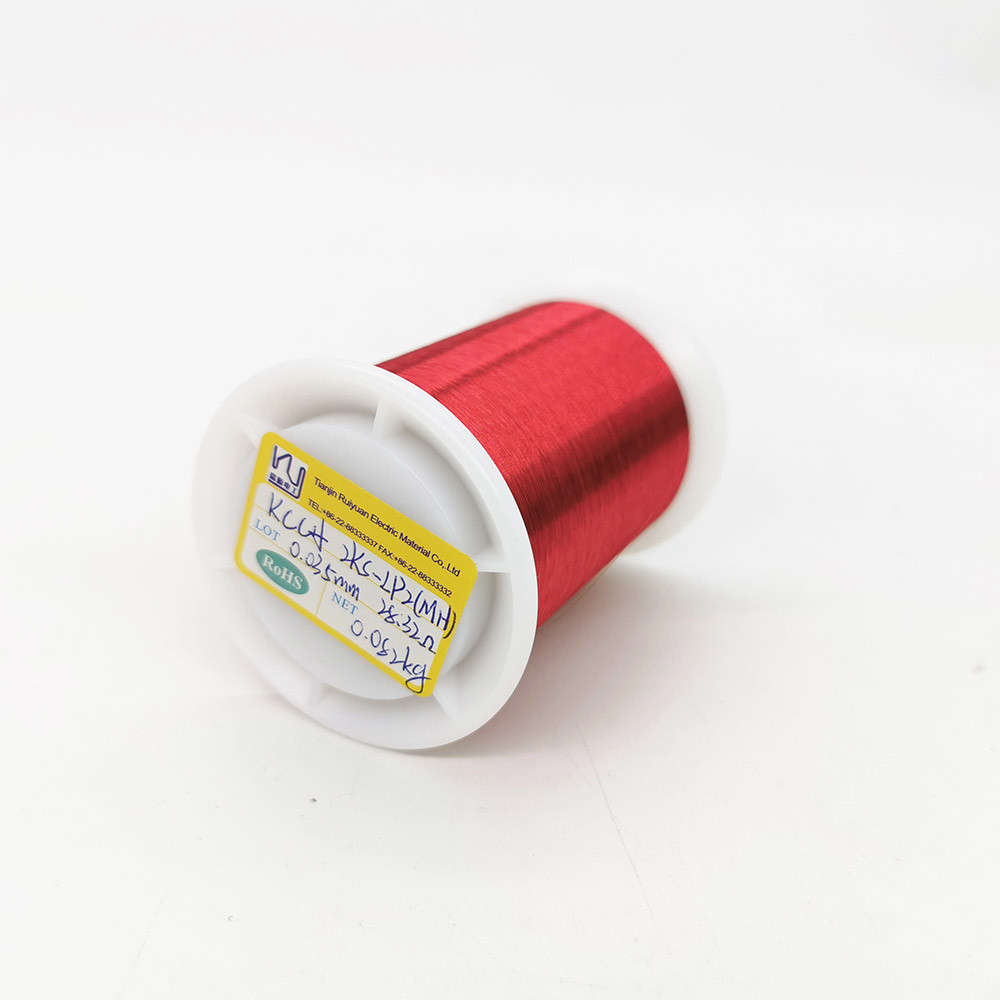

0.035mm CCA Wire Self Bonding Magnet Wire Voice Coil Wire
CCA is an electrical conductor composed of an inner aluminium core and outer copper cladding,The primary applications of this conductor revolve around weight reduction requirements. These applications include high-quality coils, such as the voice coils in headphones or portable loudspeakers; high frequency coaxial applications, such as RF antennas and cable television distribution cables; and power cables.
FEATRURES
Light weight. Only 50% of copper at the same length
Solderability
Good ductility and bending strength
High fidelity sound quality
APPLICATIONS
Micro voice coil speakers
Microphones,
buzzer
HIFI stereos
TEST REPOART
| Test Item | Unit | Standard Value | Reality Value | Remark | ||
| Min. | Ave. | Max. | ||||
| Conductor dimensions | mm | 0.035±0.001 | 0.035 | 0.035 | 0.035 | |
|
(Basecoat dimensions) Overall dimensions |
mm | Max.0.047 | 0.0465 | 0.0465 | 0.0465 | |
| Insulation Film Thickness | mm | Min. 0.002 mm | 0.003 | 0.003 | 0.003 | |
| Bonding Film Thickness | mm | Min.0.002 | 0.003 | 0.003 | 0.003 | |
| Continuity of covering(12V/5m) | Pcs | Max.3 | Max.0 | |||
| Flexibility | / | / | ||||
| Adherence | no crack | Good | ||||
| Breakdown Voltage | V | Min.425 | Min.1129 | |||
|
Resistance to Softening (Cut Through) |
℃ | Continue 2 times pass | 170℃/Good | |||
|
(375℃±5℃) Solder test |
s | Max.2 | Max. 1.5 | |||
| Bonding Strength | g | Min.5 | 9 | |||
| Electrical Resistance | Ω/m | 27.8-29.2 | 28.05 | 28.05 | 28.05 | |
| Elongation | % | Min.5 | 7 | 7 | 7 | |
| Breaking Load | N | Min | / | / | / | |
| Surface appearance | Smooth colory | Good | ||||
| Test Result: OK | Synthetic Evaluation: OK | |||||
