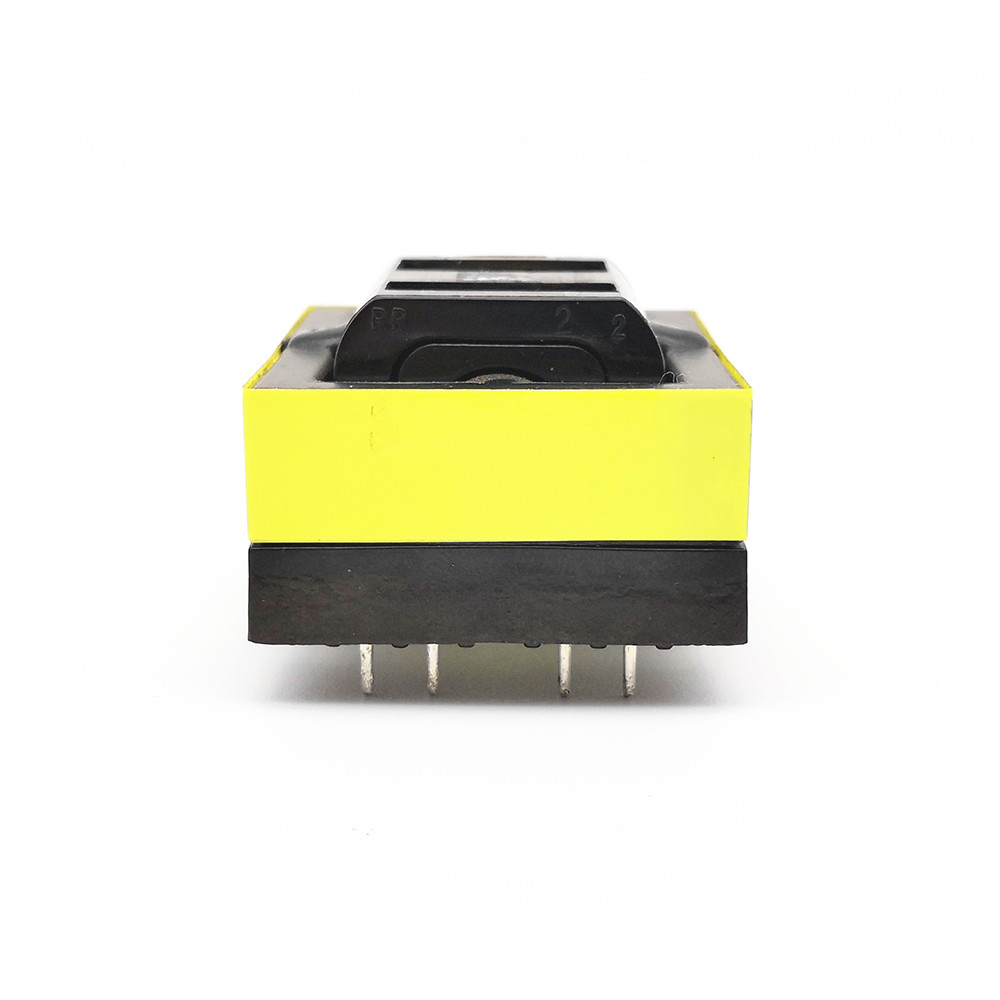

AC High Frequency High Voltage Transformer Environment Friendly ER35 700uH 100KHz

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Minimum Order Quantity: 1000pcs
Packaging Details: Carton
Delivery Time: 10-15 workding days
Payment Terms: L/C, T/T
Supply Ability: 2000000 Piece/Pieces per Month
Detail Information
Model Number: ER35 Size: 46*38*27mm
Inductance: 700uH±10% Recommened Power: 100-110W
Resistance: 175m Ohms MAX Working Frequency: 100KHz 1Vrms
High Light:

transformer ferrite core

,

electrical transformers


Product Description



ER35 700uH 100KHz HIGH FREQUENCY ENVIRONMENT FRIENDLY AC TRANSFORMER MANUFACTURERS



High-frequency transformers operate using the same basic principles as standard transformers. The primary difference is that, as their name implies, they operate at much higher frequencies — while most line voltage transformers operate at 50 or 60 Hz, high-frequency transformers use frequencies from 20 KHz to over 1MHz.Operating at a higher frequency has many benefits, the first of which is size.For any given power rating, the higher the frequency, the smaller the transformer can be.Second, because the transformer is smaller, less copper wire is needed, thus reducing the losses and helping to make the transformer more efficient. Also, since the core is typically ferrite, a wide variety of geometries are available so the transformer can be tailor-made for the application. Whether additional shielding or a specific form factor is required, the chances are good that a ferrite core exists to meet the requirement.

ER35
Dimension(mm)
Pin Quantity(pcs)
Pin Array(mm)
Power
46*38*27
7+7
w5
100-110W
Resistance(MAX)
Inductance
Leakage(MAX)
Working frequency
3-5=175mΩ
3-5=700uH±10%
3-5=127uH±10%
100KHz 1Vrms

AC High Frequency High Voltage Transformer Environment Friendly ER35 700uH 100KHz 0
