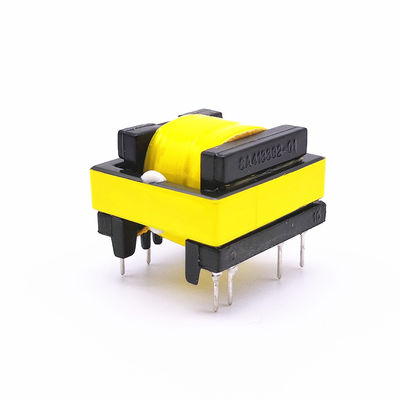

DC Flyback High Frequency High Voltage Transformer Small Size Stable Performance

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Model Number: EE22
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 10-15 workding days
Payment Terms: Negotiation
Supply Ability: 2000000 Piece/Pieces per Month
Detail Information
Model Number: EE22 Size: 24*22*18mm
Inductance: 1-6=920uH±15% Recommened Power: 10-15W
Resistance: 7.50hms Working Frequency: 100KHz 1Vrms
High Light:

transformer ferrite core

,

electrical transformers


Product Description

DC Flyback High Frequency High Voltage Transformer Small Size Stable Performance



We have ER series, EE series, EFD series, EQ series, PQ series, POT series transformers, they are used for switching power supply,main power transformer. We have qualitative products as well as professional sales and technical team, so we are able to provide customers with good products, excellent technical support and perfect after-sales service.





EE22
Dimension(mm)
Pin Quantity(pcs)
Pin Array(mm)
Power
24*22*18
8+8
2.5
10-15W
Resistance(MAX)
Inductance
Leakage(MAX)
Frequency
1-6=390mΩ±20%
1-6=920uH±15%
1-6=50uH
100KHz 1Vrm
