Small Power Line Filter Electrical Power Filter High Frequency Forward Type 86.5mH 10KHz

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/ROHS/ICE/ISO9001/ISO14001
Model Number: 86.5mH
Minimum Order Quantity: 1000pcs
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: L/C, T/T
Supply Ability: 2000000 Piece/Pieces per Month
Detail Information
High Light:

ac line filters

,

line filter transformer


Product Description

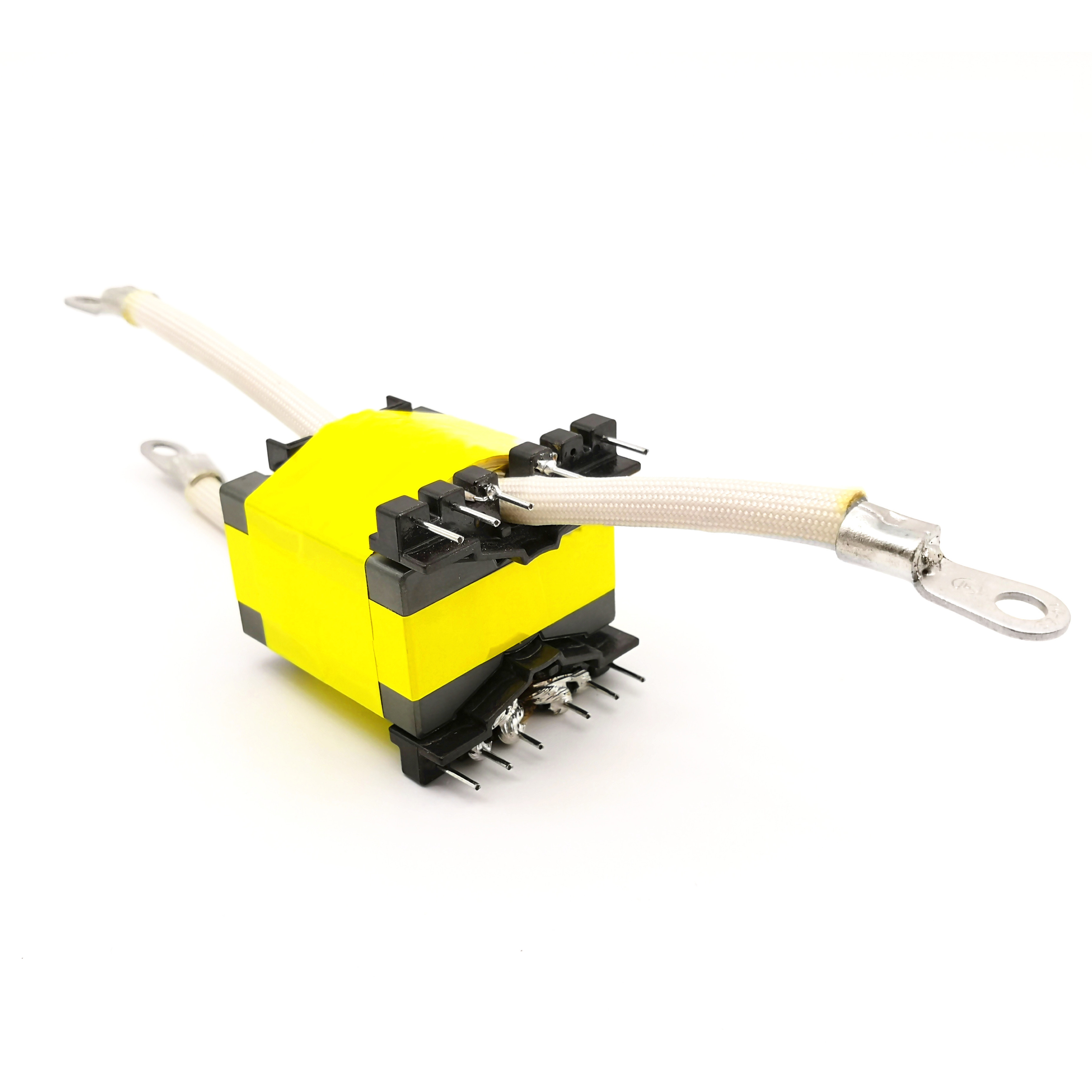

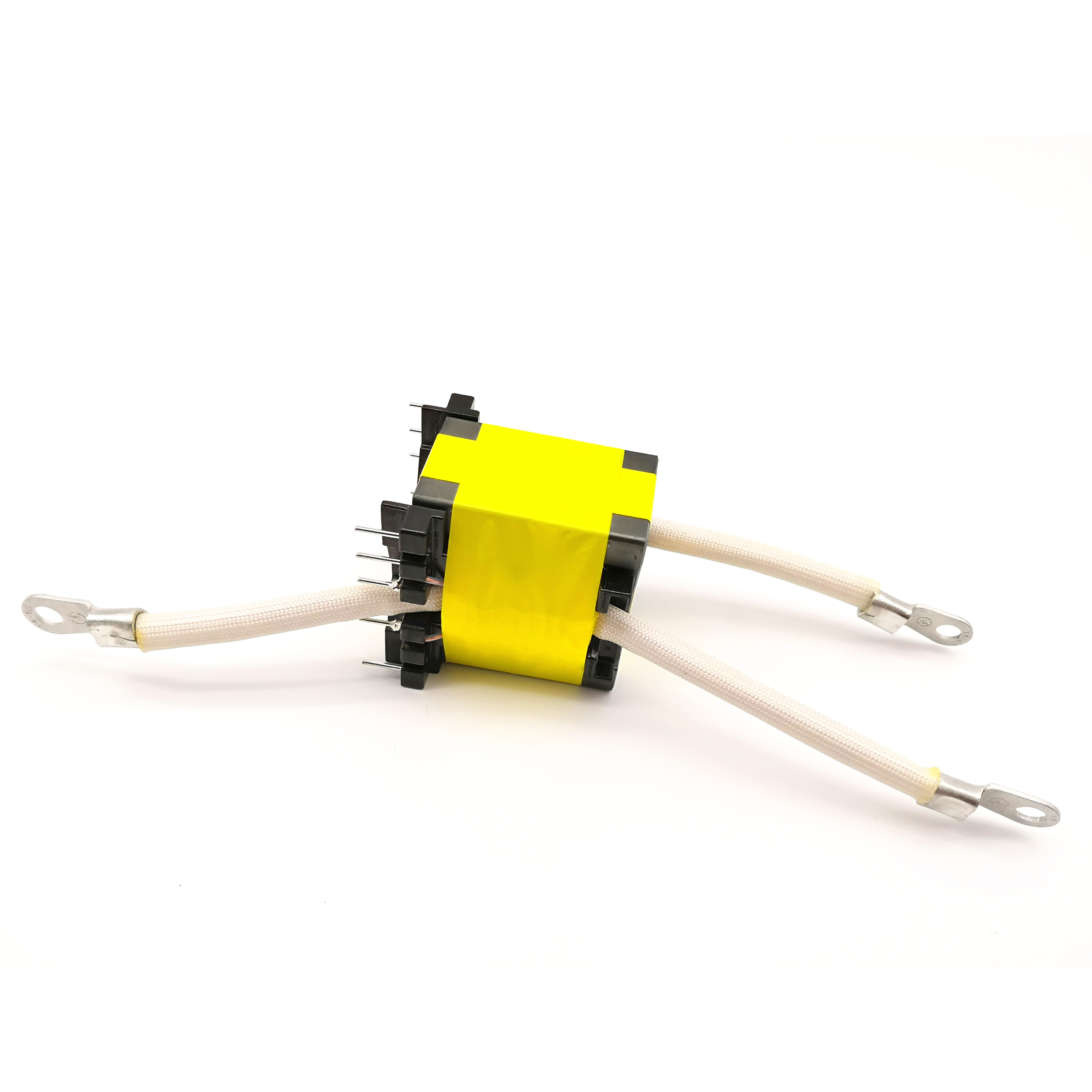

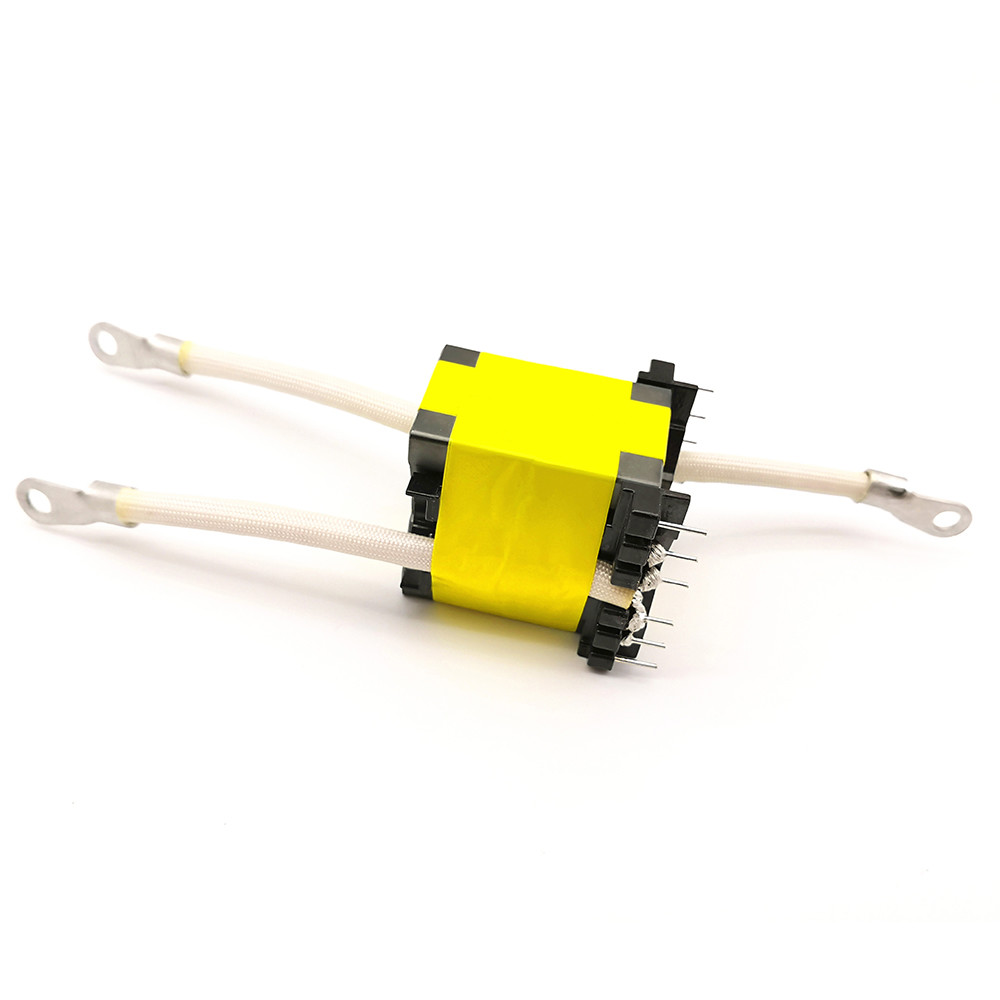

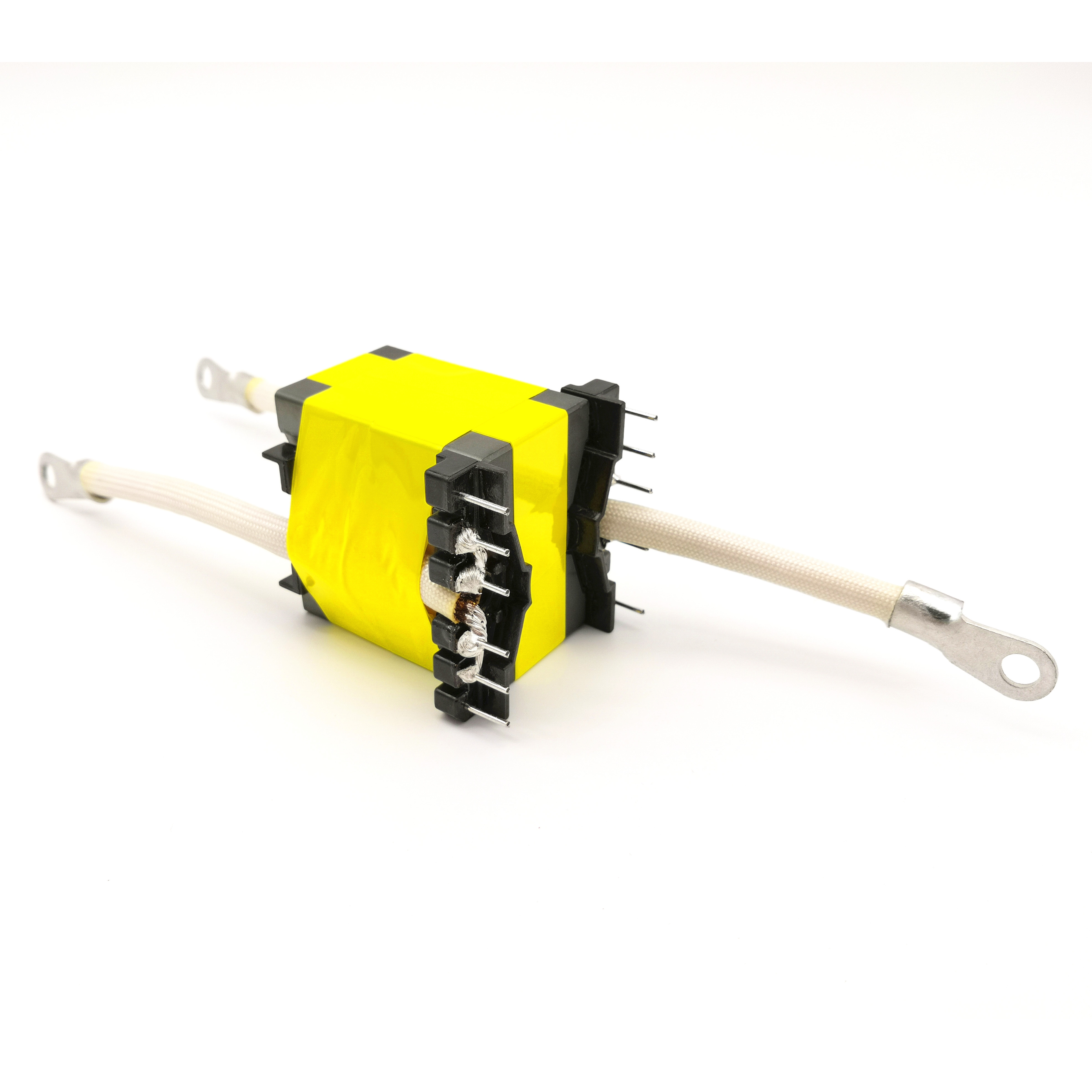

PQ50 HIGH FREQUENCY FORWARD TRANSFORMER POWER LINE FILTER



High-frequency transformers operate using the same basic principles as standard transformers. The primary difference is that, as their name implies, they operate at much higher frequencies — while most line voltage transformers operate at 50 or 60 Hz, high-frequency transformers use frequencies from 20 KHz to over 1MHz.Operating at a higher frequency has many benefits, the first of which is size.For any given power rating, the higher the frequency, the smaller the transformer can be.Second, because the transformer is smaller, less copper wire is needed, thus reducing the losses and helping to make the transformer more efficient. Also, since the core is typically ferrite, a wide variety of geometries are available so the transformer can be tailor-made for the application. Whether additional shielding or a specific form factor is required, the chances are good that a ferrite core exists to meet the requirement.

PQ50
Dimention(mm)
Pin Quantity(pcs)
Pin Array(mm)
Power
54*53*58
6+6
7.62/12.7
400W
Resistance(MAX)
Inductance
Leakage(MAX)
Test Condition
10-9=625mΩref
10-9=86.5mH±35%
15-14=150uH
10KHz,1Vrm
