| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 2 - 4000 |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | T/T, L/C, Negotiation |
| Supply Ability: | Satisfy your demand |
| Color: | Transparent | Material: | Copper |
|---|---|---|---|
| Thermal Class: | 130-180 | Certificates: | ROHS/UL/SGS/ISO9001:2008 |
| Breakdown Voltage: | 3KV | Strands: | 2-4000 |
| Breakdown Voltage: | 5500V | ||
| Highlight: | served litz wire,rectangular litz wire |
||

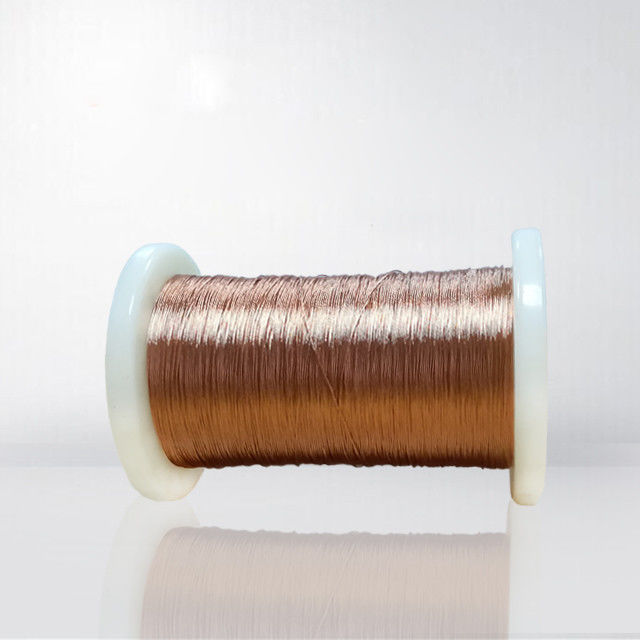

2 - 4000 STRANDS HIGH FREQUENCY COPPER LITZ WIRE WRAPPED INSULATION ENAMELED WIRE
Colorful wrapped litz copper wire is designed to meet the high temperature, high voltage design, the breakdong voltage can reach 10KV and has a set of flame retardant water blocking effect, meet the requirements of the harsh enviroment.
FEATURES
Anti high temperature
Breadown voltage:10KV
Water proof
Strands:2-4000
Coating Lyaer Material
SPECIFICATION
|
|
Characteristics |
Technical requests |
Test Results |
Conclusion |
||
|
1 |
Inner diameter |
0.05±0.003 mm |
0.05 |
OK |
||
|
2 |
Thickness of coating |
≥ 0.005mm |
0.009 |
OK |
||
|
3 |
Outer diameter |
≤ 0.06 mm ≤ 15 hole/5m |
0.059 |
OK |
||
|
4 |
Twist direction |
S/Z |
Z |
OK |
||
|
5 |
Strands |
32 |
32 |
OK |
||
|
6 |
Twist Pitch |
20.5±3 mm |
20.6 |
OK |
||
|
7 |
Breakdown Voltage |
1500V |
3000V |
OK |
||
|
8 |
Conductor Resistance |
≤ 305.43 Ω/km |
299.64 |
OK |
||
|
9 |
Solderability |
YES |
YES |
OK |
||
|
11 |
Overlapping Rate |
33%/55%/60% |
33% |
OK |
||
|
Remark:
The product meet the requirement of RoHS |
Conclusion: Approved |
|||||
|
|
|
|||||
|
|
||||||
