880uH 100KHz Power Supply High Frequency High Voltage Transformer POT JIS / NEMA / IEC Standard

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, L/C, T/T
Supply Ability: Satisfy your demand
Detail Information
Model Number: EFD30 Size: 38*34.5*20mm
Inductance: 4-6=880uH±10% Recommened Power: 50-60W
Resistance: 4-6=2.5 Ohms MAX Frequency: 1000KHz
High Light:

transformer ferrite core

,

electrical transformers


Product Description

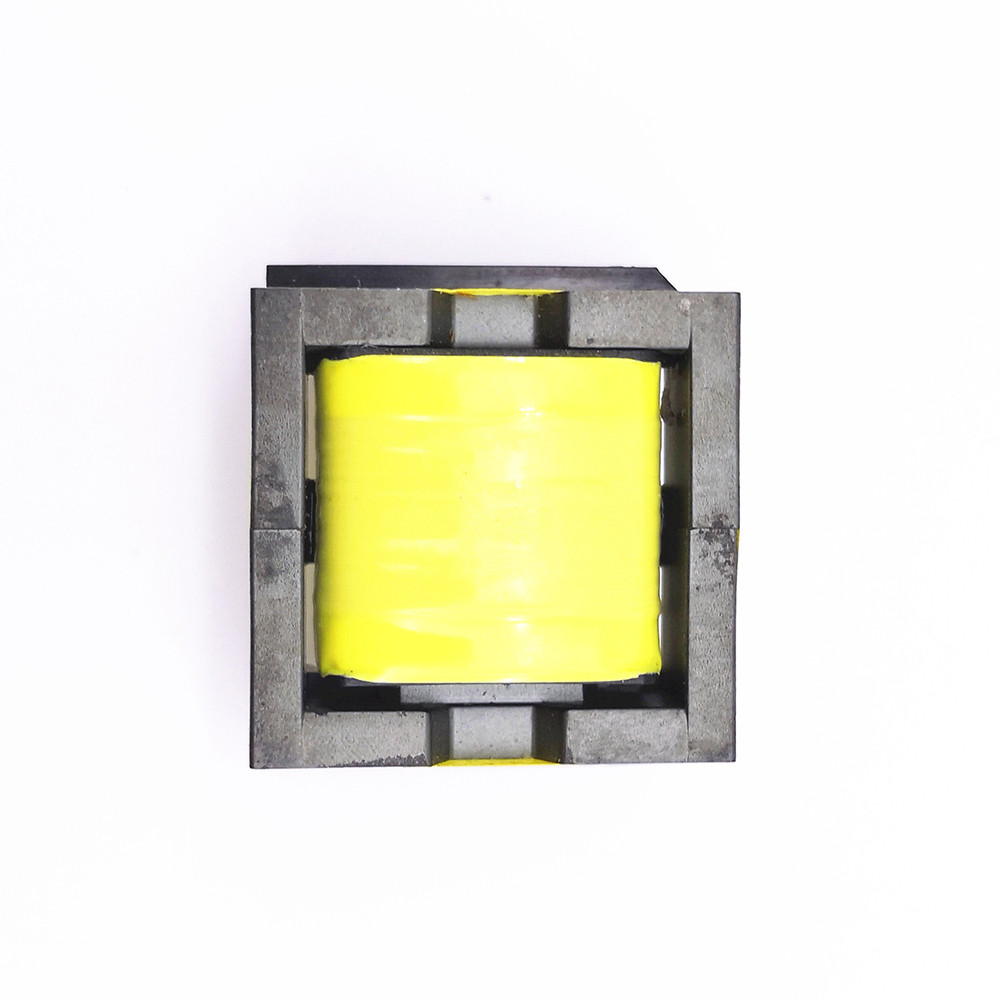

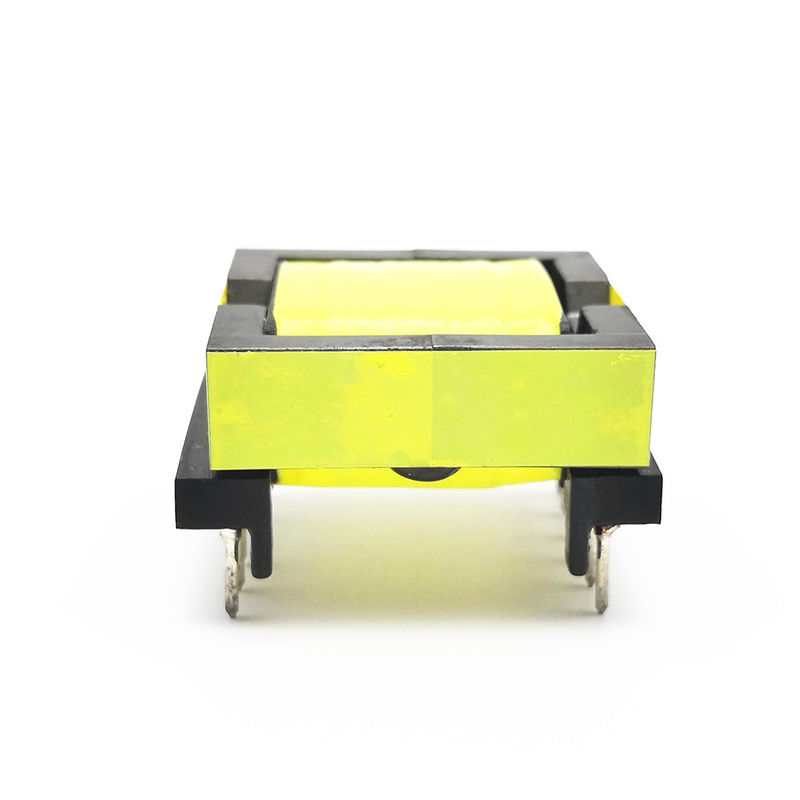

880uH 100KHz POWER SUPPLY HIGH FREQUENCY HIGH VOLTAGE TRANSFORMER POT JIS NEMA IEC STANDARD

High-frequency transformers operate using the same basic principles as standard transformers. The primary difference is that, as their name implies, they operate at much higher frequencies — while most line voltage transformers operate at 50 or 60 Hz, high-frequency transformers use frequencies from 20 KHz to over 1MHz.Operating at a higher frequency has many benefits, the first of which is size.For any given power rating, the higher the frequency, the smaller the transformer can be.Second, because the transformer is smaller, less copper wire is needed, thus reducing the losses and helping to make the transformer more efficient. Also, since the core is typically ferrite, a wide variety of geometries are available so the transformer can be tailor-made for the application. Whether additional shielding or a specific form factor is required, the chances are good that a ferrite core exists to meet the requirement.

EFD30
Dimension(mm)
Pin Quantity(pcs)
Pin Array(mm)
Power
39*34.5*20
6+6
5
50-60W
Resistance(MAX)
Inductance
Leakage(MAX)
Test Condition
4-6=2.5Ω
4-6=880uH±10%
4-6=16uH MAX
100KHz,1Vrms
880uH 100KHz Power Supply High Frequency High Voltage Transformer POT JIS / NEMA / IEC Standard 0
