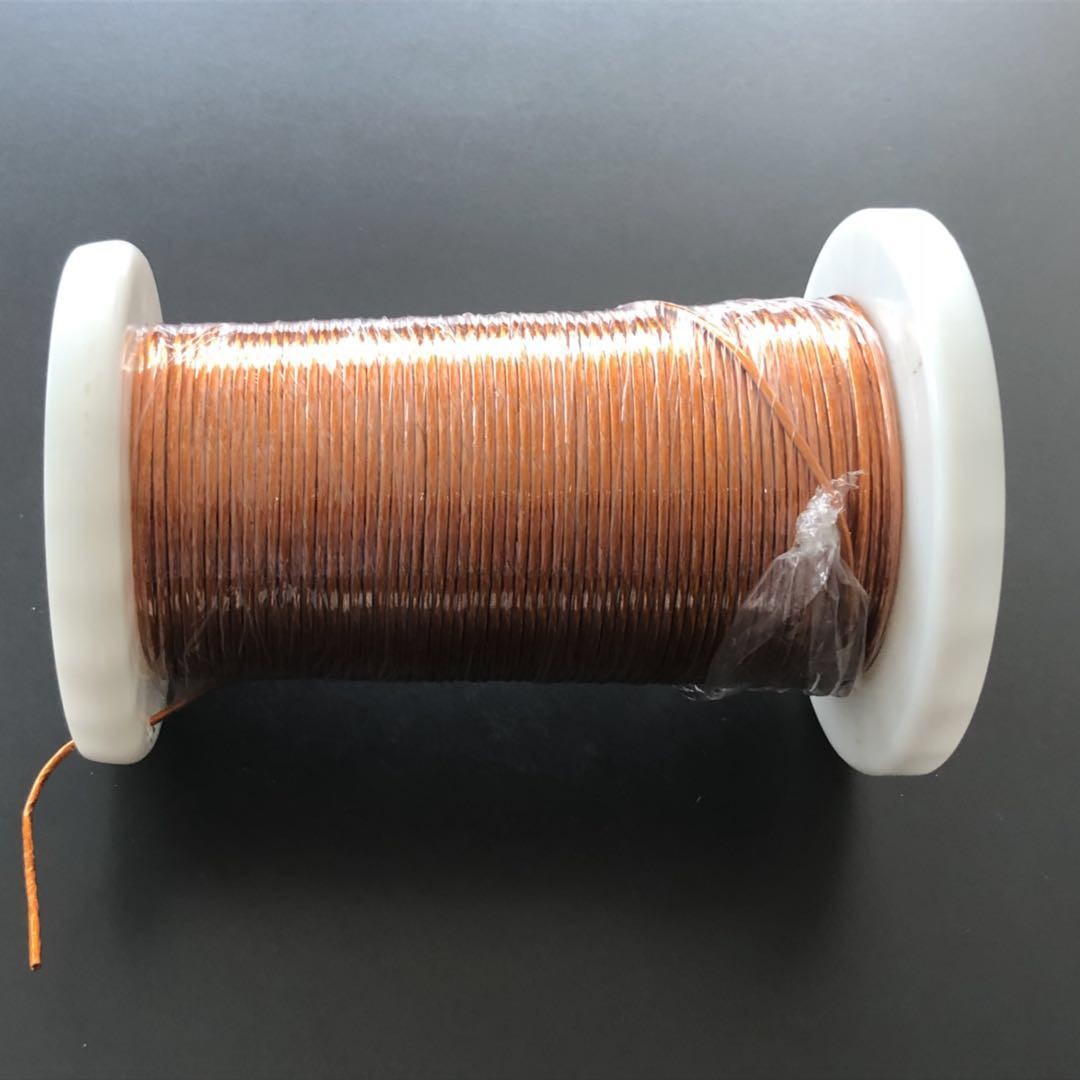

0.1 X 200 8000v Mylar Copper Litz Wire High Voltage Taped 200 Strands Insulated Litz Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: UL/SGS
Model Number: 0.1x200
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Breakdown Voltage: 6000V Thermal Class: 180
Insulation: Kapten Outer Diameter: 0.114mm
Color: Transparent Strands: 200
Overlap Rate: 50%
High Light:

0.1 mylar wire


8000v mylar wire


SGS mylar wire

Product Description


Taped litz wire is a wire or Litz wire wrapped with a Mylar or tapes made from different material and a certain overlap rate, it can sustain very high voltage that is over 8000V.Litz wire is a type of specialized multistrand wire or cable used in electronics to carry alternating current (AC) at radio frequencies. The wire is designed to reduce the skin effect and proximity effect losses in conductors used at frequencies up to about 1 MHz.[1] It consists of many thin wire strands, individually insulated and twisted or woven together, following one of several carefully prescribed patterns[2] often involving several levels (groups of twisted wires are twisted together, etc.). The result of these winding patterns is to equalize the proportion of the overall length over which each strand is at the outside of the conductor. This has the effect of distributing the current equally among the wire strands, reducing the resistance. Litz wire is used in high Q inductors for radio transmitters and receivers operating at low frequencies, induction heating equipment and switching power supplies.

Characteristics Technical requests Test Results
Inner diameter 0.100±0.003 mm 0.100
Thickness of coating 0.008mm 0.014
Outer diameter 0.117mm 0.114
Twist direction S/Z Z
Strands 200 200
Twist Pitch 34±3 mm 33.3
Breakdown Voltage 6000V 8000V
Conductor Resistance 12.01Ω/km 11.052
Solderability YES YES
Overlapping Rate 33%/50%/60% 50%



































0.1x200 180C-2.jpg
