EQ2614 100KHz Step Up High Frequency Transformer Switch Mode Transformer

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: EE/EC/EP/ETD
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: L/C, T/T
Supply Ability: Satisfy your demand
Detail Information
Type: Dry-type Size: 28*36*15.5mm
Rated Voltage: 10KV Inductance: 3-1=120uH±10%
Recommened Power: 45W Resistance: 3-1=210m Ohms MAX
Input Voltage: 200v/220/240/380v/400v/415v/440v
High Light:

high frequency transformer

,

electrical transformers


Product Description

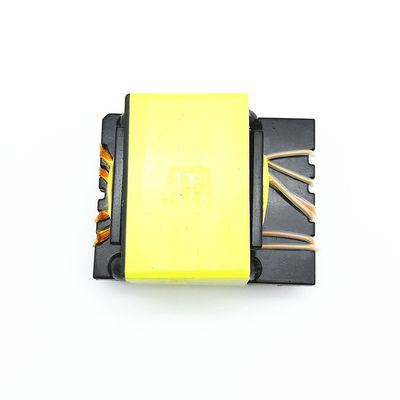

EQ2614 100KHz STEP UP HIGH FREQUENCY TRANSFORMER SWITCH MODE TRANSFORMER

A transformer is an electrical apparatus designed to convert alternating current from one voltage to another. It can be designed to "step up" or "step down" voltages and works on the magnetic induction principle. A transformer has no moving parts and is a completely static solid state device, which insures, under normal operating conditions, a long and trouble-free life. It consists, in its simplest form, of two or more coils of insulated wire wound on a laminated steel core. When voltage is introduced to one coil, called the primary, it magnetizes the iron core. A voltage is then induced in the other coil, called the secondary or output coil. The change of voltage (or voltage ratio) between the primary and secondary depends on the turns ratio of the two coils.

EQ2614
Dimension(mm)
Pin Quantity(pcs)
Pin Array(mm)
Power
28*36*15.5
6+5
3.5/4.5
45W
Resistance(MAX)
Inductance
Leakage(MAX)
Frequency
3-1=210mΩ
3-1=120uH±10%
4-6=16uH
100KHz,1Vrms
