100KHz Single Phase High Frequency High Voltage Transformer Flyback Transformer

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: EE/EP/EC
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: L/C, T/T
Supply Ability: Satisfy your demand
Detail Information
Size: 24*22*18mm Standard: IEC/JIS/NEMA
Rated Voltage: 10kV-35kV Inductance: 1-6=920uH±15%
Recommened Power: 10-15W Working Frequency: 100KHz 1Vrms
High Light:

high frequency transformer

,

electrical transformers


Product Description

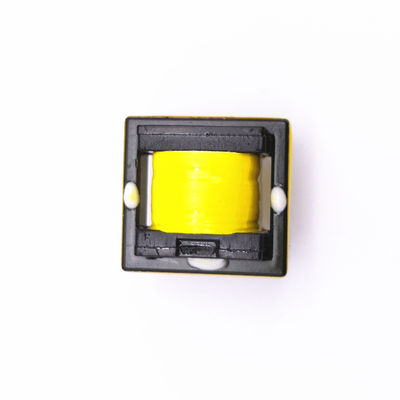

EE22HIGH FREQUENCY HIGH VOLTAGE INVERTER DC TRANSFORMER FLYBACK TRANSFORMER

Switch mode flyback transformers are used extensively in electronic applications, usually within a switch mode power supply. A switch mode power supply is usually powered from a D.C. source, such as a battery. The switching mode power supply converts the input D.C. source to one or more output D.C. sources.

EE22

Dimension(mm)
Pin Quantity(pcs)
Pin Array(mm)
Power
24*22*18
8+8
2.5
10-15W
Resistance(MAX)
Inductance
Leakage(MAX)
Frequency
1-6=390mΩ±20%
1-6=920uH±15%
1-6=50uH
100KHz 1Vrm
