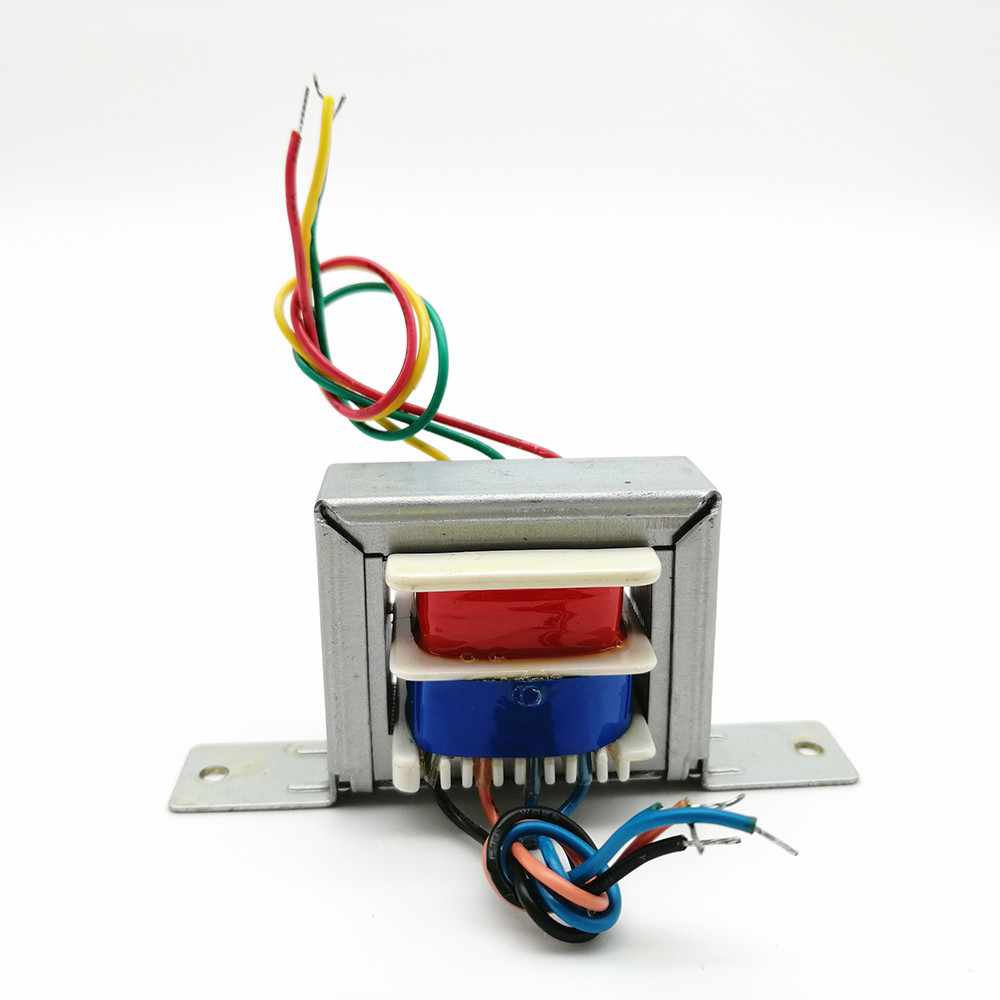

Factory Price Low Frequency Silicon StEEl EI48 Power Transformer

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: ee/ec/ep/etd/ei
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation
Supply Ability: Satisfy your demand
Detail Information
Product Name: Ei 16 Best Quality High Frequency Transformer For Welding Machines Type: Dry-type
Size: 81*40*43.5 Frequency: 1KHz -200KHz
Rated Capacity: 30-3000kva Rated Voltage: 10KV
Power: 12W Input Voltage: 200v/220/240v/360v/480v
Output Voltage: S1:AC19.8V S2:AC19.9V S3:AC19.9V
High Light:

transformer ferrite core

,

electrical transformers


Product Description

FACTORY PIRICE LOW FREQUENCY SILICON STEEI EI 48 POWER TRANSFORMER

A transformer is an electrical apparatus designed to convert alternating current from one voltage to another. It can be designed to "step up" or "step down" voltages and works on the magnetic induction principle. A transformer has no moving parts and is a completely static solid state device, which insures, under normal operating conditions, a long and trouble-free life. It consists, in its simplest form, of two or more coils of insulated wire wound on a laminated steel core. When voltage is introduced to one coil, called the primary, it magnetizes the iron core. A voltage is then induced in the other coil, called the secondary or output coil. The change of voltage (or voltage ratio) between the primary and secondary depends on the turns ratio of the two coils.



EI48
Dimention(mm)
Pin Quantity(pcs)
Pin Array(mm)
81*40*43.5
/
/
Power
Input Voltage
Output voltage
12W
AC100/200V 50/60Hz
S1:AC19.8V
S2:AC19.9V
S3:AC19.9V

Factory Price Low Frequency Silicon StEEl EI48 Power Transformer 0
