Name: Taped Polyimide Film Covered Copper Litz Wire 0.1*60 Class 180 Polyester Insulation
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: 0.1*60 Class 180
Price: 24.06 USD
Availability: InStock

Taped Polyimide Film Covered Copper Litz Wire 0.1*60 Class 180 Polyester Insulation

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	0.1*60 Class 180

Minimum Order Quantity:	Different types with differet MOQ
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation, T/T, L/C
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Insulation:	Polyester	Size:	0.1*60
Strands:	10-3000	Certificate:	ROHS/UL/SGS/ISO9001:2008
Standard:	GB IEC JIS NEMA	Conductor:	Copper
Highlight:	served litz wire , soldering litz wire

Product Description

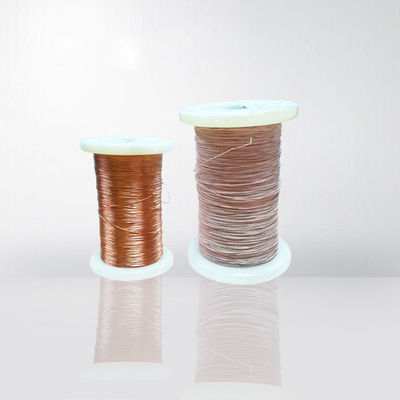

TAPED POLYIMIDE FILM COVERED COPPER LITZ WIRE 0.1*60 CLASS 180 POLYESTER INSULATION

Taped high frequency litz wire constructions are mainly suitable for applications requiring a high break down voltage. Taping gives litz wire improved capability to withstand flexing and mechanical stress. Self-adhesive tape material increases protection against re-opening during and after manufacturing processes and thus secures the compliance with defined creepage distance.

APPLICATION

transformer/ Inverters/RF transducers/RF chokes/Inductive charging

Taped Polyimide Film Covered Copper Litz Wire 0.1*60 Class 180 Polyester Insulation 0

SPECIFICATION

	Characteristics	Technical requests		Test Results			Conclusion
				Sample 1	Sample 2	Sample 3
1	Surface	Good		OK	OK	OK	OK
2	Breakdown Voltage	≥ 3.0 KV		5.0	5.3	6.2	OK
3	Pinhole Test	≤ 20 hole/6m		3	2	2	OK
4	Outer diameter	≤ 0.116 mm		0.111	0.112	0.113	OK
5	Inner diameter	0.10±0.003 mm		0.097	0.098	0.098	OK
6	Thickness of film(+0.002mm)	0.025 mm		0.025	0.025	0.025	OK
7	Width of film(,,)	8-15 mm		10	10	10	OK
8	Direction	Bunch	Left	OK	OK	OK	OK
		Film cover	Left	OK	OK	OK	OK
9	Conductor Resistance	≤ 40.87 Ω/km		31.69	32.01	32.08	OK
10	Overall Diameter	≤ 1.25 mm		0.874	0.896	0.902	OK
Remark:					Conclusion: Approved
