0.1*40 Class 130 Polyester Transparent Taped Twisted Enameled Wire High Frequency Mylar Litz Copper Wire

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.1*40
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: Negotiation, T/T, L/C
Supply Ability: Satisfy your demand
Detail Information
Insulation: UEW With Silk Size: 0.04-0.5mm
Color: Transparent Material: Copper
Thermal Class: 130/180 Certificates: ROHS/UL/SGS/ISO9001:2008
Breakdown Voltage: 5KV Strands: 10-3000
High Light:

high frequency mylar wire

,

mylar wire high frequency

,

enameled mylar wire


Product Description

0.1*40 CLASS 130 POLYESTER TRANSPARENT TAPED TWISTED ENAMELED WIRE HIGH FREQUENCY LYLAR LITZ COPPER WIRE

Taped high frequency litz wire constructions are mainly suitable for applications requiring a high break down voltage. Taping gives litz wire improved capability to withstand flexing and mechanical stress. Self-adhesive tape material increases protection against re-opening during and after manufacturing processes and thus secures the compliance with defined creepage distance.

FEATURES

  • Excellent bond strengths achieved by hot air bondind

  • High winding speed

  • Solderable without pre-stripping insulation

  • Environment-friendly process automation due to elimination of solvents

  • Thin-walled overcoat possible for small coils

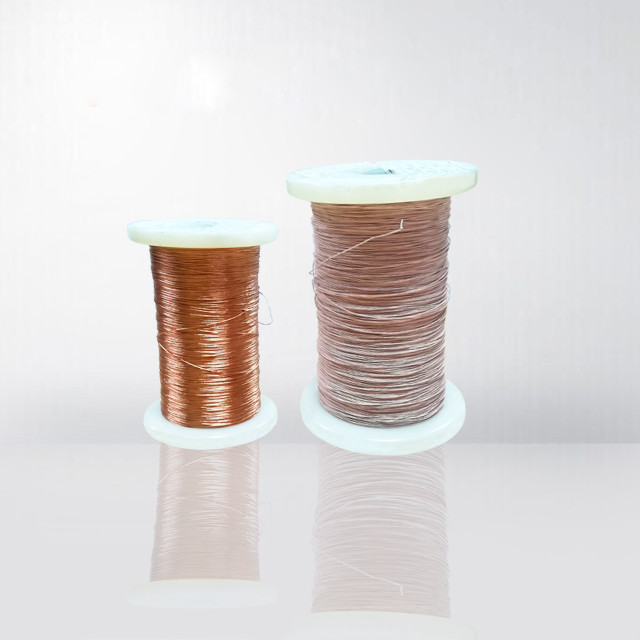

0.1*40 Class 130 Polyester Transparent Taped Twisted Enameled Wire High Frequency Mylar Litz Copper Wire 0

SPECIFICATION



Characteristics

Technical requests

Test Results

Conclusion

Sample 1

Sample 2

Sample 3

1

Surface

Good

OK

OK

OK

OK

2

Breakdown Voltage

≥ 3.0 KV

5.7

5.8

6.2

OK

3

Pinhole Test

≤ 15 hole/5m

2

2

1

OK

4

Outer diameter

≤ 0.116 mm

0.111

0.112

0.114

OK

5

Inner diameter

0.10±0.003 mm

0.097

0.097

0.098

OK

6

Thickness of Mylar film(+0.002mm)

0.025 mm

0.025

0.025

0.025

OK

7

Width of film(,,)

8-15 mm

8

8

8

OK

8

Direction

Bunch

Left

OK

OK

OK

OK

Film cover

Left

OK

OK

OK

OK

9

Conductor Resistance

≤ 61.31 Ω/km

55.03

55.42

55.92

OK

10

Overall Diameter

≤ 0.997 mm

0.718

0.758

0.774

OK

Remark:

Conclusion:

Approved
