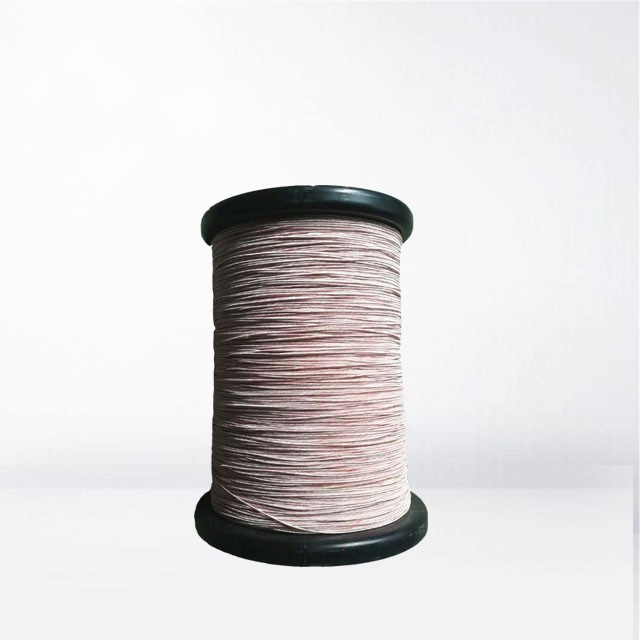

Customized 0.68/7*19 Paper Insulation Covered Litz Copper Wire For Transformer

Basic Information
Place of Origin: China
Brand Name: Rvyuan
Certification: IEC/NEMA/JIS/RoHS/ISO
Model Number: 0.68/7*19
Minimum Order Quantity: Different types with differet MOQ
Price: Negotiation
Packaging Details: Spool with carton
Delivery Time: 2-15 workding days
Payment Terms: T/T, L/C,Negotiation,
Supply Ability: Satisfy your demand
Detail Information
Insulation: Paper Size: SWG 20- 30
Metric Size: 0.04-0.5mm Certificate: ROHS/UL/SGS/ISO9001:2008
Color: Red/Blue/Black Material: Copper
Thermal Class: 155
High Light:

served litz wire

,

rectangular litz wire


Product Description

CUSTOMERIZED 0.68/7*19 PAPER INSULATION COVERED LITZ COPPER WIRE FOR TRANSFORMER

Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). Each thin conductor is less than a skin-depth, so an individual strand does not suffer an appreciable skin effect loss. The strands must be insulated from each other—otherwise all the wires in the bundle would short together, behave like a single large wire, and still have skin effect problems. Furthermore, the strands cannot occupy the same radial position in the bundle over long distances: the electromagnetic effects that cause the skin effect would still disrupt conduction. The weaving or twisting pattern of the wires in the bundle is designed so that the individual strands are on the outside of the bundle for a distance (where the EM field changes are smaller and the strand sees low resistance), and are inside for a distance (where the EM field changes are the strongest and the resistance is higher). If each strand has a comparable impedance, current is distributed equally among every strand within the cable. This allows the interior of the litz wire to contribute to the overall conductivity of the bundle.This product is processed using the insulation materials such as kraft paper, NOMEX paper, miki paper to wrap spirally around the conductor. Paper covered wire can be applied to the coil winding of various oil-immersed transformers, lifting electromagnet, electric weldong machine.

FEATURES

  • High voltage resistance. Kraft paper wrapped wire is special materials for the coil winding of oil-immersed transformers and similar electric appliance

  • High elasticty

  • Good flexibility

  • Good wear resistance

  • Excellent corrosion acid and basic resistance.

  • High voltage resistance



APPLICATION

Coil winding of large oil-immersed power transformer and reactor, large capacity dry type transformers.

CERTIFICATES

ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met

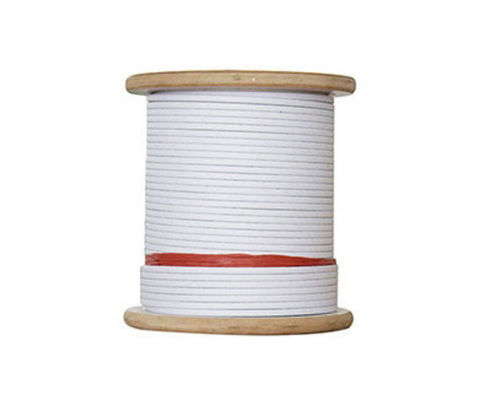

Customized 0.68/7*19 Paper Insulation Covered Litz Copper Wire For Transformer 0
