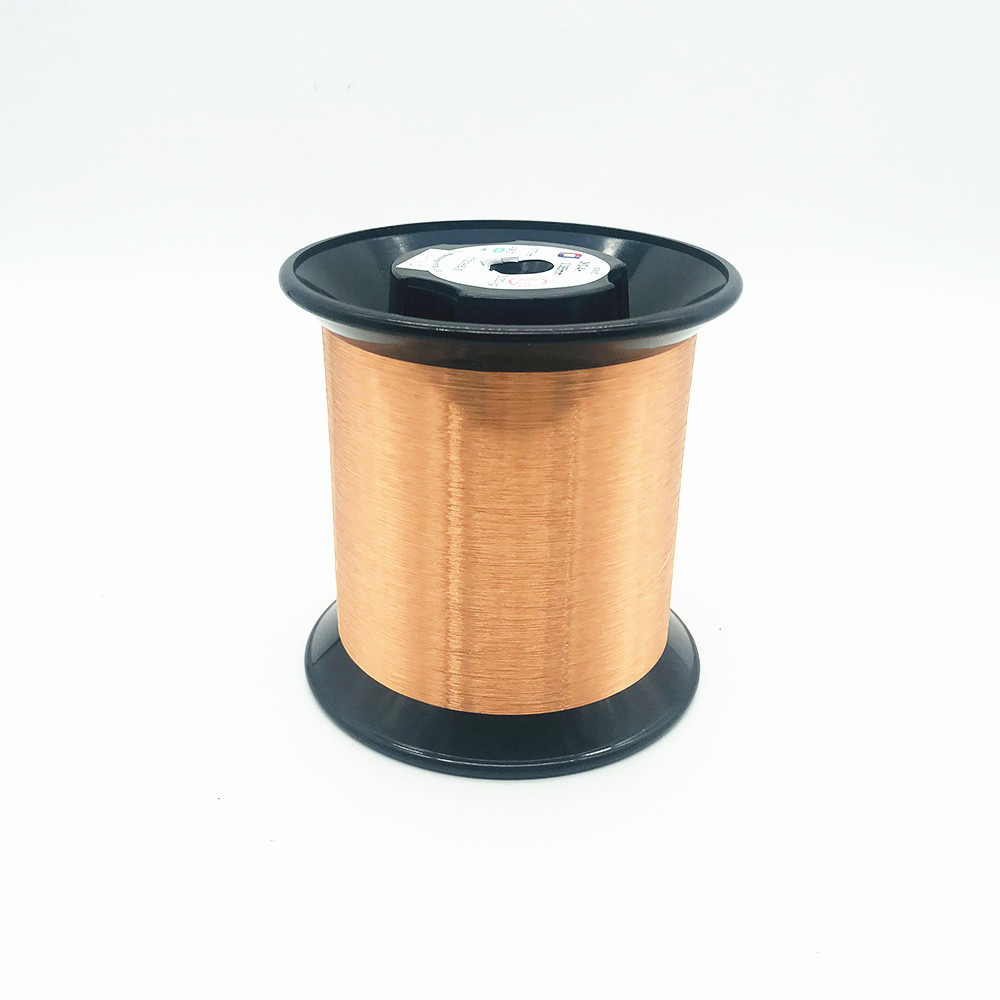

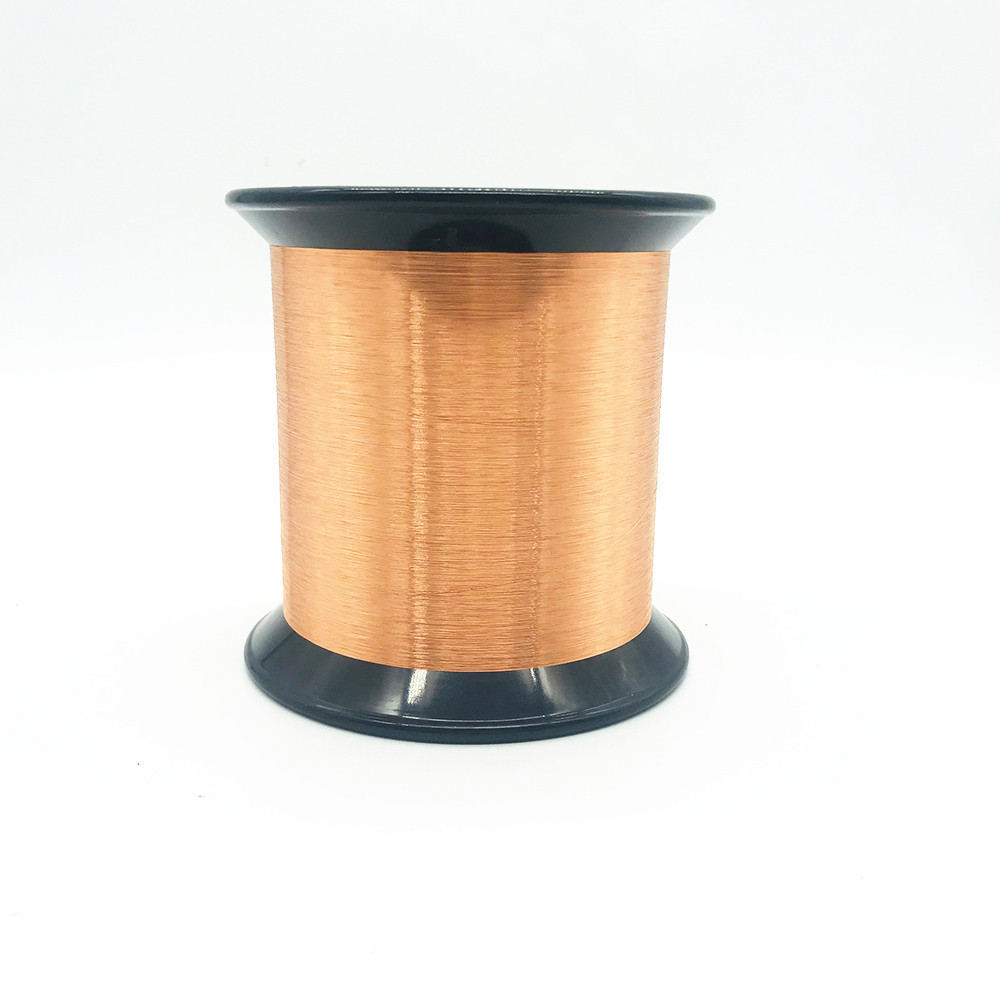

Copper UEW 155 0.063mm Insulated Magnet Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 0.063mm
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 200 Ton/Tons per Month
Detail Information
Product Name: Enameled Copper Wire Insulation: Polyurethane
Size: 0.063mm Thermal Grade: 155
Conductor Material: Copper Conductor Type: Solid
High Light:

UEW insulated magnet wire


155 insulated magnet wire


0.063mm insulated magnet wire

Product Description

UEW 155 0.065mm Copper Magnet Wire 0.012-0.08 mm Ultra Thin Enameled Copper Wire


We are one of the pioneers in producing ultra-fine enameled wires below 0.03mm in China. Our R & D team has 20 years of marketexperience.We have achieved the goal of "zero pinholes after stretching" for ten years. In 2019, our finest diameter is 0.011mm,and mass production has been achieved.When the displays return the transformer industry, we are the No.1 Chinese brand with ashare of cake.We rival the internationally renowned enameled wire brands for production, technology, raw materialsWe surpass them in terms of "service, quick response"; 30% lower "price" is our advantage. More and more well-known customers choose us as suppliers-Philips, Bosch, Panasonic, Samsung ...


Copper UEW 155 0.063mm Insulated Magnet Wire 0


Technical requests
Test Results Conclusion
Sample 1 Sample 2 Sample 3
Surface Good OK OK OK OK
Bare Wire Diameter
0.002 0.063
Coating Thickness ≥ 0.007 mm 0.011 0.01 0.011 OK
Overall Diameter ≤ 0.077 mm 0.074 0.073 0.074 OK
Conductor Resistance ≤ 5.900 Ω/m 5.478 5.512 5.482 OK
Elongation ≥ 14 % 21 22 20 OK
Breakdown Voltage ≥ 400 V 1768 1672 1723 OK
Pinhole Test ≤ 5 holes /5m 0 0 0 OK
Test Items Technical Requests Results
Adhesive Coating layer is good OK
Cut-through 230℃ 2mins no breakdown OK
Heat Shock 200℃±5℃/30min no crack OK
Solder Ability 390± 5℃ 2 Sec Smooth OK
Solvent Resistance No blister, no expansion, no shedOK
