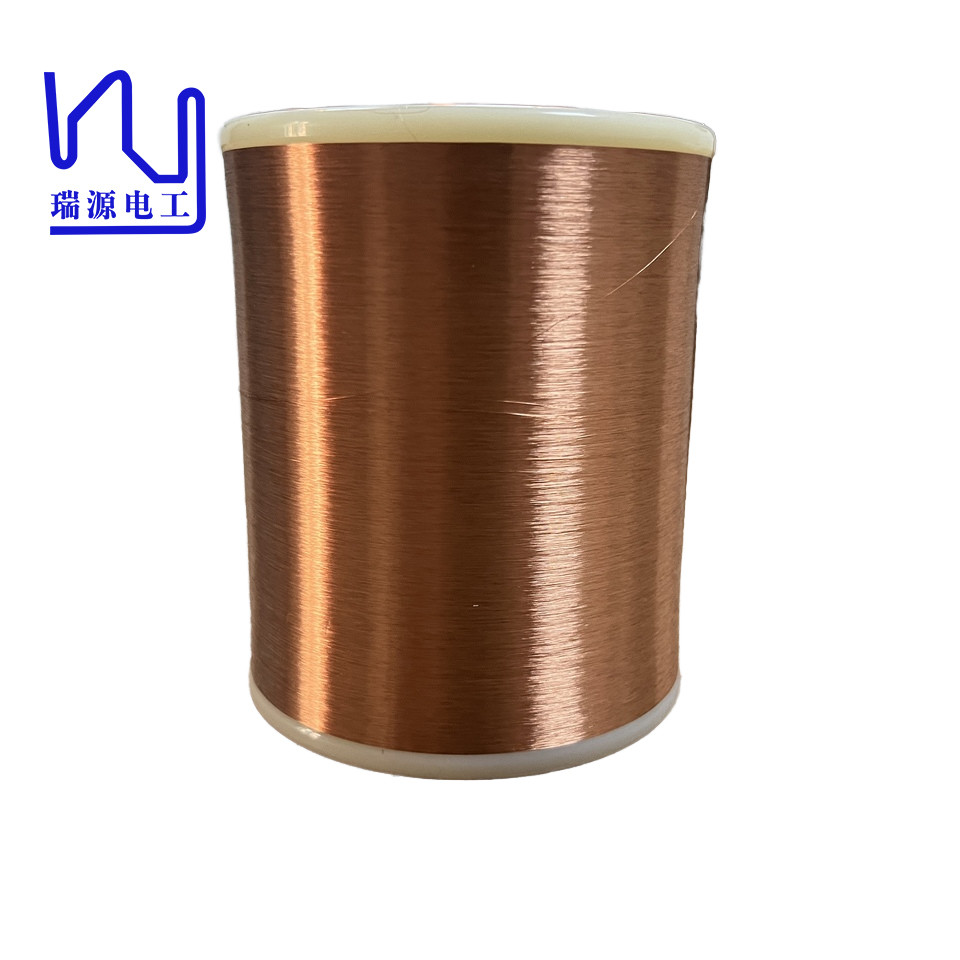

Class 155 6N 99.9999% OCC High purity enameled copper wire hot wind self-adhesive

Detail Information
Product Name: Class 155 6N 99.9999% OCC High Purity Enameled Copper Wire Hot Wind Self-adhesive Thermal Rating: 155
Insulation Material: Enamel Diameter: 0.025mm
Conductor Material: Copper Key Word: Class 155 6N 99.9999% OCC High Purity Enameled Copper Wire Hot Wind Self-adhesive
Highlight:

Self-adhesive enameled copper wire

,

High purity enameled copper wire

,

99.9999% OCC enameled copper wire


Product Description

Class 155 6N 99.9999% OCC High purity enameled copper wire hot wind self-adhesive



In the world of high-end audio, the quality of the components used is crucial to achieving the ultimate sound experience. At the forefront of this pursuit is our custom-made 6N high-purity enameled copper wire, designed for audiophiles and professionals seeking the best.

With a wire diameter of just 0.025mm, this ultra-fine enameled copper wire is designed to deliver unparalleled performance, ensuring every note and nuance of your favorite music is transmitted with pristine clarity.



 Name

Class 155 6N 99.9999% OCC High purity enameled copper wire hot wind self-adhesive

Key word

Class 155 6N 99.9999% OCC High purity enameled copper wire hot wind self-adhesive

Thermal rating

155

Item Tech requirement Test value
Overall dimention mm Max.0.035 0.035 0.034 0.0345
Conductor Diameter mm



0.025±0.002



0.025



0.025



0.025

Conductor resistance Ω/m





Tested value



35.1



35.1



35.1

Pinhole (5m) pcs



Max 5



0



0



0

Elongation %



Min 10



16.8



15.2



16

Solderability



Max 2



OK
