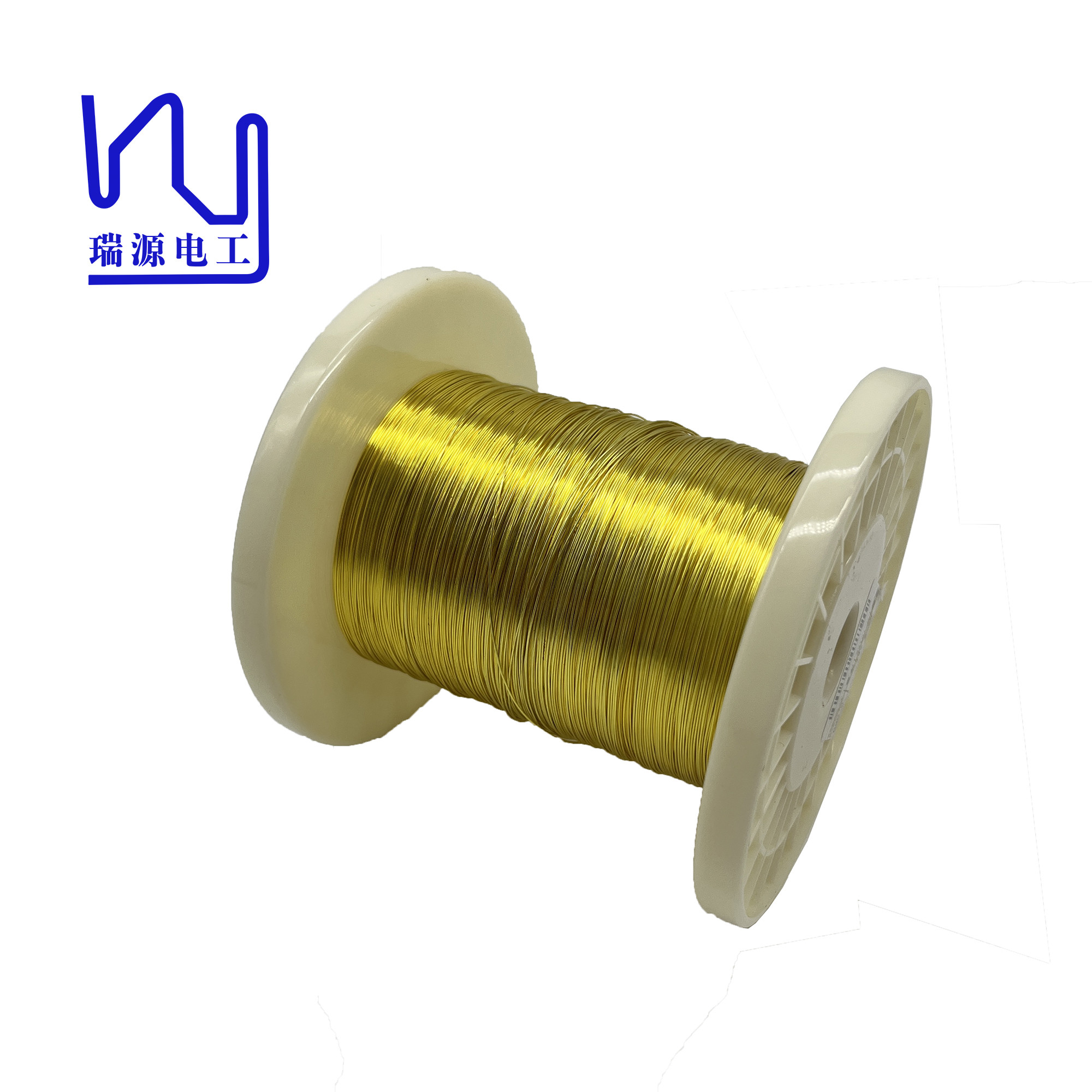

99.998% 0.5mm 4N Ohno Continuous Cast Bare Copper Wire For Chromecast Audio

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: OCC
Minimum Order Quantity: 1 kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 10Ton/week
Detail Information
Product Name: 99.998% 0.5mm 4N Ohno Continuous Cast Bare Copper Wire For Chromecast Audio Thermal Rating: 155
Insulation Material: Bare Copper Wire Diameter: 0.08mm
Conductor Material: Copper Key Word: 99.998% 0.5mm 4N Ohno Continuous Cast Bare Copper Wire For Chromecast Audio
High Light:

0.5mm bare copper wire

,

chromecast audio bare copper wire

,

chromecast audio 6 bare copper wire


Product Description

99.998% 0.5mm 4N Ohno Continuous Cast Bare Copper Wire For Chromecast Audio



OCC (Ohno Continuous Cast) is the name given to the casting process developed to help defeat annealing issues and virtually eliminate all grain boundaries in copper or silver with a unique patented process. The OCC casting method uses specialized heated moulds in order to draw a single crystal up to 125 meters in length. With only a single crystal in very long lengths, there is an unimpeded free path for the best possible signal transfer. Along with this superior single long crystal structure, OCC provides copper and silver with the least possible oxides and other impurities.



 Name

99.998% 0.5mm 4N Ohno Continuous Cast Bare Copper Wire For Chromecast Audio

Key word

99.998% 0.5mm 4N Ohno Continuous Cast Bare Copper Wire For Chromecast Audio

Thermal rating

155

Diameter

0.5mm



Item Unit Requirement Test result
      Max.

Min.



Mean.





Single Over-all Diamerter

[mm] Max 0.56



0.52



0.52



0.52



Twisting ditection

[mm] Min 0.008



0.01



0.015



0.0125



Twisting distance

[mm] 0.500±1



0.500



0.490



0.495



Conductor resistance

[Ω/m]



——



0.107



0.107



0.107



Pinhole (6m)

[个] Max. 5



0



0



0



Single wire Elongation

[%] Min. 20



32.94



32.94



32.94



Conductor resistance

[gf] Min. 3688



3716



3716



3716



Solderability

[s] Max. 2



OK



99.998% 0.5mm 4N Ohno Continuous Cast Bare Copper Wire For Chromecast Audio 0
