| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | FIW |
| Minimum Order Quantity: | 20 kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | FIW4 FI5 FIW5 Class 180 High Voltage FIW Wire Solderable Enameled Copper Wire For High Voltage Transformer | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | Enamel | Diameter: | 0.1mm-0.4mm |
| Conductor Material: | Copper | Key Word: | FIW4 FI5 FIW5 Class 180 High Voltage FIW Wire Solderable Enameled Copper Wire For High Voltage Transformer |
| High Light: | High Voltage fiw wire,0.1 mm fiw wire,Solderable enamel insulated copper wire |
||

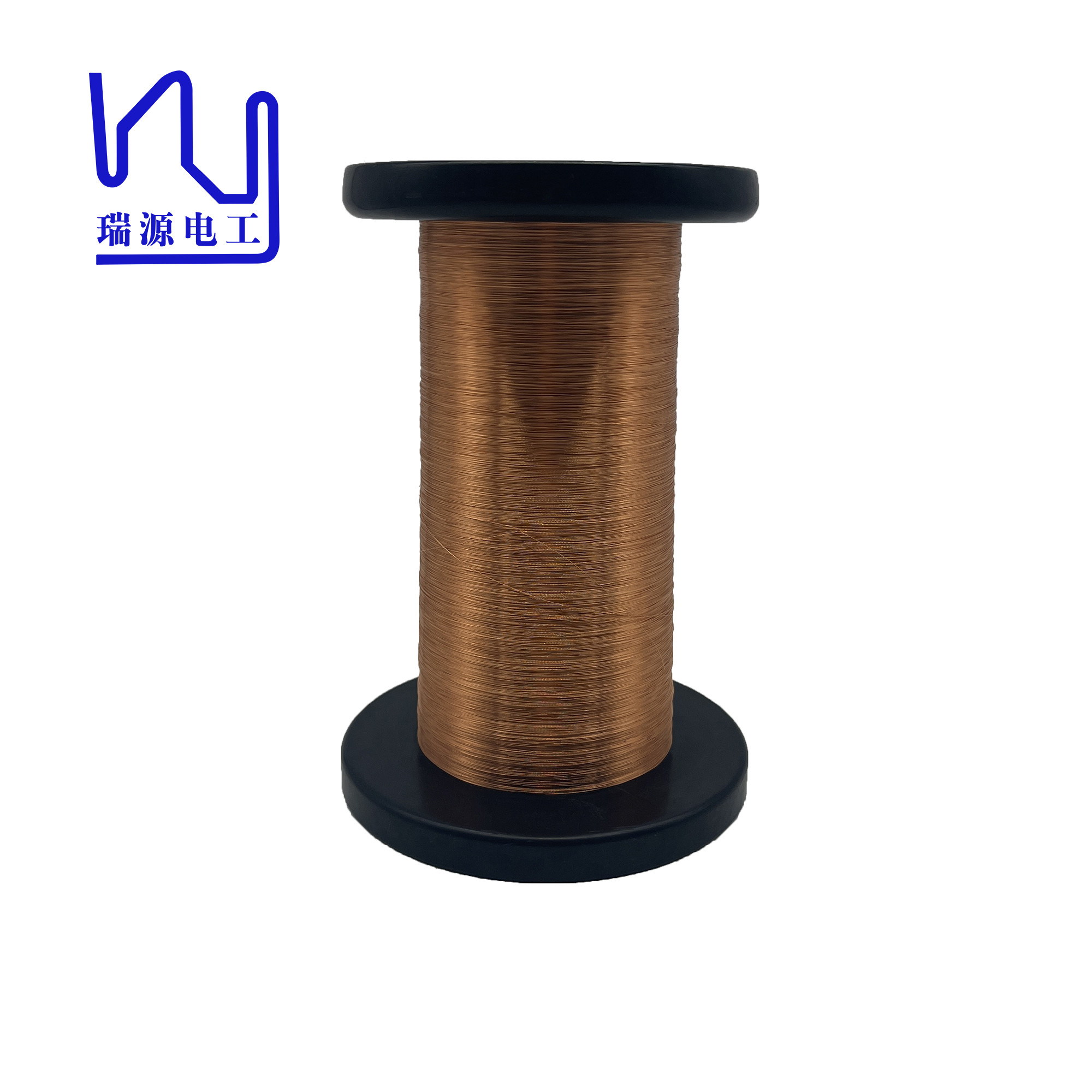

FIW4 FI5 FIW5 Class 180 High voltage FIW wire Solderable enameled Copper Wire For High Voltage Transformer
The wider selection of FIW finished outer diameters allows customers to produce smaller transformers at a lower cost. This flexibility gives manufacturers greater freedom in production, allowing them to better adapt to market demand, improve production efficiency, reduce costs, and gain greater market share.
|
Nom.Diameter(mm)
|
Min. Breakdown voltage (V) 20℃ |
|||||
|
FIW3 |
FIW4 |
FIW5 |
FIW6 |
FIW7 |
FIW8 |
|
|
0.100 |
2106 |
2673 |
3969 |
5265 |
6561 |
7857 |
|
0.120 |
2280 |
2964 |
4332 |
5700 |
7068 |
8436 |
|
0.140 |
2432 |
3192 |
4712 |
6232 |
7752 |
9272 |
|
0.160 |
2660 |
3496 |
5168 |
6840 |
8512 |
10184 |
|
0.180 |
2888 |
3800 |
5624 |
7448 |
9272 |
11096 |
|
0.200 |
3040 |
4028 |
5928 |
7828 |
9728 |
11628 |
|
0.250 |
3648 |
4788 |
7068 |
9348 |
11628 |
13908 |
|
0.300 |
4028 |
5320 |
7676 |
10032 |
12388 |
14744 |
|
0.400 |
4200 |
5530 |
7700 |
9870 |
12040 |
14210 |
