| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.4mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | FIW6 Wire 0.4mm High Voltage Class 180 Fully Insulated Copper Wire | Thermal Rating: | 180 |
|---|---|---|---|
| Diameter: | 0.4mm | Conductor Material: | Copper |
| Key Word: | FIW6 Wire 0.4mm High Voltage Class 180 Fully Insulated Copper Wire | ||
| High Light: | Copper Conductor FIW Wire,High Voltage Fully Insulated Wire,0.4mm Fully Insulated Wire |
||

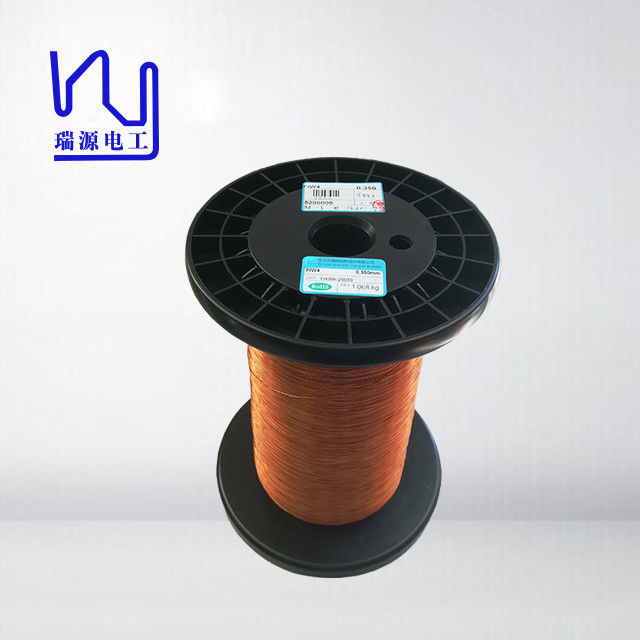

FIW6 Wire 0.4mm High voltage Class 180 Fully Insulated Copper Wire
In high voltage transformers, Fully Insulated Wire (FIW) is usually used to wind the windings.
The benefits of applying FIW include excellent insulation properties, high temperature resistance, and stability against high voltages and electromagnetic fields. These properties make FIW an excellent choice for insulation materials used in high-voltage transformers.
In addition, the design of FIW can also effectively reduce current loss and improve energy transmission efficiency, which is crucial for high-voltage transformers. FIW also helps reduce the size and weight of insulation systems while improving system reliability and durability.
| Product |
FIW4 Wire 0.3mm Fully Insulated Wire Copper Wire |
|
Key word |
FIW4 Wire 0.3mm Fully Insulated Wire Copper Wire |
| Nom.Diameter(mm) | Min. Breakdown voltage (V) 20℃ | |||||
| FIW3 | FIW4 | FIW5 | FIW6 | FIW7 | FIW8 | |
| 0.100 | 2106 | 2673 | 3969 | 5265 | 6561 | 7857 |
| 0.120 | 2280 | 2964 | 4332 | 5700 | 7068 | 8436 |
| 0.140 | 2432 | 3192 | 4712 | 6232 | 7752 | 9272 |
| 0.160 | 2660 | 3496 | 5168 | 6840 | 8512 | 10184 |
| 0.180 | 2888 | 3800 | 5624 | 7448 | 9272 | 11096 |
| 0.200 | 3040 | 4028 | 5928 | 7828 | 9728 | 11628 |
| 0.250 | 3648 | 4788 | 7068 | 9348 | 11628 | 13908 |
| 0.300 | 4028 | 5320 | 7676 | 10032 | 12388 | 14744 |
| 0.400 | 4200 | 5530 | 7700 | 9870 | 12040 | 14210 |
| 0.450 | 4480 | 5880 | 8050 | 10220 | 12390 | 14560 |
| 0.475 | 4690 | 6160 | 9030 | 11900 | 14770 | 17640 |
| 0.500 | 4690 | 6160 | 9030 | 11900 | 14770 | |
| 0.560 | 3763 | 4982 | 7155 | 9328 | 11501 | - |
| 0.600 | 3975 | 5247 | 7420 | 9593 | 11766 | - |
| 0.710 | 4240 | 5565 | 7738 | 9911 | 12084 | - |
